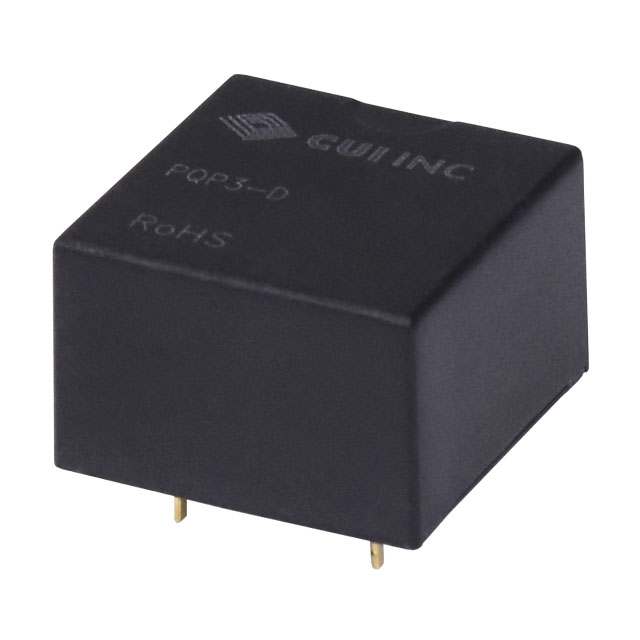

PQP3-D12 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER +/-9V 3W

Part	Efficiency	Voltage - Output 1	Type	Number of Outputs	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Voltage - Output 2	Approval Agency	Package / Case	Applications	Voltage - Isolation	Power (Watts)	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Current - Output (Max) [Max]
CUI Inc. PQP3-D12-D9-D	78 %	9 V	Isolated Module	2	Through Hole	9 mm	14 mm	0.35 in	14 mm	0.55 in	0.55 "	9 V	-9 V	CE	8-DIP Module 5 Leads	ITE (Commercial)	1.5 kV	3 W	18 V	-40 °C	85 °C	167 mA
CUI Inc. PQP3-D12-D12-M	79 %	12 V	Isolated Module	2	Surface Mount	9.1 mm	14 mm	0.36 in	14 mm	0.55 in	0.55 "	9 V	-12 V	CE	8-SMD Module 5 Leads	ITE (Commercial)	1.5 kV	3 W	18 V	-40 °C	85 °C	125 mA
CUI Inc. PQP3-D12-S24-D	81 %	24 V	Isolated Module	1	Through Hole	9 mm	14 mm	0.35 in	14 mm	0.55 in	0.55 "	9 V		CE	8-DIP Module 5 Leads	ITE (Commercial)	1.5 kV	3 W	18 V	-40 °C	85 °C		125 mA
CUI Inc. PQP3-D12-S5-M-TR	79 %	5 V	Isolated Module	1	Surface Mount	9.1 mm	14 mm	0.36 in	14 mm	0.55 in	0.55 "	9 V		CE	8-SMD Module 5 Leads	ITE (Commercial)	1.5 kV	3 W	18 V	-40 °C	85 °C		600 mA
