1634585 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

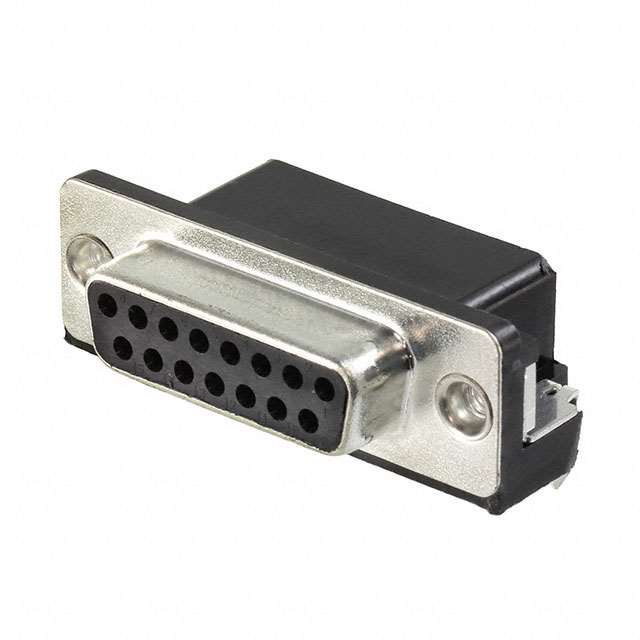

CONN D-SUB RCPT 15POS R/A SLDR
| Part | Dielectric Material | Color | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Current Rating (Amps) | Flange Feature | Flange Feature | Contact Finish | Material Flammability Rating | Number of Positions | Mounting Type | Backset Spacing | Backset Spacing | Connector Style | Connector Type | Number of Rows [custom] | Shell Size, Connector Layout | Termination | Features | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Thermoplastic | Black | 250 V | Phosphor Bronze | -55 C | 105 ░C | Signal | 5 A | Housing/Shell | 4-40 | Gold | UL94 V-0 | 15 | Right Angle Through Hole | 0.411 in | 10.43 mm | D-Sub | Receptacle Female Sockets | 2 | 2 | Solder | Board Lock | Nickel Plated Steel | 0.38 µm | 15 µin |
