105017 Series
Micro-USB B Receptacle, Bottom Mount, Surface Mount , Lead-Free, 0.70mm Tabs, TID
Manufacturer: Molex
Catalog
Micro-USB B Receptacle, Bottom Mount, Surface Mount , Lead-Free, 0.70mm Tabs, TID
Beta
⌘K
Micro-USB B Receptacle, Bottom Mount, Surface Mount , Lead-Free, 0.70mm Tabs, TID
Micro-USB B Receptacle, Bottom Mount, Surface Mount , Lead-Free, 0.70mm Tabs, TID
Micro-USB B Receptacle, Bottom Mount, Surface Mount , Lead-Free, 0.70mm Tabs, TID
| Part | Specifications | Mounting Type | Termination | Number of Contacts | Shell/Shielding Material | Mounting Feature | Mating Cycles | Current Rating (Amps) | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Features | Voltage - Rated | Gender | Number of Ports | Material Flammability Rating | Shielding | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

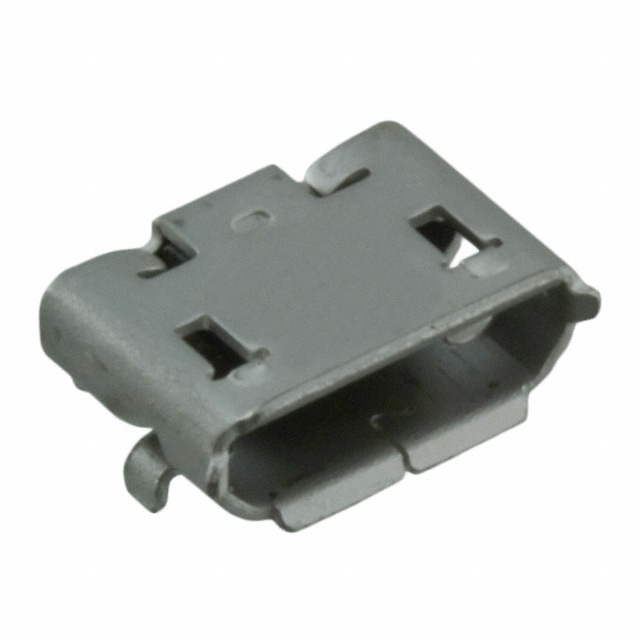

 Molex | USB 2.0 | Surface Mount Right Angle | Solder | 5 | Stainless Steel | Horizontal | 10000 | 1 A 1.8 A | Black | -30 ░C | 85 °C | USB - micro B | Pick and Place Solder Retention | 30 VAC | Receptacle | 1 | UL94 V-0 | Shielded | Gold |

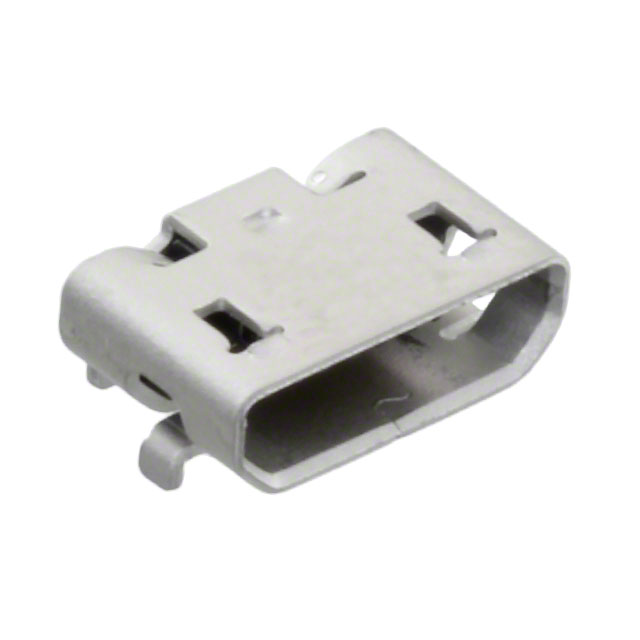

 Molex | USB 2.0 | Surface Mount Right Angle Through Hole | Solder | 5 | Stainless Steel | Horizontal | 10000 | 1 A 1.8 A | Black | -30 ░C | 85 °C | USB - micro B | Pick and Place Solder Retention | 30 VAC | Receptacle | 1 | UL94 V-0 | Shielded | Gold |
