317-072 Series
Manufacturer: EDAC Inc.
Beta
⌘K

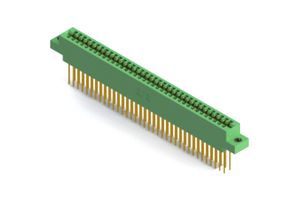

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Card Type | Termination | Contact Material | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Gender | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Features | Read Out | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Contact Type | Pitch | Pitch | Number of Positions/Bay/Row | Color | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Wire Wrap | Copper Alloy | 2 | 0.25 Ám | 10 Áin | 72 | Female | 4-40 Threaded Insert Top Mount Opening | -65 ░C | 125 °C | Card Guides | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Cantilever | 3.96 mm | 0.156 in | 36 | Green | Through Hole | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Wire Wrap | Copper Alloy | 2 | 0.25 Ám | 10 Áin | 72 | Female | Floating Bobbin Flush Mount | -65 ░C | 125 °C | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Cantilever | 3.96 mm | 0.156 in | 36 | Green | Through Hole | 0.116 " | 2.95 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Wire Wrap | Copper Alloy | 2 | 0.25 Ám | 10 Áin | 72 | Female | -65 ░C | 125 °C | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Cantilever | 3.96 mm | 0.156 in | 36 | Green | Through Hole | 0.156 " | 3.96 mm |
