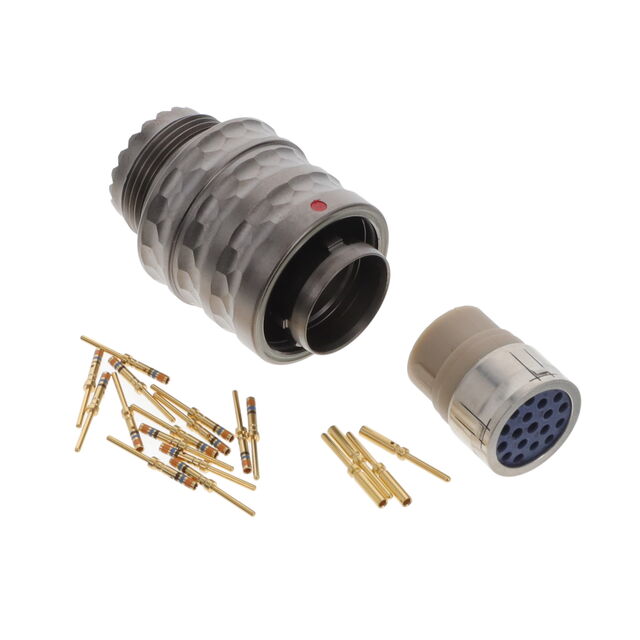

ABTAAT0-H Series
Manufacturer: ODU
Beta
⌘K
ODU AMC SERIES T BREAK-AWAY PLUG
| Part | Termination | Shell Size - Insert [custom] | Insert Material | Connector Type | Current Rating (Amps) | Mounting Type | Contact Material | Orientation | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Finish | Material Flammability Rating | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Features | Color | Fastening Type | Shielding | Shell Material | Contact Finish - Mating | Voltage Rating | Primary Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Crimp | 12 | Polyetheretherketone (PEEK) | Plug Male Pins | 5 A 7.5 A | Free Hanging (In-Line) | Copper Alloy | A | 50 µin | 1.27 µm | Tin Nickel | UL94 V-0 | IP68 IP69K | -65 ░C | 175 °C | Backshell Coupling Nut | Silver | Push-Pull | Shielded | Aluminum | Gold | 50 V | Metal | 18 | |
Crimp | 12 | Polyetheretherketone (PEEK) | Plug Male Pins | 13 A | Free Hanging (In-Line) | Copper Alloy | A | 50 µin | 1.27 µm | Tin Nickel | UL94 V-0 | IP68 IP69K | -65 ░C | 175 °C | Backshell Coupling Nut | Silver | Push-Pull | Shielded | Aluminum | Gold | 50 V | Metal | 5 |
