XHP70A Series

Catalog

LED MOD XHP70A WARM WHT SQ 2700K

Part	CRI (Color Rendering Index)	CCT (K)	CCT (K)	Type	Lens Type	Color	Current - Test	Configuration	Current - Max [Max]	Temperature - Test	Height [z]	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Viewing Angle	Size / Dimension [diameter]

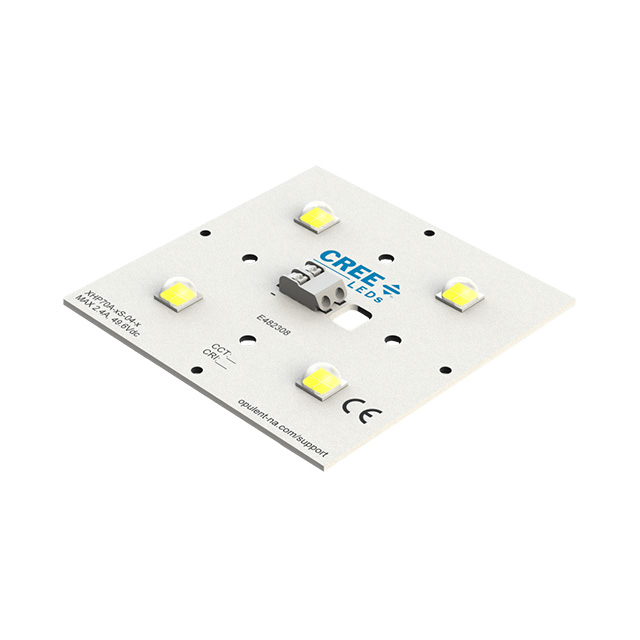

New Energy XHP70A-0S-04-0D0UJ427G	90	2700 K	3-Step MacAdam Ellipse	LED Module	Domed	Warm White	1.05 A	Square	2.4 A	85 °C	1.52 mm	46.4 V	70 mm	70 mm

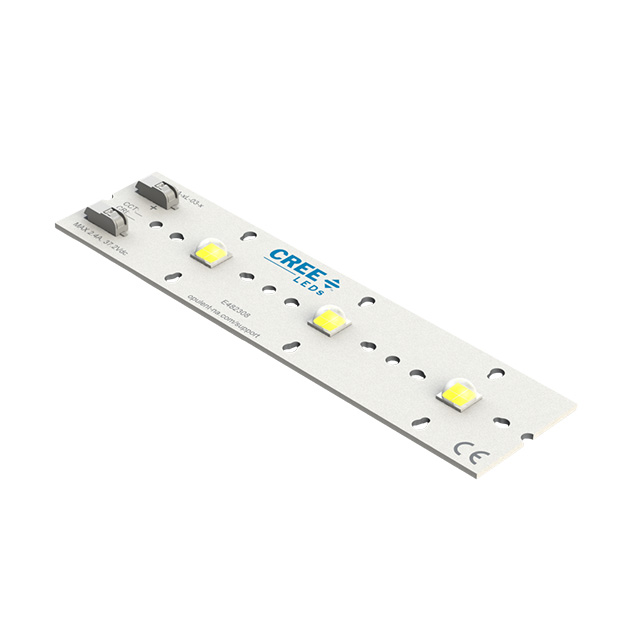

New Energy XHP70A-0L-03-0D0HN20E2	80			LED Module	Domed	White	1.05 A	Linear Light Strip	2.4 A	85 °C	1.52 mm	34.8 V	32.99 mm	5.2 in
New Energy XHP70A-0L-03-0D0HM227G	80	2700 K	3-Step MacAdam Ellipse	LED Module	Domed	Warm White	1.05 A	Linear Light Strip	2.4 A	85 °C		34.8 V	1.3 in	5.2 in	4140 lm	113 lm/W

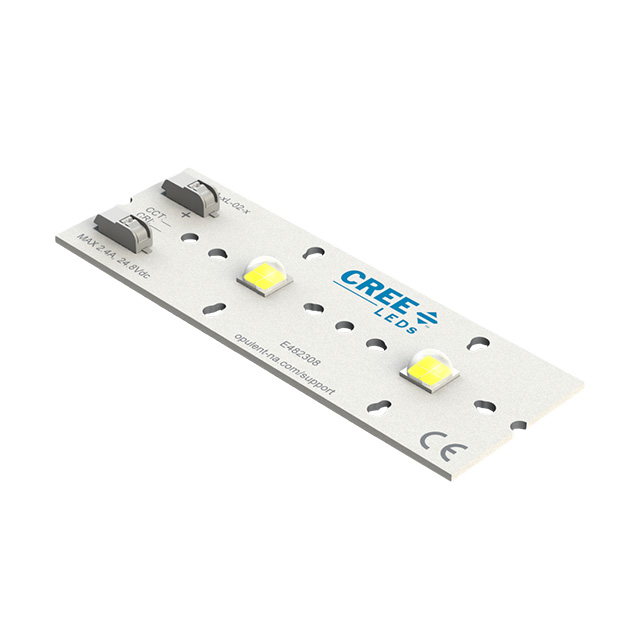

New Energy XHP70A-0L-02-0D0HN20E2	80			LED Module	Domed	White	1.05 A	Linear Light Strip	2.4 A	85 °C	1.52 mm		32.99 mm	93.98 mm

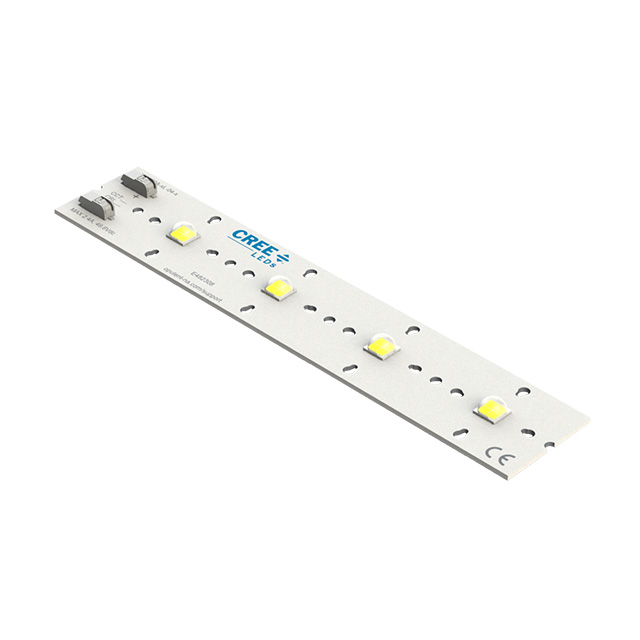

New Energy XHP70A-0L-04-0D0HM227G	80	2700 K	3-Step MacAdam Ellipse	LED Module	Domed	Warm White	1.05 A	Linear Light Strip	2.4 A	85 °C		46.4 V	1.3 in	6.7 "	5520 lm	113 lm/W

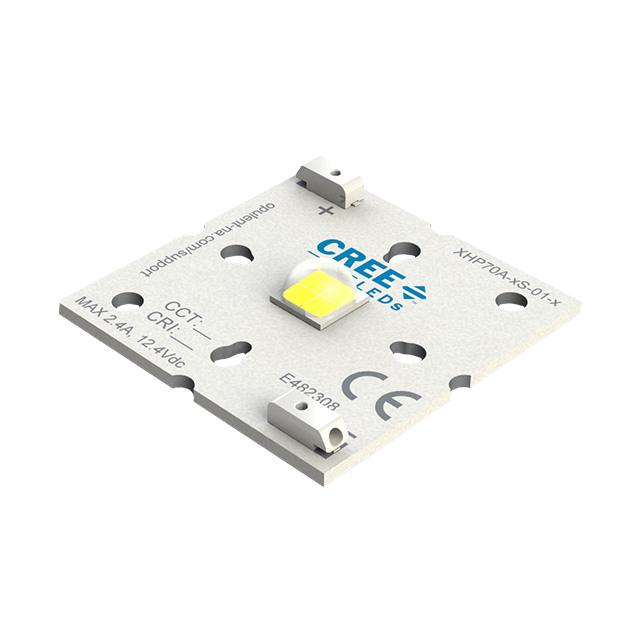

New Energy XHP70A-0S-01-0D0BN40E2	70	5700 K		LED Module	Domed	Cool White	1.05 A	Square	2.4 A	85 °C		11.6 V	36.83 mm	36.83 mm	1710 lm	140 lm/W
New Energy XHP70A-0S-01-0D0BM430E	70	3000 K	5-Step MacAdam Ellipse	LED Module	Domed	Warm White	1.05 A	Square	2.4 A	85 °C		11.6 V	36.83 mm	36.83 mm	1485 lm	122 lm/W

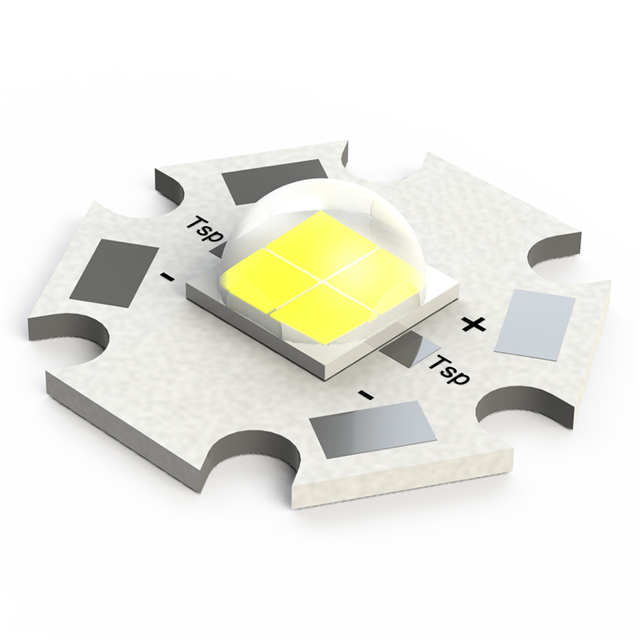

New Energy XHP70A-00-0000-0D0BN450E-SB01	70	5000 K	5-Step MacAdam Ellipse	LED Module	Domed	Cool White	1.05 A 2.1 A	Starboard	2.4 A 4.8 A	85 °C		6 V 12 V				145 lm/W	1830 lm	1710 lm	120 °	19.89 mm
New Energy XHP70A-0L-04-0D0UJ427G	90	2700 K	3-Step MacAdam Ellipse	LED Module	Domed	Warm White	1.05 A	Linear Light Strip	2.4 A	85 °C	1.52 mm	46.4 V	32.99 mm	6.7 "
New Energy XHP70A-0S-04-0D0BN240E	70	4000 K		LED Module	Domed	Neutral White	1.05 A	Square	2.4 A	85 °C		46.4 V	73.15 mm	73.15 mm	6360 lm	131 lm/W
