519 Series

Manufacturer: EDAC Inc.

Catalog

RACK & PANEL CONNECTORS RACK & PANEL CONNECTOR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Material Flammability Rating	Connector Style	Number of Positions Loaded	Termination	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Number of Columns	Number of Positions	Color	Mounting Type	Features	Connector Type	Number of Rows	Connector Usage	Contact Finish	Number of Rows [custom]

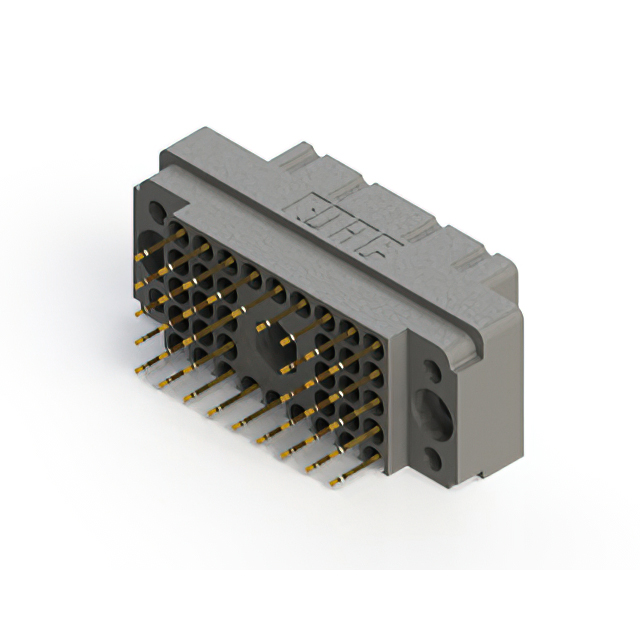

EDAC Inc. 519-036-500-400	-40 C	105 ░C	8.5 A	UL94 V-0	Rack and Panel	All	Solder Eyelet(s)	0.25 Ám	10 Áin	3.81 mm	0.15 in	9	36	Gray	Panel Mount	Guide Pin Jackscrew	Receptacle Hermaphroditic Contacts	5	Backplane	Gold

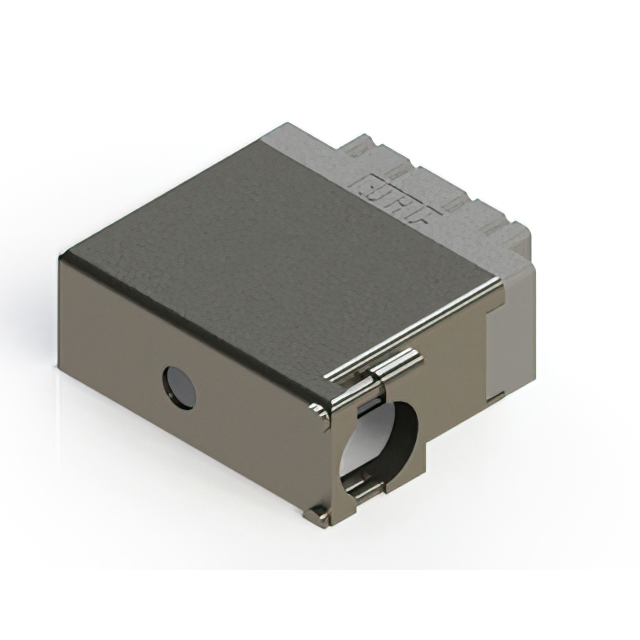

EDAC Inc. 519-036-541-456	-40 C	105 ░C	8.5 A	UL94 V-0	Rack and Panel	All	Wire Wrap	0.25 Ám	10 Áin	3.81 mm	0.15 in	9	36	Gray	Free Hanging (In-Line)	Guide Pin Jackscrew	Receptacle Hermaphroditic Contacts	5	Backplane	Gold
EDAC Inc. 519-014-500-352					Rack and Panel	All	Solder Eyelet(s)	0.25 Ám	10 Áin	3.81 mm	0.15 in	6	14	Gray	Free Hanging (In-Line)	Backshell Guide Pin Jackscrew Socket	Plug Hermaphroditic Contacts		Backplane	Gold	3

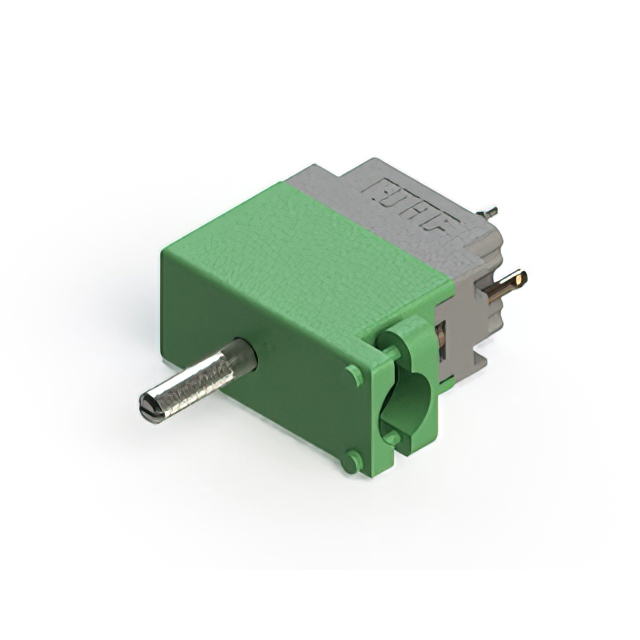

EDAC Inc. 519-014-520-321	-40 C	105 ░C	8.5 A	UL94 V-0	Rack and Panel	All	Solder	0.25 Ám	10 Áin	3.81 mm	0.15 in	6	14	Gray	Free Hanging (In-Line)	Guide Pin Jackscrew	Plug Hermaphroditic Contacts		Backplane	Gold	3
EDAC Inc. 519-014-500-300					Rack and Panel	All	Solder Eyelet(s)	0.25 Ám	10 Áin	3.81 mm	0.15 in	6	14	Gray	Panel Mount	Guide Pin Jackscrew	Plug Hermaphroditic Contacts		Backplane	Gold	3
EDAC Inc. 519-014-500-406					Rack and Panel	All	Solder Eyelet(s)	0.25 Ám	10 Áin	3.81 mm	0.15 in	6	14	Gray	Panel Mount	Jackscrew Socket	Receptacle Hermaphroditic Contacts		Backplane	Gold	3

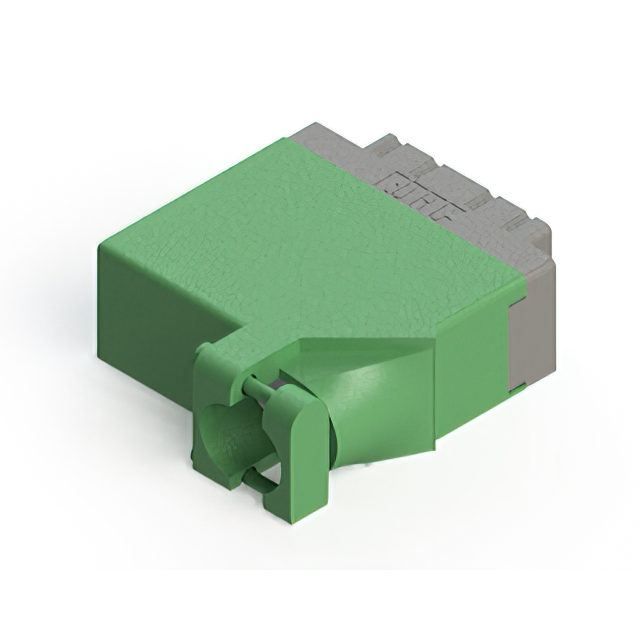

EDAC Inc. 519-036-541-416	-40 C	105 ░C	8.5 A	UL94 V-0	Rack and Panel	All	Wire Wrap	0.25 Ám	10 Áin	3.81 mm	0.15 in	9	36	Gray	Free Hanging (In-Line)	Guide Pin Jackscrew	Receptacle Hermaphroditic Contacts	5	Backplane	Gold

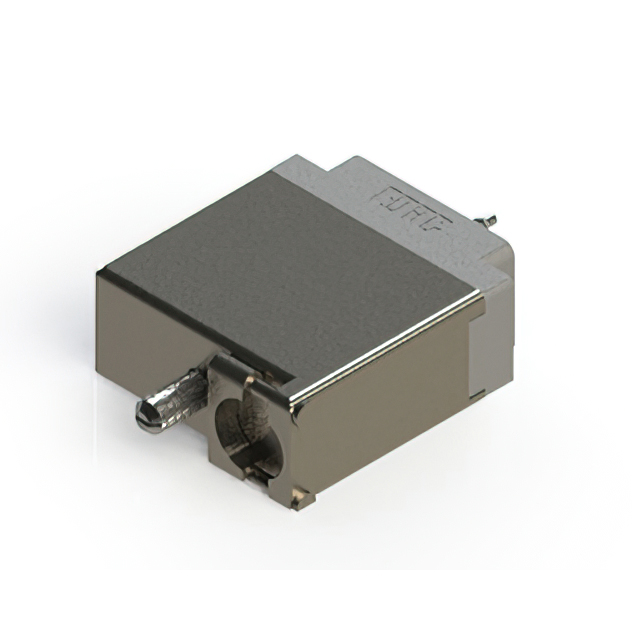

EDAC Inc. 519-036-542-365	-40 C	105 ░C	8.5 A	UL94 V-0	Rack and Panel	All	Wire Wrap	0.25 Ám	10 Áin	3.81 mm	0.15 in	9	36	Gray	Free Hanging (In-Line)	Guide Pin Jackscrew	Plug Hermaphroditic Contacts	5	Backplane	Gold
EDAC Inc. 519-036-540-361					Rack and Panel	All	Wire Wrap	0.25 Ám	10 Áin	3.81 mm	0.15 in	9	36	Gray	Free Hanging (In-Line)	Guide Pin Jackscrew	Plug Hermaphroditic Contacts	5	Backplane	Gold

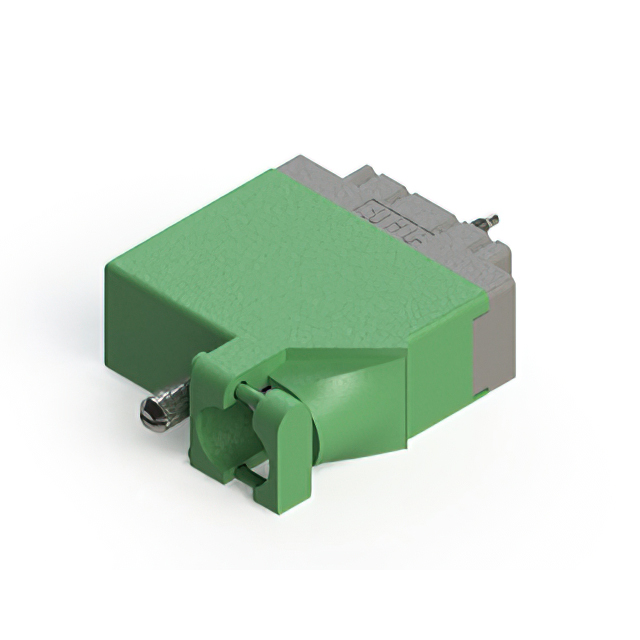

EDAC Inc. 519-036-542-415	-40 C	105 ░C	8.5 A	UL94 V-0	Rack and Panel	All	Wire Wrap	0.25 Ám	10 Áin	3.81 mm	0.15 in	9	36	Gray	Free Hanging (In-Line)	Guide Pin Jackscrew	Receptacle Hermaphroditic Contacts	5	Backplane	Gold
