D2QW Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION SUBMINI BASIC
| Part | Overtravel [custom] | Overtravel [custom] | Mounting Type | Operating Force | Circuit | Switch Function | Actuator Type | Termination Style | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Operating Position | Operating Position | Mechanical Life | Voltage Rating - DC | Electrical Life | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | |||||||||||||||||
Omron Electronics Inc-EMC Div | |||||||||||||||||
Omron Electronics Inc-EMC Div | |||||||||||||||||
Omron Electronics Inc-EMC Div | |||||||||||||||||
 Omron Electronics Inc-EMC Div | 0.115 " | 2.9 mm | Chassis Mount | 153 gf | SPST-NC | On-Mom | Round (Pin Plunger) | Solder Lug | IP67 - Dust Tight Waterproof | 85 °C | -40 C | 8.7 mm | 0.343 in | 500000 Cycles | 30 V | 200000 Cycles | 100 mA |
Omron Electronics Inc-EMC Div | |||||||||||||||||
Omron Electronics Inc-EMC Div | |||||||||||||||||
Omron Electronics Inc-EMC Div | 0.115 " | 2.9 mm | Chassis Mount | 153 gf | SPST-NC | On-Mom | Round (Pin Plunger) | Cable Leads | IP67 - Dust Tight Waterproof | 85 °C | -40 C | 8.7 mm | 0.343 in | 500000 Cycles | 30 V | 200000 Cycles | 100 mA |
Omron Electronics Inc-EMC Div | 0.106 " | 2.7 mm | Chassis Mount | 153 gf | SPST-NO | Off-Mom | Round (Pin Plunger) | Solder Lug | IP67 - Dust Tight Waterproof | 85 °C | -40 C | 8.4 mm | 0.33 in | 500000 Cycles | 30 V | 200000 Cycles | 100 mA |

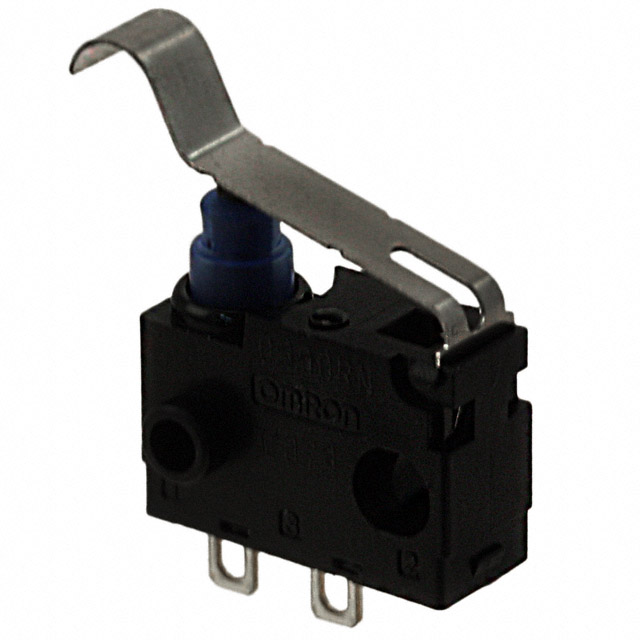

 Omron Electronics Inc-EMC Div | 0.138 " | 3.5 mm | Chassis Mount | 153 gf | SPST-NO | Off-Mom | Lever Simulated Roller | Solder Lug | IP67 - Dust Tight Waterproof | 85 °C | -40 C | 12 mm | 0.472 in | 500000 Cycles | 30 V | 200000 Cycles | 100 mA |
