PMP400 Series
Manufacturer: TT Electronics/BI
Beta
⌘K

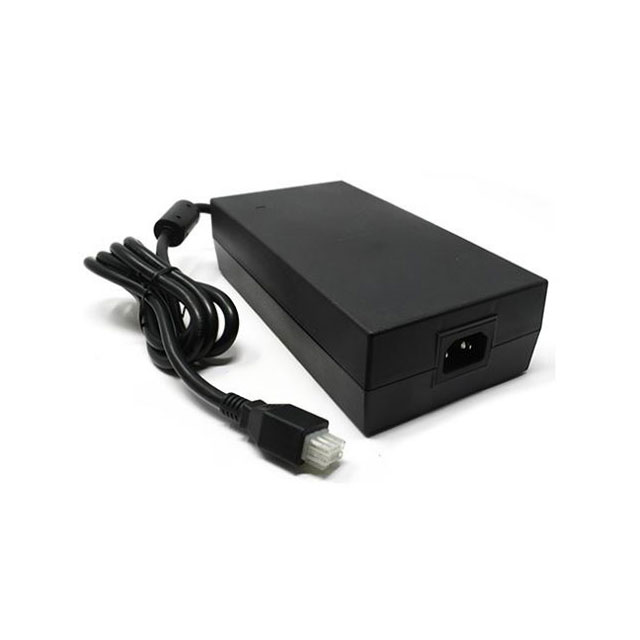

MEDICAL DESKTOP POWER SUPPLY 48V 400 WATT
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Region Utilized | Power (Watts) | Voltage - Output | Approval Agency | Input Connector | Form | Voltage - Input [Max] | Voltage - Input [Min] | Output Connector | Cord Length | Cord Length | Input Type | Applications | Standard Number | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Output Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | 4.72 in | 9.84 in | 119.9 mm | 49.3 mm | 1.94 " | 249.9 mm | International | 400 W | 48 V | CB CE cURus | IEC 320-C14 | Desktop (Class I) | 264 VAC | 90 VAC | Rectangular 8 Position | 36 in | 0.91 m | Cord (Sold Separately) | Household Appliances ITE (Commercial) | 60601-1 | 89 % | -10 °C | 60 °C | ||
 TT Electronics/BI | 4.72 in | 9.84 in | 119.9 mm | 49.3 mm | 1.94 " | 249.9 mm | International | 400 W | 24 V | CE cURus TUV | IEC 320-C14 | Desktop (Class I) | 264 VAC | 90 VAC | Rectangular | 36 in | 0.91 m | Cord (Sold Separately) | Medical | 60601-1 | 89 % | -10 °C | 60 °C | 16.67 A | 6 Position |
