CGS TLRF Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TLRF 2512 2.0W R030 1% 50PPM 4K RL

Part	Features	Package / Case	Supplier Device Package	Number of Terminations [custom]	Tolerance	Resistance	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
TE Connectivity AMP Connectors TLRF3A20DR030FTE	Current Sense	2512 (6432 Metric)	2512	2	1 %	0.03 Ohms	2 W	170 °C	-55 C	50 ppm/░C	0.95 mm	0.037 in
TE Connectivity AMP Connectors TLRF3A20DR013FTE	Current Sense	2512 (6432 Metric)	2512	2	1 %	13 mOhms	2 W	170 °C	-55 C	50 ppm/░C	0.95 mm	0.037 in

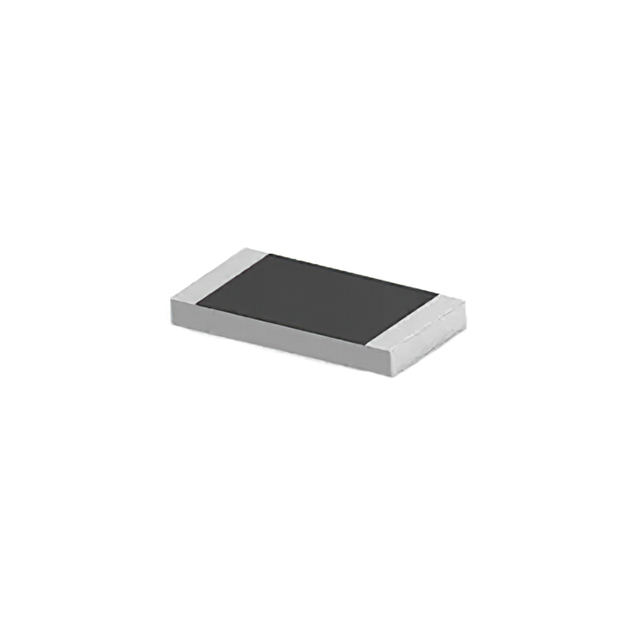

TE Connectivity AMP Connectors TLRF2B10DR022FTD	Current Sense	1206 (3216 Metric)		2	1 %	22 mOhms	1 W	170 °C	-55 C	50 ppm/░C			0.035 in	0.9 mm	1206	0.063 "	0.126 "	3.2 mm	1.6 mm
TE Connectivity AMP Connectors TLRF3A20DR010FTE	Current Sense	2512 (6432 Metric)	2512	2	1 %	10 mOhms	2 W	170 °C	-55 C	50 ppm/░C	0.95 mm	0.037 in

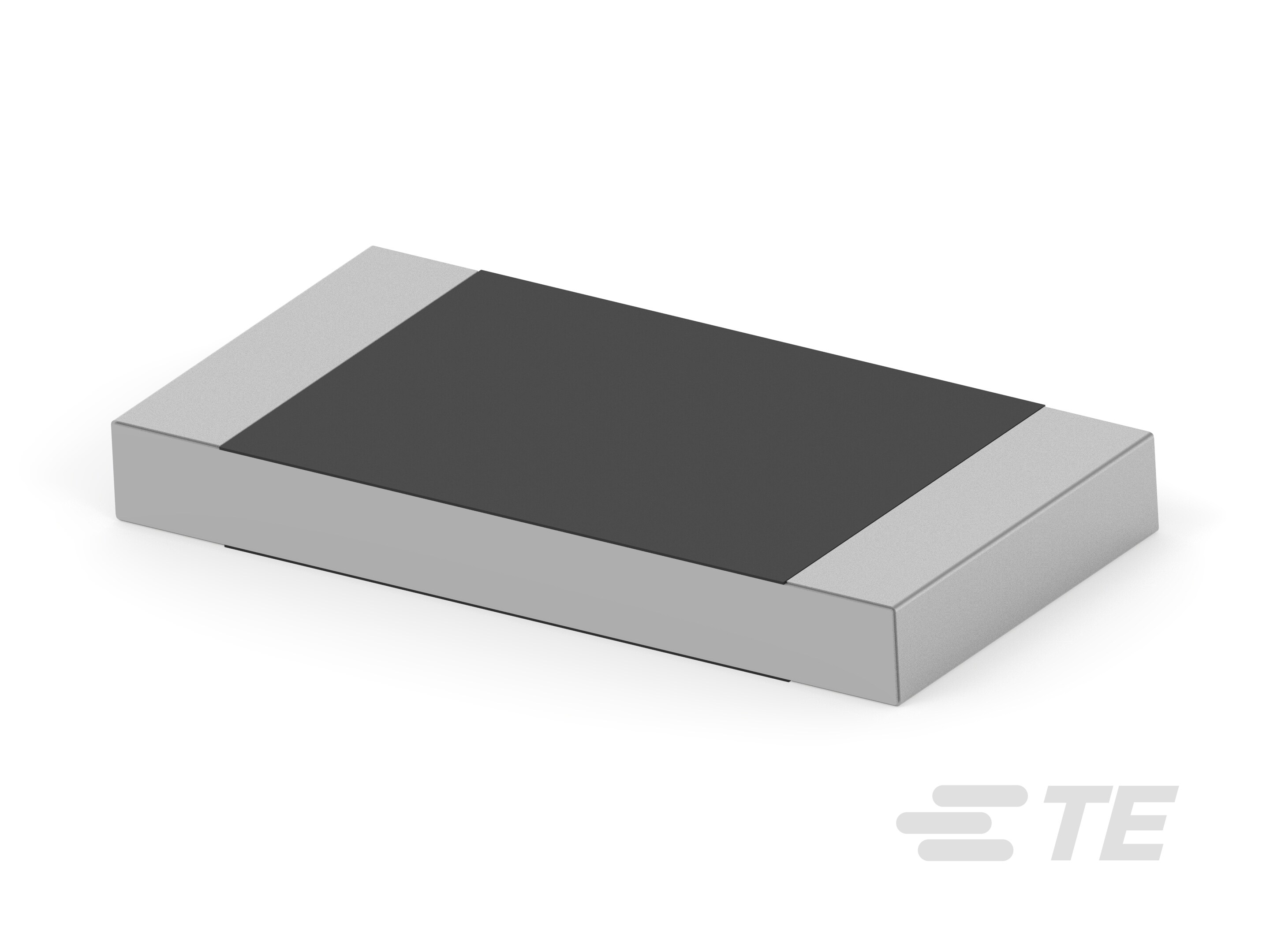

TE Connectivity AMP Connectors TLRF3A20DR033FTE	Current Sense	2512 (6432 Metric)	2512	2	1 %	33 mOhms	2 W	170 °C	-55 C	50 ppm/░C	0.95 mm	0.037 in
TE Connectivity AMP Connectors TLRF3A20DR062FTE
TE Connectivity AMP Connectors TLRF3A20DR018FTE	Current Sense	2512 (6432 Metric)	2512	2	1 %	18 mOhms	2 W	170 °C	-55 C	50 ppm/░C	0.95 mm	0.037 in

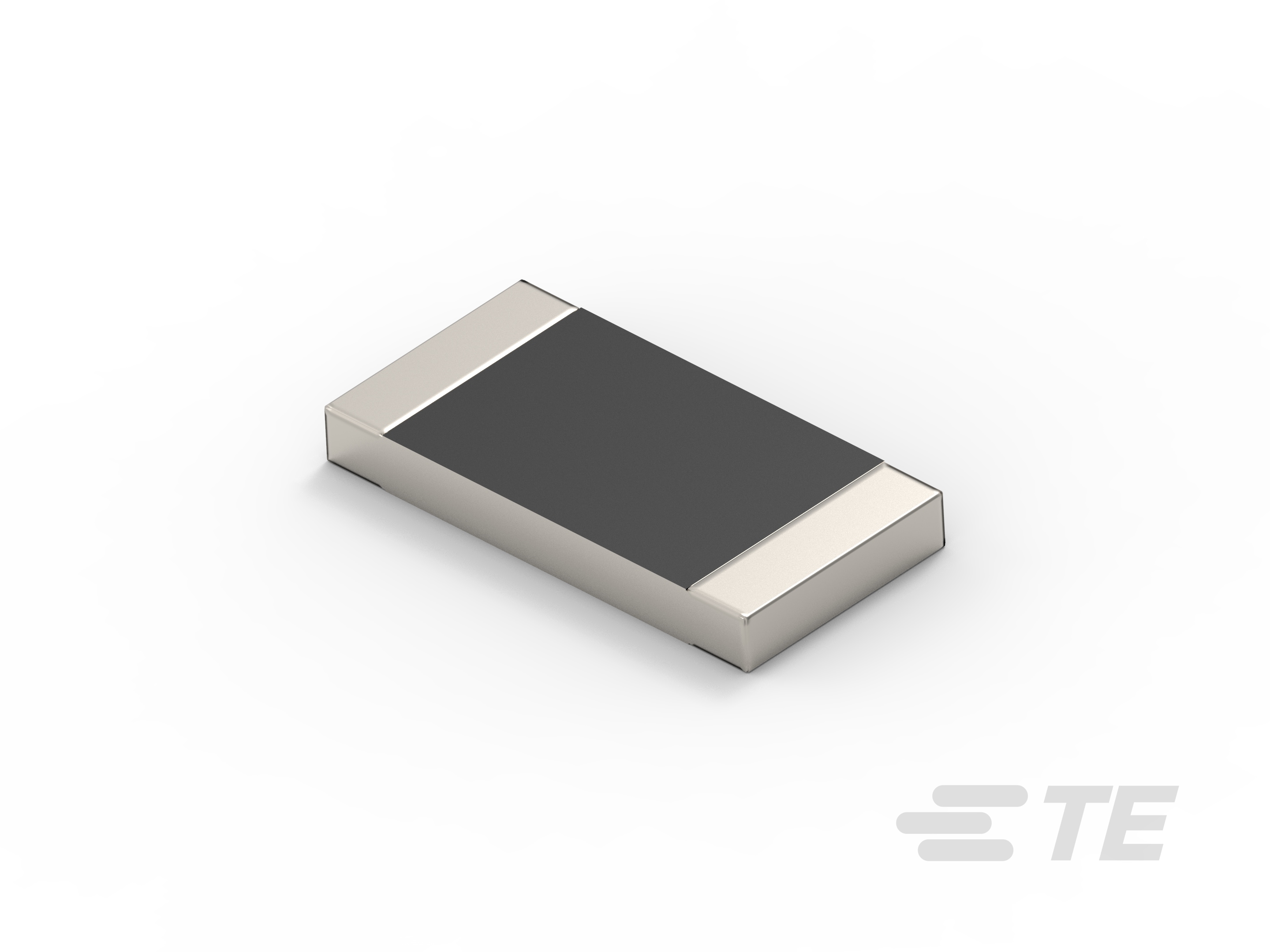

TE Connectivity AMP Connectors TLRF3A20DR011FTE	Current Sense	2512 (6432 Metric)	2512	2	1 %	11 mOhms	2 W	170 °C	-55 C	50 ppm/░C	0.95 mm	0.037 in
TE Connectivity AMP Connectors TLRF2B10DR018FTD	Current Sense	1206 (3216 Metric)		2	1 %	18 mOhms	1 W	170 °C	-55 C	50 ppm/░C			0.035 in	0.9 mm	1206	0.063 "	0.126 "	3.2 mm	1.6 mm
TE Connectivity AMP Connectors TLRF3A20DR020FTE	Current Sense	2512 (6432 Metric)	2512	2	1 %	0.02 Ohms	2 W	170 °C	-55 C	50 ppm/░C	0.95 mm	0.037 in
