DEUTSCH HD10 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

BKSHL, 9SZ, CBL SZ .187-.300, HD10

Part	Primary Material	Shielding	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Exit	Material	Shell Size - Insert	Color	Ingress Protection	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Cable Opening	Note	Contact Shape	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Mounting Type	Contact Size [custom]	Contact Type	Housing Color	Shell Material	Orientation	Fastening Type	Connector Type	Number of Positions	Material Flammability Rating	Includes	For Use With/Related Products	Cable Opening	Features	Thread Size	Accessory Type	Contact Size	Shell Size - Insert	Mounting Feature
TE Connectivity AMP Connectors M902-2191	Plastic	Unshielded	4.75 mm	0.187 "	0.3 "	7.62 mm	180 °	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	9	Black	IP68 IP69K	39.12 mm	1.54 in	Backshell
TE Connectivity AMP Connectors M902-2132	Plastic	Unshielded		0.3 in	0.43 in		180 °	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	3 TPI	Black		30.38 mm	1.196 "	Backshell	7.62 mm 10.92 mm
TE Connectivity AMP Connectors HD14-5-16P	Plastic	Unshielded									IP68 IP6K9K			For Male Pins		Contacts Not Included	Circular	Glass Filled Nylon Polyamide (PA)	-55 C	125 °C	16	5	Free Hanging (In-Line)	5 16	Crimp	Gray	Glass Filled Nylon Polyamide (PA)	Keyed	Bayonet Lock	Receptacle Housing	5	UL94 V-0

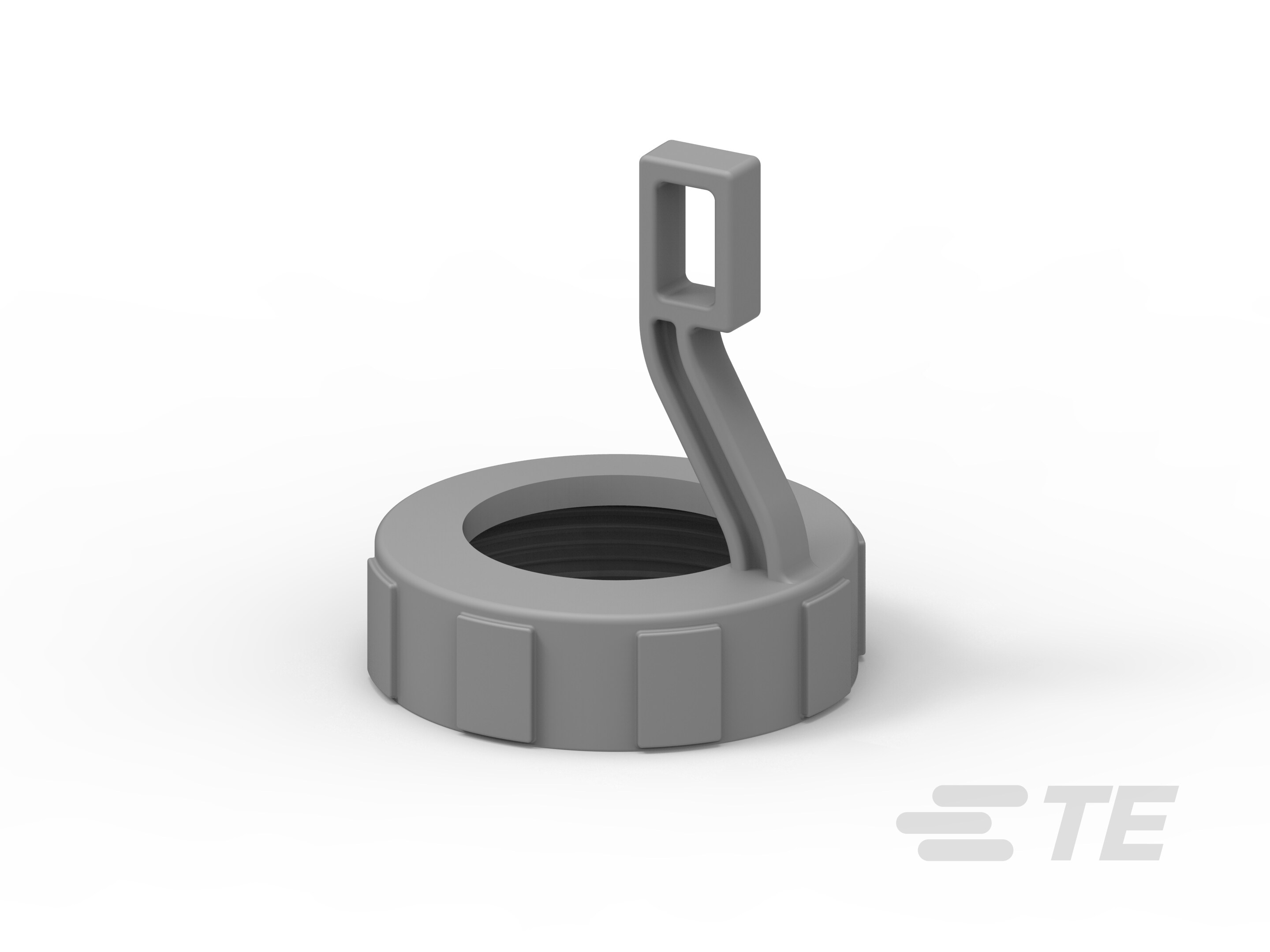

TE Connectivity AMP Connectors HD18-009		Unshielded					180 °	Plastic	9	Gray		41.28 mm	1.625 in	Backshell	39.88 mm																		1 pc - 1 Backshell	HD10 Rear Threaded Connector	1.57 in	Tie Wrap Holder	1 3/8-18 UNEF-2B

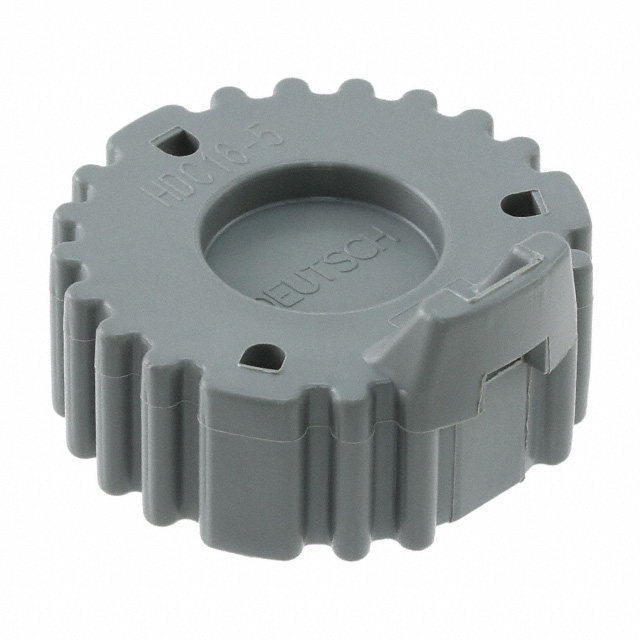

TE Connectivity AMP Connectors HDC16-5								Plastic	5	Gray																								HD10 Series Receptacle				Cap (Cover) Protective
TE Connectivity AMP Connectors HD14-9-16P		Unshielded									IP68 - Dust Tight Waterproof			For Male Pins							16	9	Free Hanging (In-Line)		Crimp	Gray	Plastic	Keyed	Bayonet Lock	Receptacle Housing	9	UL94 V-1							16
TE Connectivity AMP Connectors HD10-9-96P-B009		Unshielded									IP68 - Dust Tight Waterproof			For Male Pins									Panel Mount		Crimp	Gray	Plastic	Keyed	Bayonet Lock	Receptacle Housing	9	UL94 V-1							16	9-96	Flange
TE Connectivity AMP Connectors M902-2042								Polybutylene Terephthalate (PBT)	3 TPI 6 9	Black																								HD10 Series				Compression Nut
TE Connectivity AMP Connectors HD14-9-96P		Unshielded									IP68 - Dust Tight Waterproof			For Male Pins									Free Hanging (In-Line)		Crimp	Gray	Plastic	Keyed	Bayonet Lock	Receptacle Housing	9	UL94 V-1							16	9-96

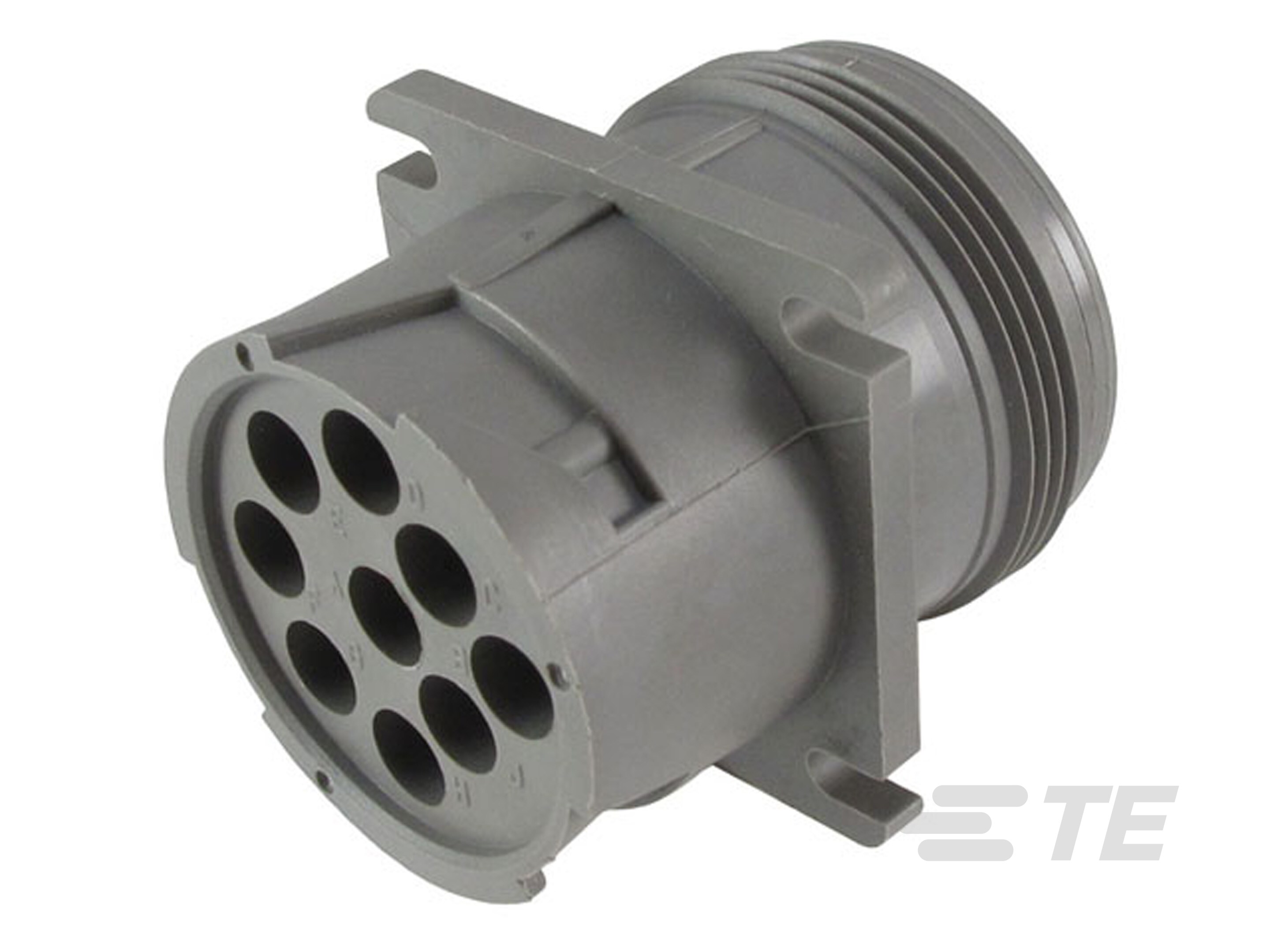

TE Connectivity AMP Connectors HD10-9-96PE		Unshielded									IP68 - Dust Tight Waterproof			For Male Pins									Panel Mount		Crimp	Gray	Plastic	Keyed	Bayonet Lock	Receptacle Housing	9	UL94 V-1							16	9-96	Flange
