SA16304 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

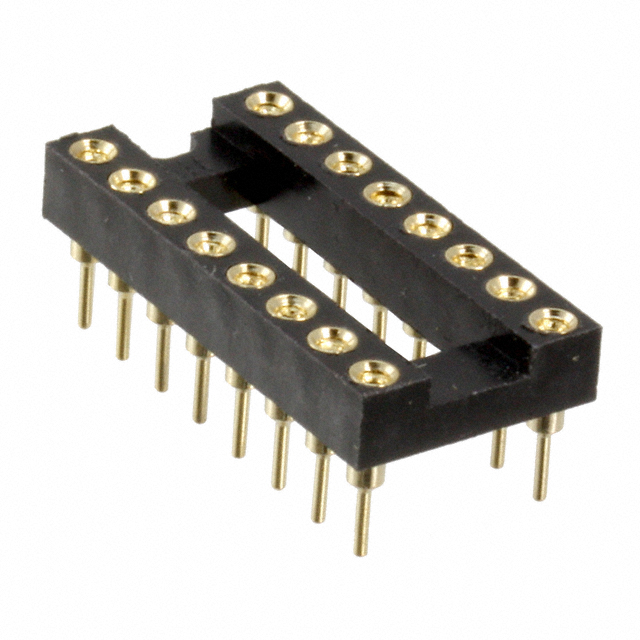

CONN IC DIP SOCKET 16POS GOLD
| Part | Contact Resistance | Material Flammability Rating | Current Rating (Amps) | Contact Material - Post [custom] | Mounting Type | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Termination | Type | Type | Type | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Mating | Housing Material | Features | Contact Finish - Post | Pitch - Post | Pitch - Post | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 4 mOhm | UL94 V-0 | 3 A | Brass | Through Hole | Gold | -40 C | 105 ░C | Flash | Solder | 7.62 mm | 0.3 in | DIP | 2 | 16 | 8 | 2.03 µm | 80 µin | Beryllium Copper | Glass Filled Polyester Thermoplastic | Open Frame | Gold | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm |
