925667 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

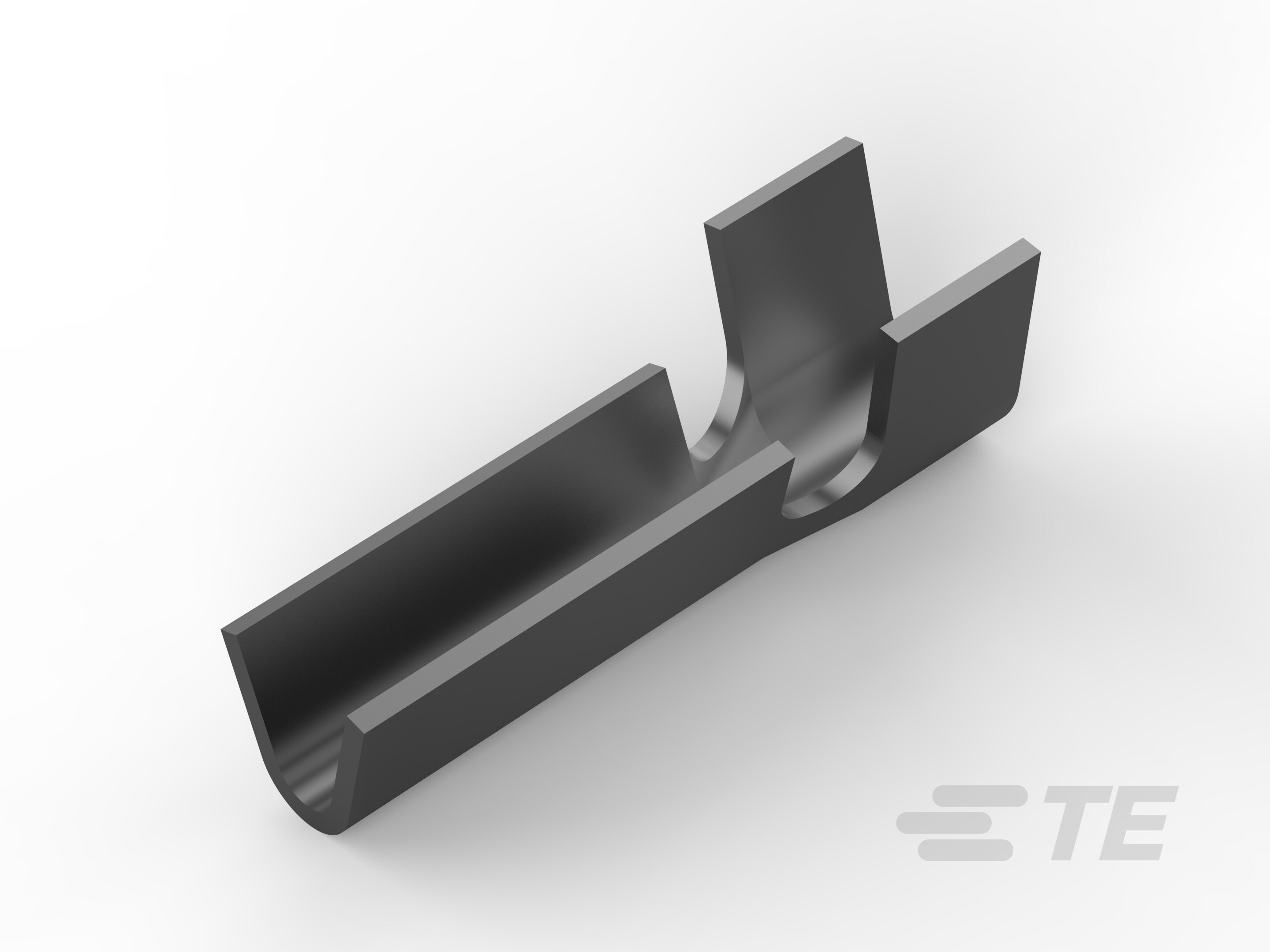

CRIMP TERMINAL 18-22AWG BRASS M 10.9MM TIN REEL
| Part | Contact Material | Length - Termination [x] | Length - Termination [x] | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Pin Diameter [diameter] | Pin Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Length - Pin | Length - Pin | Insulation | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass | 2.5 mm | 0.098 in | Tin | 22 AWG | 17.5 AWG | 0.098 in 2.5 mm | 0.079 in 2 mm | 0.078 in | 1.98 mm | 10.9 mm | 0.429 in | 7 mm | 0.276 in | Non-Insulated | Crimp |
