EKMB Series

Catalog

BOARD MOUNT MOTION & POSITION SENSORS 6UA PEARL WH DIGI HI SENS WIDE AREA

Part	Sensor Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Trigger Type	Output Type	Features	Sensing Distance	Sensing Distance	Sensing Distance	Voltage - Supply [Max]	Voltage - Supply [Min]
Panasonic Electronic Components EKMB4308113K	Motion PIR (Passive Infrared) Pyroelectric	Module	-20 ░C	60 °C	Internal	Digital	Pearl White Wide Area Lens	12 ft	3.5 m	144 in	4 V	2.3 V

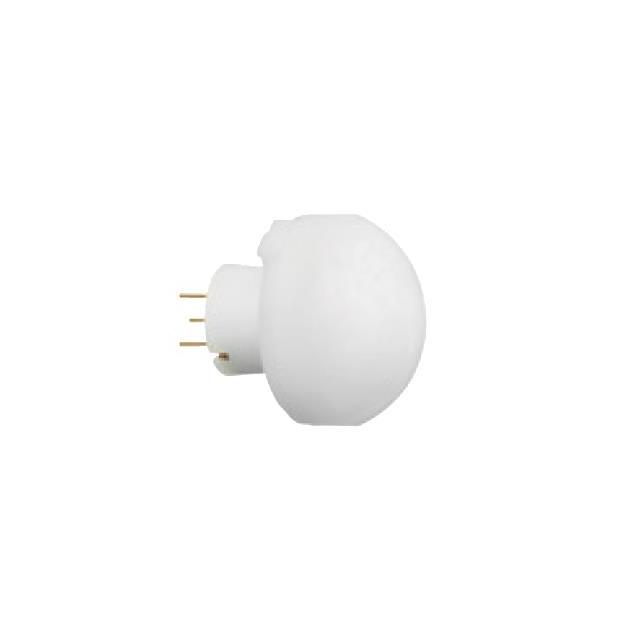

Panasonic Electronic Components EKMB4304113K	Motion PIR (Passive Infrared) Pyroelectric	Module	-20 ░C	60 °C	Internal	Digital	Pearl White Wall Installation Lens			55.8 ft 669 in	4 V	2.3 V
Panasonic Electronic Components EKMB1109111	Motion PIR (Passive Infrared) Pyroelectric	Module	-20 ░C	60 °C	Internal	Digital	Ultra Slight Motion Lens White			4.1 m 13.5 ft 161 in	4 V	2.3 V
Panasonic Electronic Components EKMB1311112K	PIR (Passive Infrared)	Module	-20 ░C	60 °C	Internal	Digital	Black Ultra Wide and Long Distance Lens	15 m	49.2 '	590.55 "	4 V	2.3 V

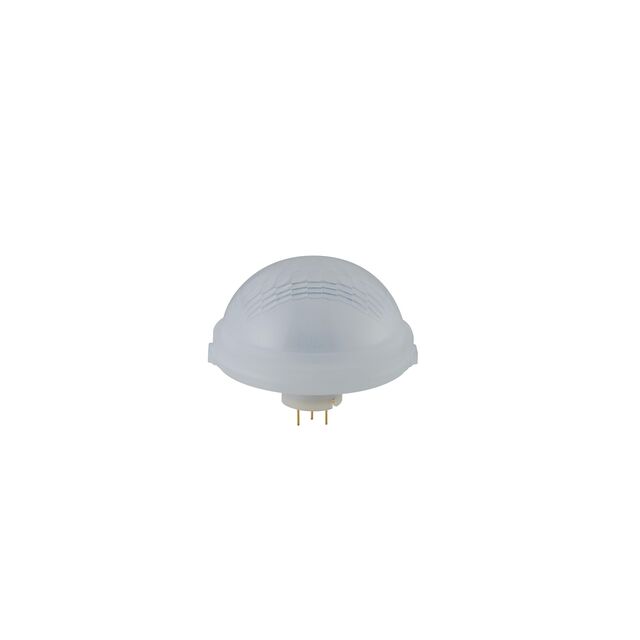

Panasonic Electronic Components EKMB1111111	PIR (Passive Infrared)	Module	-20 ░C	60 °C	Internal	Digital	Ultra Wide and Long Distance Lens White	15 m	49.2 '	590.55 "	4 V	2.3 V
Panasonic Electronic Components EKMB4303112K	Motion PIR (Passive Infrared) Pyroelectric	Module	-20 ░C	60 °C	Internal	Digital	Black Long Distance Lens			55.8 ft 669 in	4 V	2.3 V
Panasonic Electronic Components EKMB4301111K	Motion PIR (Passive Infrared) Pyroelectric	Module	-20 ░C	60 °C	Internal	Digital	Standard Lens White	276 "	23 '		4 V	2.3 V
