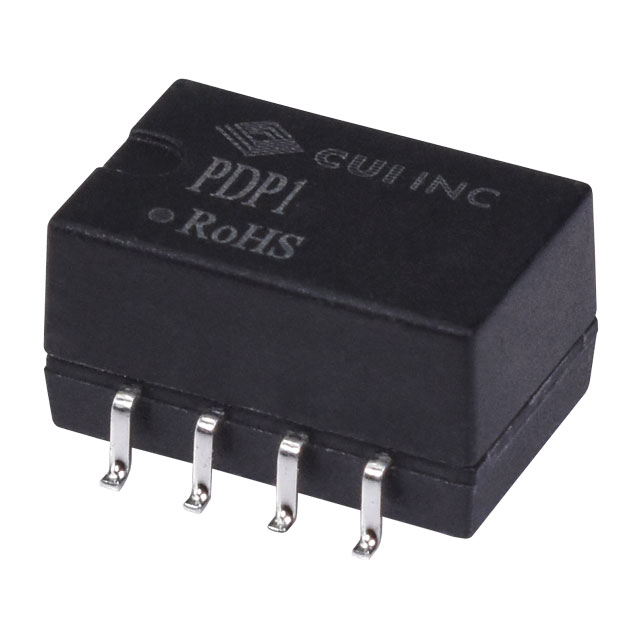

PDP1-S5 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 9V 1W
| Part | Voltage - Input (Max) [Max] | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Isolation | Efficiency | Standard Number | Number of Outputs | Voltage - Output 1 | Applications | Type | Current - Output (Max) [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 5.5 V | CB Scheme EN IEC UL | 105 C | -40 °C | 4.5 V | Surface Mount | 7.3 mm | 0.33 " | 0.52 in | 8.5 mm | 0.29 in | 13.2 mm | 1.5 kV | 83 % | 55024 55032 Class A 62368-1 | 1 | 9 V | ITE (Commercial) | Isolated Module | 111 mA | 8-SMD Module |
