MDS-150 Series
Manufacturer: Delta Electronics
Beta
⌘K

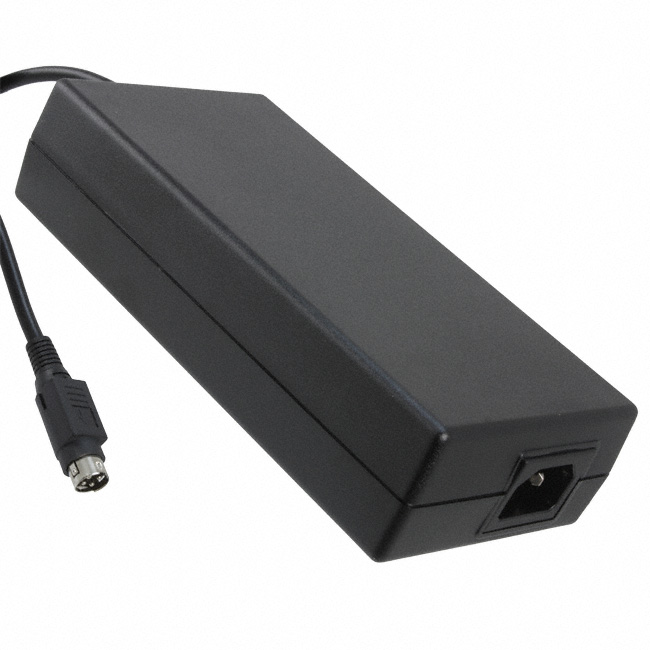

PLUG-IN ADAPTER SINGLE-OUT 24V 6.25A 150W CARTON
| Part | Weight | Weight | Voltage - Input [Max] | Voltage - Input [Min] | Standard Number | Approval Agency | Form | Output Connector | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Cord Length | Cord Length | Input Connector | Applications | Input Type | Power (Watts) | Current - Output (Max) [Max] | Efficiency | No Load Power Consumption | Voltage - Output | Region Utilized |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 1.7 lbs | 771.1 g | 264 VAC | 90 VAC | 50581 55011 55032 60601-1 60950-1 | CB Scheme CE EN UL | Desktop (Class I) | Power DIN 4 Pin | 40 °C | 0 °C | 1.57 " | 40 mm | 6.69 in | 3.35 in | 170 mm | 85 mm | 1.2 m | 47.2 in | IEC 320-C14 | ITE (Commercial) Medical | Cord (Sold Separately) | 150 W | 6.25 A | Level VI | 500 mW | 24 V | International |
Delta Electronics | 1.7 lbs | 771.1 g | 264 VAC | 90 VAC | 50581 55011 55032 60601-1 60950-1 | CB Scheme CE EN UL | Desktop (Class I) | Power DIN 4 Pin | 40 °C | 0 °C | 1.57 " | 40 mm | 6.69 in | 3.35 in | 170 mm | 85 mm | 1.2 m | 47.2 in | IEC 320-C14 | ITE (Commercial) Medical | Cord (Sold Separately) | 120 W | 10 A | Level VI | 500 mW | 12 V | International |
