WR9HI500 Series

Catalog

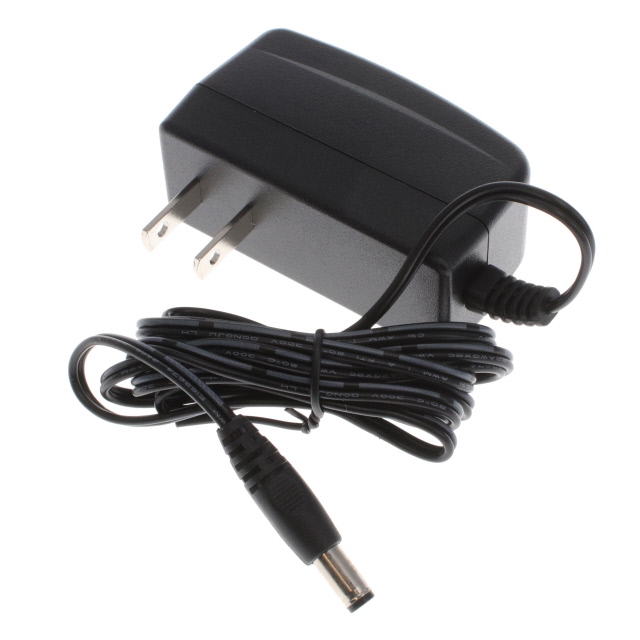

AC/DC WALL MOUNT ADAPTER 24V 12W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Input Type	Current - Output (Max) [Max]	Output Connector [x]	Output Connector [diameter]	Output Connector	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Efficiency	Polarization	Form	Input Connector	No Load Power Consumption	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output	Standard Number	Region Utilized	Cord Length	Cord Length	Applications
GlobTek, Inc. WR9HI500CCP-F(R6B)	50 °C	0 °C	CB cULus EAC LPS PSE UkrSEPRO VCCI	Fixed Blade	500 mA	11 mm	2.1 mm 5.5 mm	Barrel Plug	264 VAC	90 VAC	12 W	CoC Tier 2 Level VI	Positive Center	Wall Mount	NEMA 1-15P	75 mW	1.13 "	2.72 in	69 mm	57.3 mm	28.8 mm	2.26 in	24 V	60950-1	North America	1.5 m	59 in	ITE (Commercial)
