PE4562 Series

Catalog

2.4(F) FLD RPL 2HOLE 0.020" PIN

Part	Dielectric Material	Body Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Shield Termination	Contact Termination	Features	Mounting Type	Frequency - Max [Max]	Housing Color	Connector Style [x]	Connector Style	Connector Style	Impedance	Mounting Feature	Number of Ports	Fastening Type	Connector Type	Center Contact Material

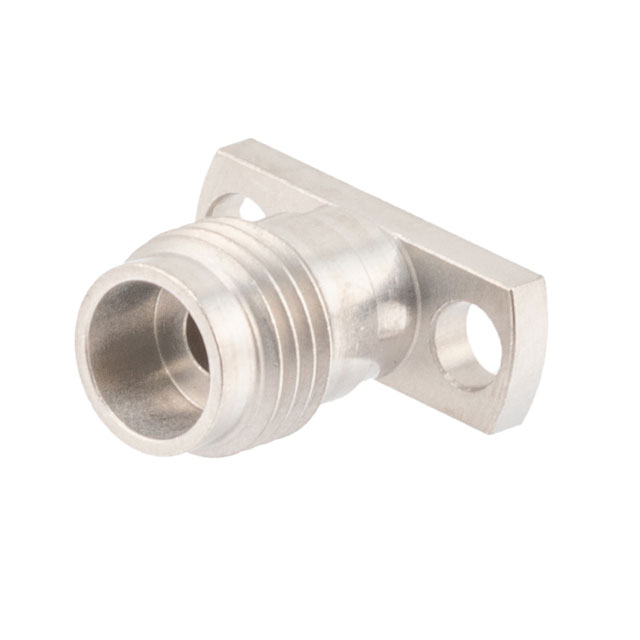

Pasternack PE45625	Polyetherimide (PEI)	Stainless Steel	Gold	-40 C	165 °C	500	Screw	Compression	Field Replaceable For Hermetically Sealed Pin	Panel Mount	50 GHz	Silver	2.4 mm	OS-50	APC-2.4	50 Ohms	Flange	1	Threaded	Receptacle Female Socket	Beryllium Copper

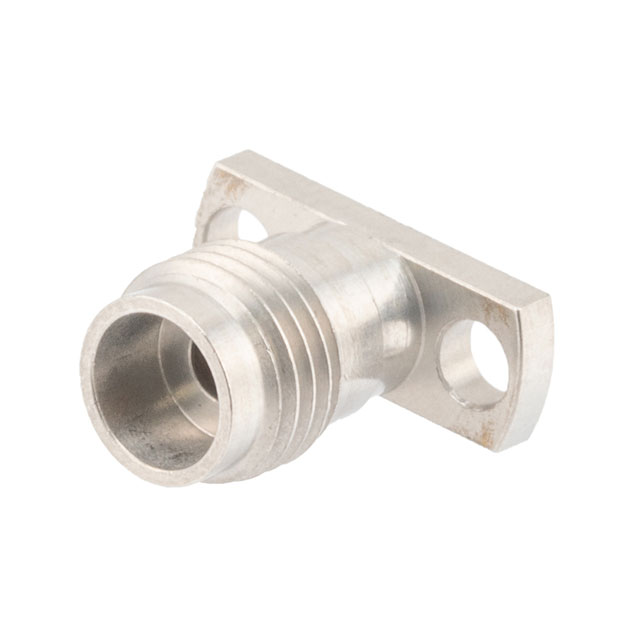

Pasternack PE45623	Polyetherimide (PEI)	Stainless Steel	Gold	-40 C	165 °C	500	Screw	Compression	Field Replaceable For Hermetically Sealed Pin	Panel Mount	50 GHz	Silver	2.4 mm	OS-50	APC-2.4	50 Ohms	Flange	1	Threaded	Receptacle Female Socket	Beryllium Copper

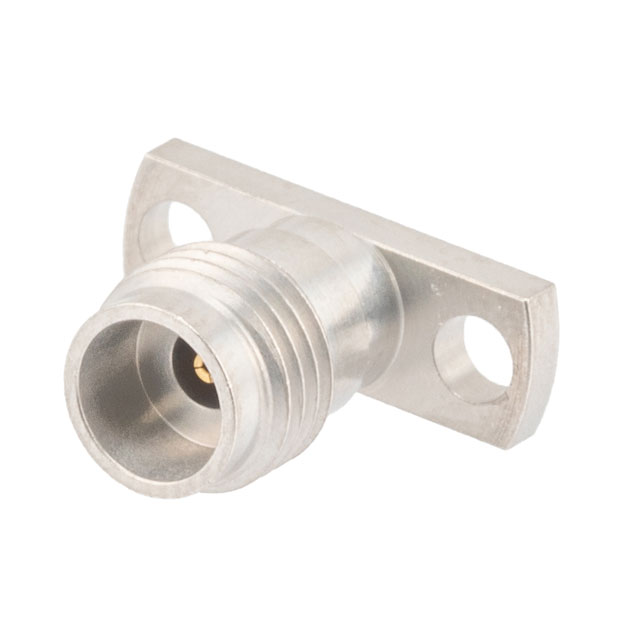

Pasternack PE45626	Polyetherimide (PEI)	Stainless Steel	Gold	-40 C	165 °C	500	Screw	Compression	Field Replaceable For Hermetically Sealed Pin	Panel Mount	50 GHz	Silver	2.4 mm	OS-50	APC-2.4	50 Ohms	Flange	1	Threaded	Receptacle Female Socket	Beryllium Copper

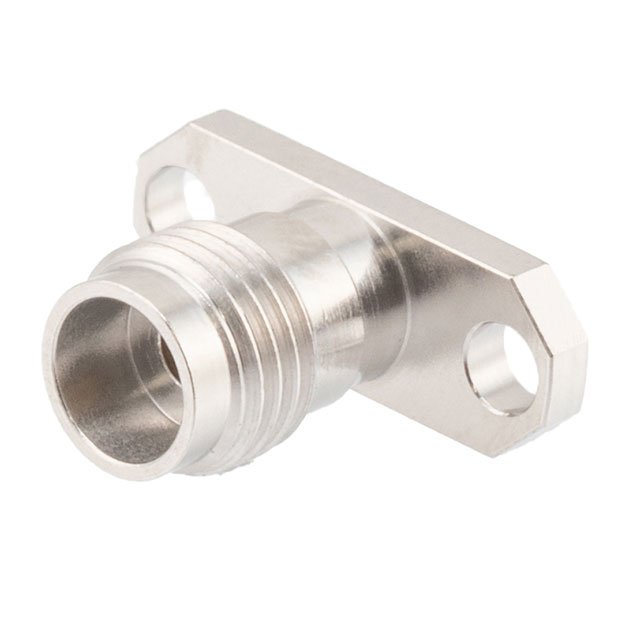

Pasternack PE45621	Polyetherimide (PEI)	Stainless Steel	Gold	-40 C	165 °C	500	Screw	Compression	Field Replaceable For Hermetically Sealed Pin	Panel Mount	50 GHz	Silver	2.4 mm	OS-50	APC-2.4	50 Ohms	Flange	1	Threaded	Receptacle Female Socket	Beryllium Copper

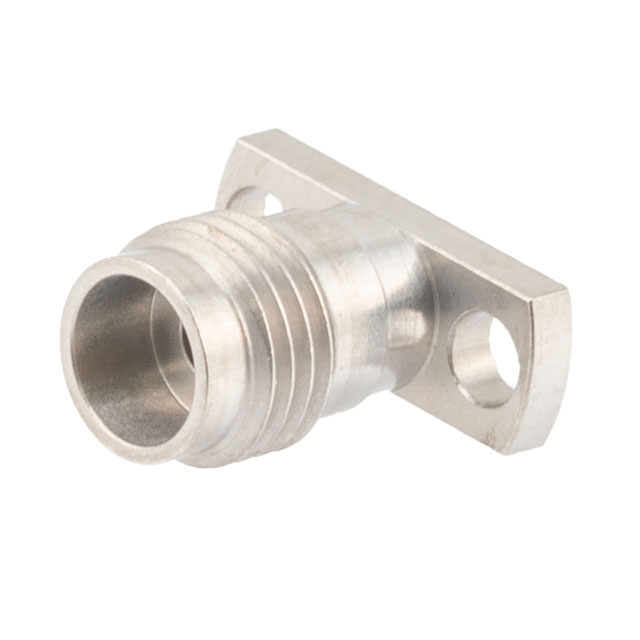

Pasternack PE45624	Polyetherimide (PEI)	Stainless Steel	Gold	-40 C	165 °C	500	Screw	Compression	Field Replaceable For Hermetically Sealed Pin	Panel Mount	50 GHz	Silver	2.4 mm	OS-50	APC-2.4	50 Ohms	Flange	1	Threaded	Receptacle Female Socket	Beryllium Copper

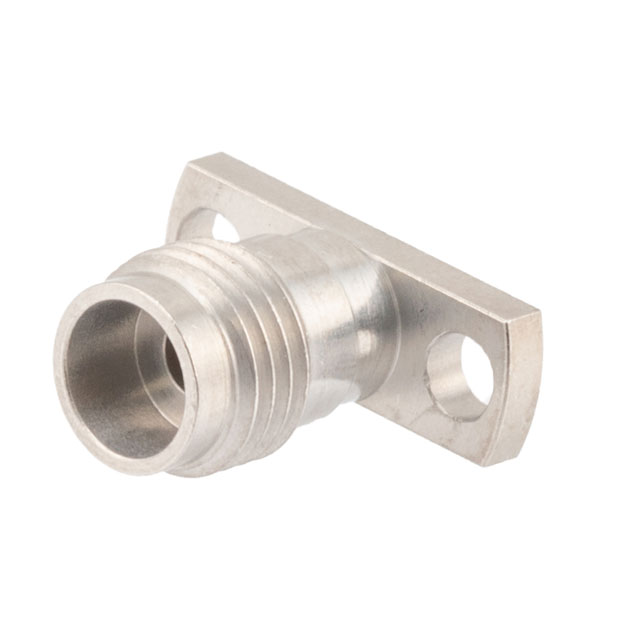

Pasternack PE45628	Polyetherimide (PEI)	Stainless Steel	Gold	-40 C	165 °C	500	Screw	Compression	Field Replaceable For Hermetically Sealed Pin	Panel Mount	50 GHz	Silver	2.4 mm	OS-50	APC-2.4	50 Ohms	Flange	1	Threaded	Receptacle Female Socket	Beryllium Copper
