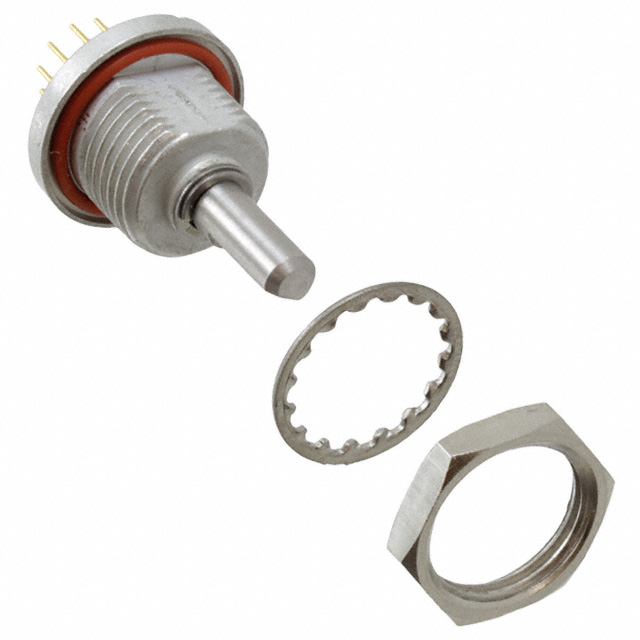

77SPT36 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY 6POS 50MA 115V
| Part | Panel Cutout Dimensions [diameter] | Contact Timing | Contact Material | Termination Style | Index Stops | Voltage Rating - AC | Circuit per Deck | Number of Positions | Mounting Type | Angle of Throw | Depth Behind Panel [z] | Actuator Type | Voltage Rating - DC | Number of Decks [custom] | Features | Number of Poles per Deck | Actuator Length [x] | Current Rating (Amps) | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 9.53 mm | Shorting (MBB) | Silver Cadmium Oxide (AgCdO) | PC Pin | Fixed | 115 V | SP6T | 6 | Panel Mount Through Hole | 36 ° | 4.57 mm | Flatted (3.17mm Dia) | 28 V | 1 | Shaft and Panel Sealed | 1 | 7.98 mm | 50 mA | Gold |
Grayhill Inc. | 9.53 mm | Shorting (MBB) | Silver Cadmium Oxide (AgCdO) | PC Pin | Fixed | 115 V | SPDT | 2 | Panel Mount Through Hole | 36 ° | 4.57 mm | Flatted (3.17mm Dia) | 28 V | 1 | Shaft and Panel Sealed | 1 | 7.98 mm | 50 mA | Gold |
 Grayhill Inc. | 9.53 mm | Non-Shorting (BBM) | Silver Tin Oxide (AgSnO) | PC Pin | Fixed | 115 V | SP8T | 8 | Panel Mount Through Hole | 36 ° | 4.57 mm | Flatted (3.17mm Dia) | 28 V | 1 | Shaft and Panel Sealed | 1 | 7.98 mm | 50 mA 200 mA | Gold |
Grayhill Inc. | 9.53 mm | Shorting (MBB) | Silver Cadmium Oxide (AgCdO) | PC Pin | Continuous | 115 V | SP10T | 10 | Panel Mount Through Hole | 36 ° | 4.57 mm | Flatted (3.17mm Dia) | 28 V | 1 | Shaft and Panel Sealed | 1 | 7.98 mm | 50 mA 200 mA | Gold |
 Grayhill Inc. | 9.53 mm | Non-Shorting (BBM) | Silver Tin Oxide (AgSnO) | PC Pin | Fixed | 115 V | SP7T | 7 | Panel Mount Through Hole | 36 ° | 4.57 mm | Flatted (3.17mm Dia) | 28 V | 1 | Shaft and Panel Sealed | 1 | 7.98 mm | 50 mA 200 mA | Gold |
Grayhill Inc. | 9.53 mm | Non-Shorting (BBM) | Silver Tin Oxide (AgSnO) | PC Pin | Fixed | 115 V | SP4T | 4 | Panel Mount Through Hole | 36 ° | 4.57 mm | Flatted (3.17mm Dia) | 28 V | 1 | Shaft and Panel Sealed | 1 | 7.98 mm | 50 mA 200 mA | Gold |
 Grayhill Inc. | 9.53 mm | Shorting (MBB) | Silver Cadmium Oxide (AgCdO) | PC Pin | Fixed | 115 V | SP9T | 9 | Panel Mount Through Hole | 36 ° | 4.57 mm | Flatted (3.17mm Dia) | 28 V | 1 | Shaft and Panel Sealed | 1 | 7.98 mm | 50 mA | Gold |
Grayhill Inc. | 9.53 mm | Shorting (MBB) | Silver Cadmium Oxide (AgCdO) | PC Pin | Fixed | 115 V | SP10T | 10 | Panel Mount Through Hole | 36 ° | 4.57 mm | Flatted (3.17mm Dia) | 28 V | 1 | Shaft and Panel Sealed | 1 | 7.98 mm | 50 mA | Gold |
Grayhill Inc. | 9.53 mm | Shorting (MBB) | Silver Cadmium Oxide (AgCdO) | PC Pin | Fixed | 115 V | SP7T | 7 | Panel Mount Through Hole | 36 ° | 4.57 mm | Flatted (3.17mm Dia) | 28 V | 1 | Shaft and Panel Sealed | 1 | 7.98 mm | 50 mA | Gold |
Grayhill Inc. | 9.53 mm | Shorting (MBB) | Silver Cadmium Oxide (AgCdO) | PC Pin | Fixed | 115 V | SP4T | 4 | Panel Mount Through Hole | 36 ° | 4.57 mm | Flatted (3.17mm Dia) | 28 V | 1 | Shaft and Panel Sealed | 1 | 7.98 mm | 50 mA | Gold |
