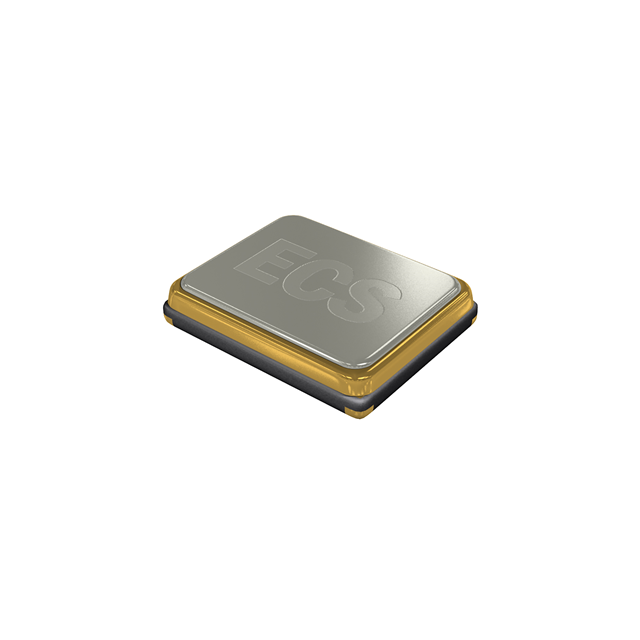

ECX-53 Series

Manufacturer: ECS Inc.

Catalog

CRYSTALS 25.000 MHZ 12PF +/-30 PPM TOL +/-30 PPM STABILITY -20 - +70C ESR 30 OHM 2 PAD SMD

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Operating Mode	Frequency Tolerance	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Frequency	Package / Case	Frequency Stability	Type	Height - Seated (Max) [Max]	Load Capacitance	Operating Temperature [Min]	Operating Temperature [Max]
ECS Inc. ECS-250-12-30-GM-TR	0.055 in	0.043 " 1.4 mm	Surface Mount	Fundamental	30 ppm	30 Ohm	3.2 mm	0.126 in	5 mm	0.197 in	25 MHz	2-SMD No Lead	30 ppm	MHz Crystal	1.1 mm	12 pF	-20 ░C	70 °C
ECS Inc. ECS-120-12-30-AEM-TR	0.055 in	0.043 " 1.4 mm	Surface Mount	Fundamental	25 ppm	80 Ohm	3.2 mm	0.126 in	5 mm	0.197 in	12 MHz	2-SMD No Lead	50 ppm	MHz Crystal	1.1 mm	12 pF	-20 ░C	70 °C
ECS Inc. ECS-240-18-30-JGN-TR	0.055 in	0.043 " 1.4 mm	Surface Mount	Fundamental	20 ppm	30 Ohm	3.2 mm	0.126 in	5 mm	0.197 in	24 MHz	2-SMD No Lead	30 ppm	MHz Crystal	1.1 mm	18 pF	-40 C	85 °C
ECS Inc. ECS-286.3-18-30-JGN-TR		0.043 "	Surface Mount	Fundamental	20 ppm	30 Ohm	3.2 mm	0.126 in	5 mm	0.197 in	28.63636 MHz	2-SMD No Lead	30 ppm	MHz Crystal	1.1 mm	18 pF	-40 C	85 °C
ECS Inc. ECS-240-18-30-JEM-TR	0.055 in	0.043 " 1.4 mm	Surface Mount	Fundamental	20 ppm	30 Ohm	3.2 mm	0.126 in	5 mm	0.197 in	24 MHz	2-SMD No Lead	50 ppm	MHz Crystal	1.1 mm	18 pF	-20 ░C	70 °C
