251R Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 5.62"L X 3.25"W

Part	Weight	Weight	Design	Features	Material	Thickness	Thickness	Color	Ratings	Height	Height	Container Type	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Area (L x W)	Area (L x W)

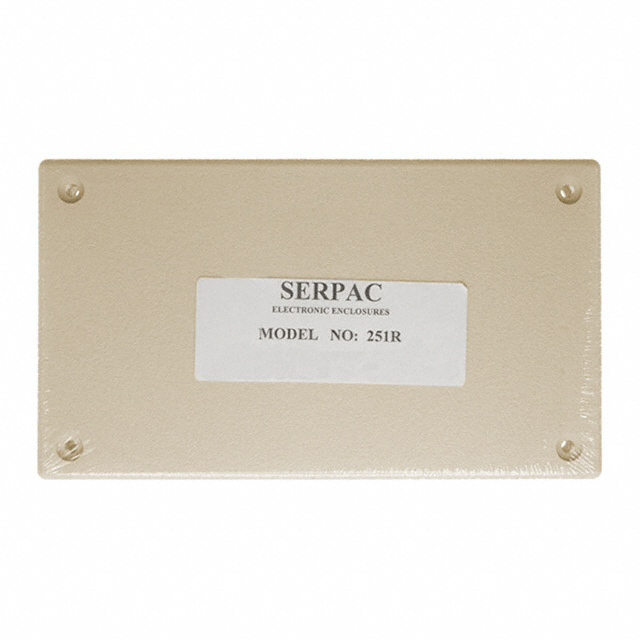

Serpac 251R,AL	119.29 g	0.263 lb	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	ABS Plastic	2.54 mm	0.1 in	Almond	IP40 NEMA 1	1.5 in	38.1 mm	Box	UL94 HB	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²

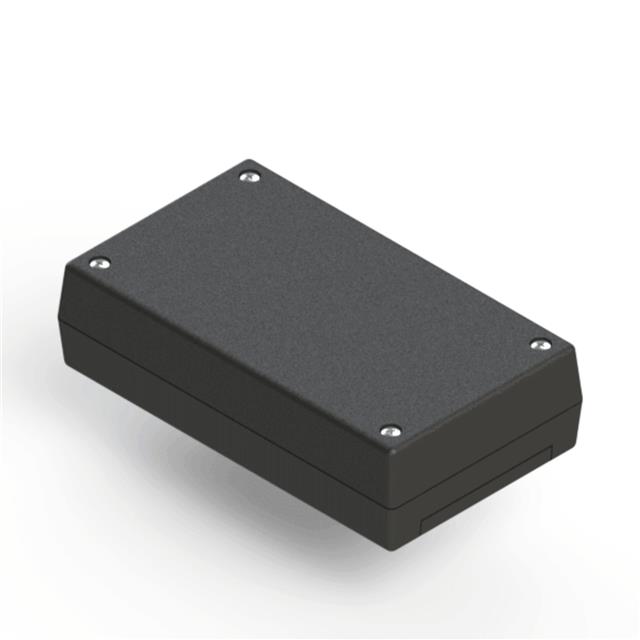

Serpac 251R,BK	119.29 g	0.263 lb	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	ABS Plastic	2.54 mm	0.1 in	Black	IP40 NEMA 1	1.5 in	38.1 mm	Box	UL94 HB	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²

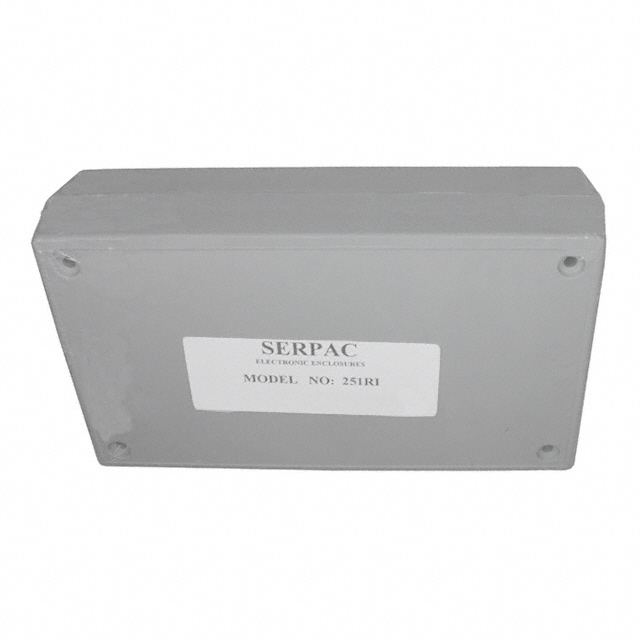

Serpac 251RI,GY	119.29 g	0.263 lb	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	ABS Plastic	2.54 mm	0.1 in	Gray	IP40 NEMA 1	1.5 in	38.1 mm	Box	UL94 HB	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²

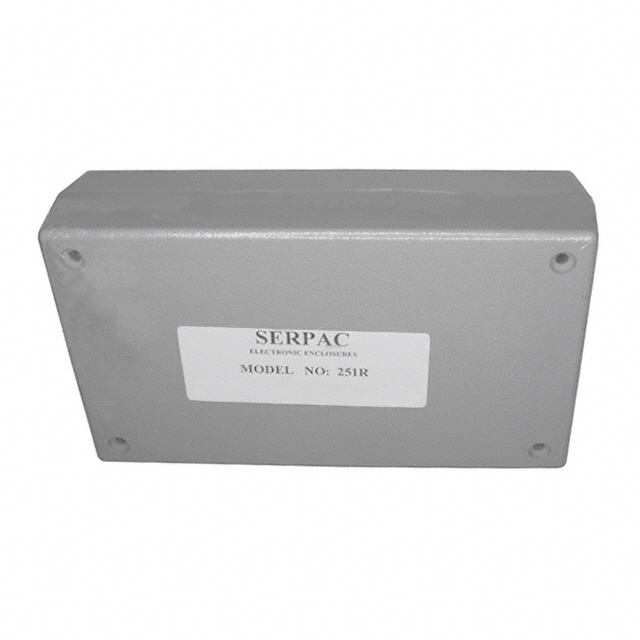

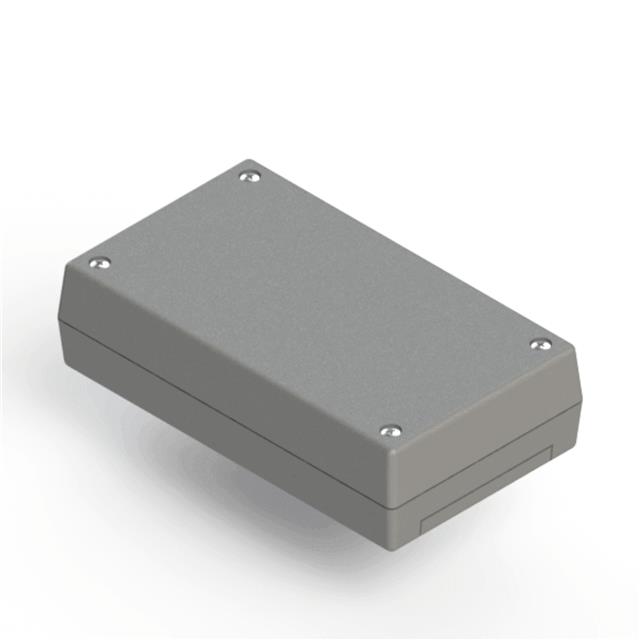

Serpac 251R,GY	119.29 g	0.263 lb	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	ABS Plastic	2.54 mm	0.1 in	Gray	IP40 NEMA 1	1.5 in	38.1 mm	Box	UL94 HB	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²

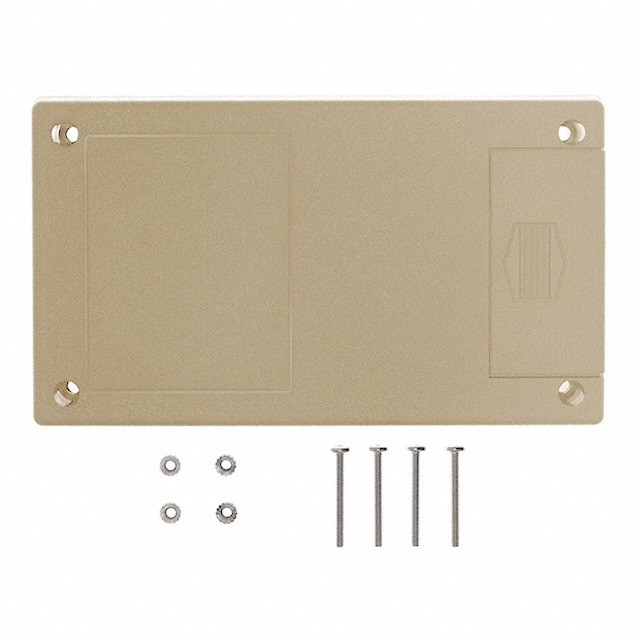

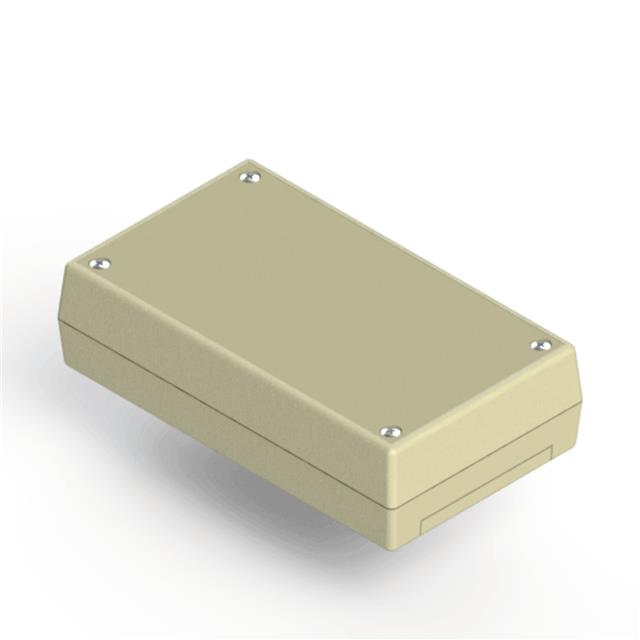

Serpac 251RI,AL	119.29 g	0.263 lb	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	ABS Plastic	2.54 mm	0.1 in	Almond	IP40 NEMA 1	1.5 in	38.1 mm	Box	UL94 HB	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²

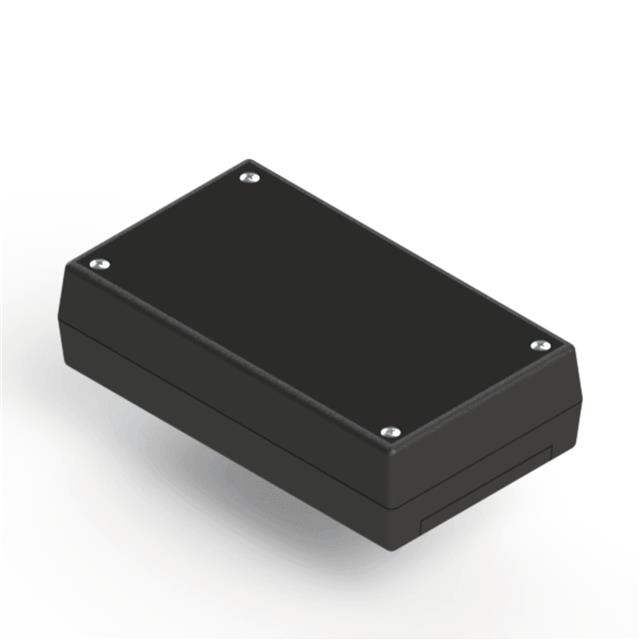

Serpac 251RI,BK	119.29 g	0.263 lb	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	ABS Plastic	2.54 mm	0.1 in	Black	IP40 NEMA 1	1.5 in	38.1 mm	Box	UL94 HB	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²
