3365A Series

Catalog

CBL RIBN 16COND 0.05 BLACK 5'

Part	Conductor Material	Insulation Resistance	First Conductor Mark	Jacket (Insulation) Material	Pitch	Pitch	Conductor Strand [custom]	Conductor Strand [custom]	Ribbon Thickness	Ribbon Thickness	Jacket Color	Ribbon Width [custom]	Ribbon Width [custom]	Features	Ratings	Number of Conductors	Length	Length	Length [x]	Length [x]	Shielding	Wire Gauge	Voltage	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors [custom]
3M Electronic Specialty 3365A/16 100	Copper Tinned	10 GOhm	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	36 AWG	7 Strands	0.89 mm	0.035 in	Black	20.32 mm	0.8 in	Zippable	UL Style 2651	16	1 ft 25 ft 100 '	7.62 m 30.48 m 304.8 mm	50 ft	15.24 m	Unshielded	28 AWG	300 VDC	Flat Cable	-20 ░C	105 ░C

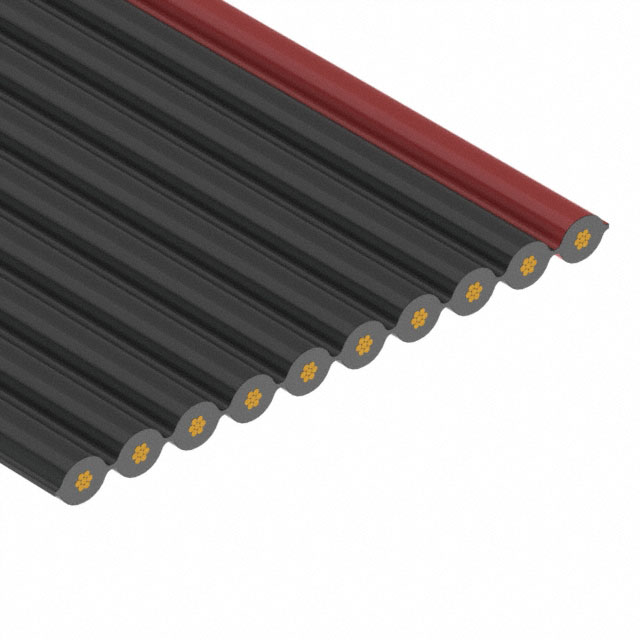

3M Electronic Specialty 3365A/10 100	Copper Tinned	10 GOhm	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	36 AWG	7 Strands	0.89 mm	0.035 in	Black	12.7 mm	0.5 in	Zippable	UL Style 2651		1 ft 25 ft 100 '	7.62 m 30.48 m 304.8 mm	50 ft	15.24 m	Unshielded	28 AWG	300 VDC	Flat Cable	-20 ░C	105 ░C	10

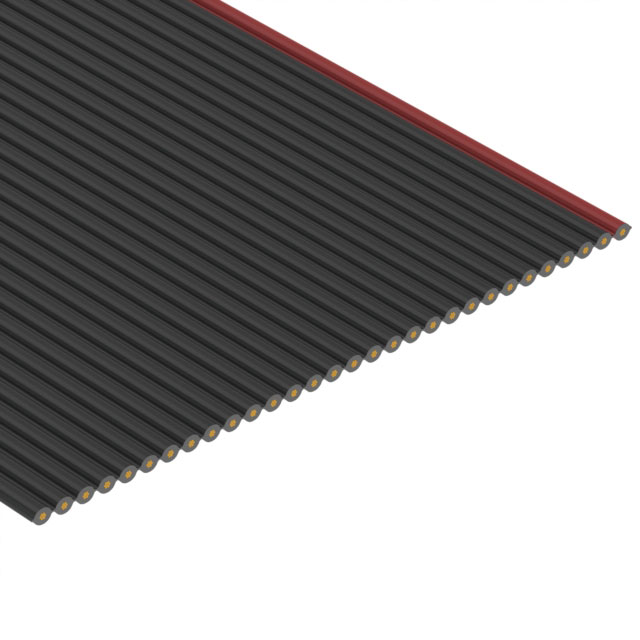

3M Electronic Specialty 3365A/30	Copper Tinned	10 GOhm	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	36 AWG	7 Strands	0.89 mm	0.035 in	Black	38.1 mm	1.5 in	Zippable	UL Style 2651	30	1 ft 25 ft 100 '	7.62 m 30.48 m 304.8 mm	50 ft	15.24 m	Unshielded	28 AWG	300 VDC	Flat Cable	-20 ░C	105 ░C

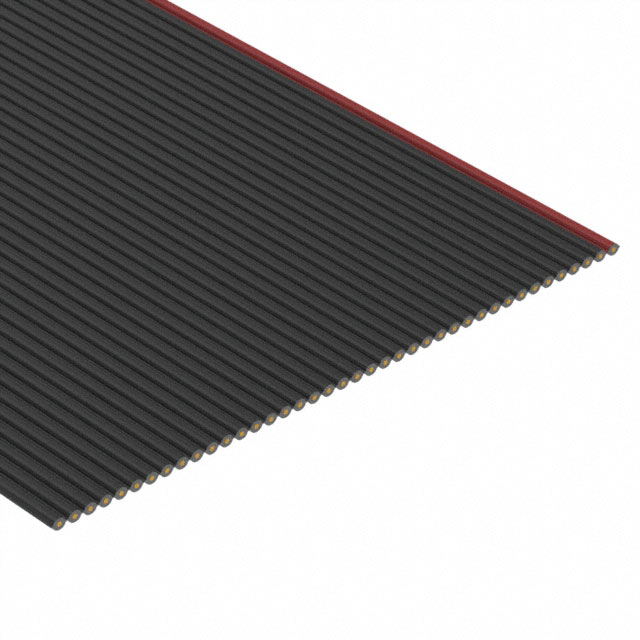

3M Electronic Specialty 3365A/40 100	Copper Tinned	10 GOhm	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	36 AWG	7 Strands	0.89 mm	0.035 in	Black	50.8 mm	2 in	Zippable	UL Style 2651	40	1 ft 25 ft 100 '	7.62 m 30.48 m 304.8 mm	50 ft	15.24 m	Unshielded	28 AWG	300 VDC	Flat Cable	-20 ░C	105 ░C

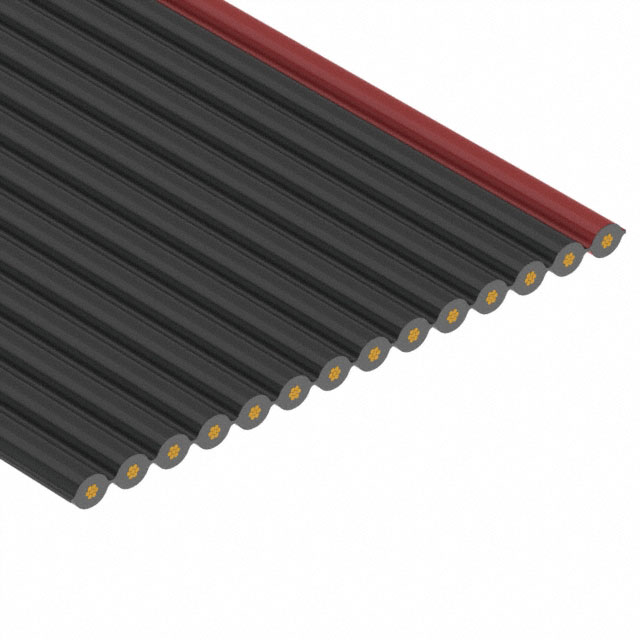

3M Electronic Specialty 3365A/14 100	Copper Tinned	10 GOhm	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	36 AWG	7 Strands	0.89 mm	0.035 in	Black	17.78 mm	0.7 in	Zippable	UL Style 2651	14	1 ft 25 ft 100 '	7.62 m 30.48 m 304.8 mm	50 ft	15.24 m	Unshielded	28 AWG	300 VDC	Flat Cable	-20 ░C	105 ░C

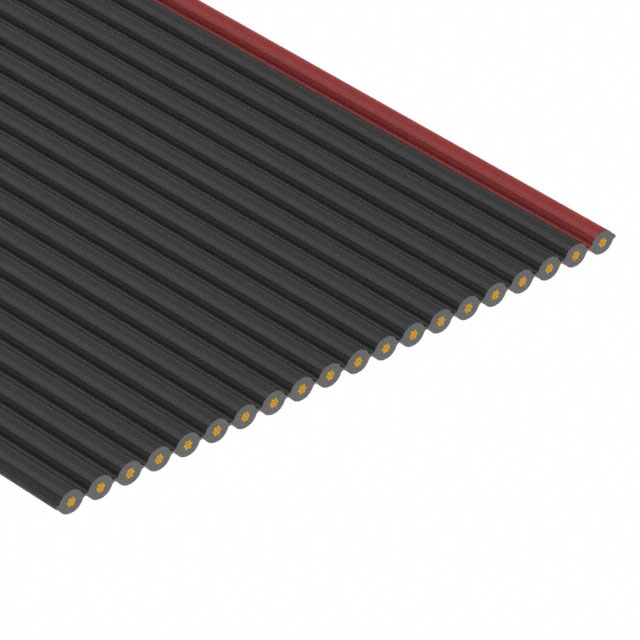

3M Electronic Specialty 3365A/20 100	Copper Tinned	10 GOhm	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	36 AWG	7 Strands	0.89 mm	0.035 in	Black	25.4 mm	1 in	Zippable	UL Style 2651	20	1 ft 25 ft 100 '	7.62 m 30.48 m 304.8 mm	50 ft	15.24 m	Unshielded	28 AWG	300 VDC	Flat Cable	-20 ░C	105 ░C
