PTA 1,5 Series
Manufacturer: Phoenix Contact
Beta
⌘K
FIXED TERMINAL BLOCKS PTA 1.5/8-3.5
| Part | Screw Thread | Housing Material | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Max] | Torque - Screw [Min] | Positions Per Level | Current | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Color | Mating Orientation | Mating Orientation | Voltage | Pitch | Pitch | Number of Levels | Features | Wire Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

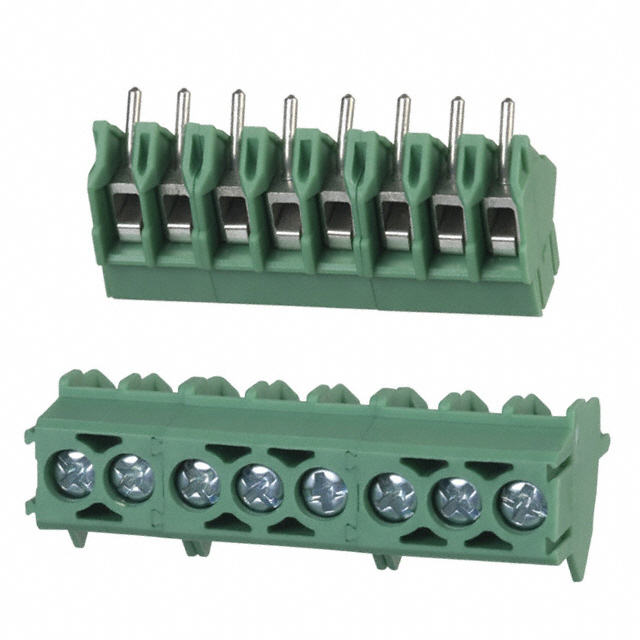

 Phoenix Contact | M2 | Polyamide (PA) Nylon | 0.25 Nm | 0.22 Nm | 2.2 Lb-In | 1.9 Lb-In | 8 | 10 A | 26 AWG | 16 AWG | Through Hole | Green | 135 ° | 45 ° | 300 VDC | 3.5 mm | 0.138 " | 1 | Interlocking (Side) | Screw |

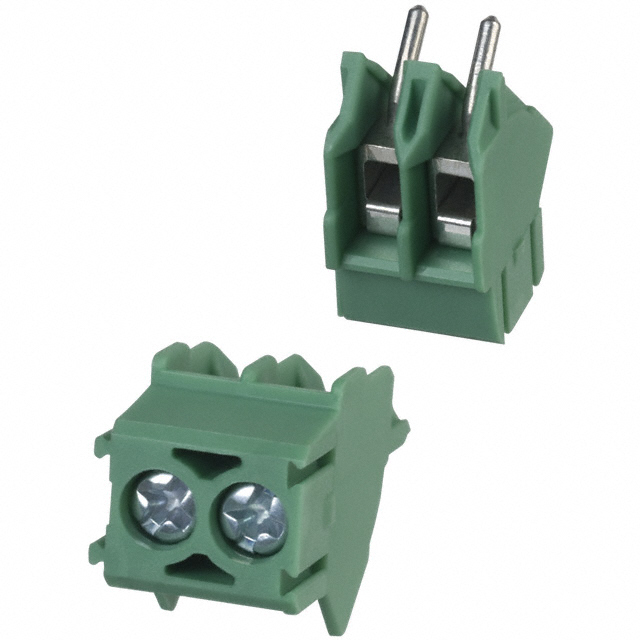

 Phoenix Contact | M2 | Polyamide (PA) Nylon | 0.25 Nm | 0.22 Nm | 2.2 Lb-In | 1.9 Lb-In | 2 | 10 A | 26 AWG | 16 AWG | Through Hole | Green | 135 ° | 45 ° | 300 VDC | 3.5 mm | 0.138 " | 1 | Interlocking (Side) | Screw |
 Phoenix Contact | 12 | 15 A | 26 AWG | 12 AWG | Through Hole | Green | 135 ° | 45 ° | 300 VDC | 5 mm | 0.197 in | 1 | Interlocking (Side) | Screw | ||||||

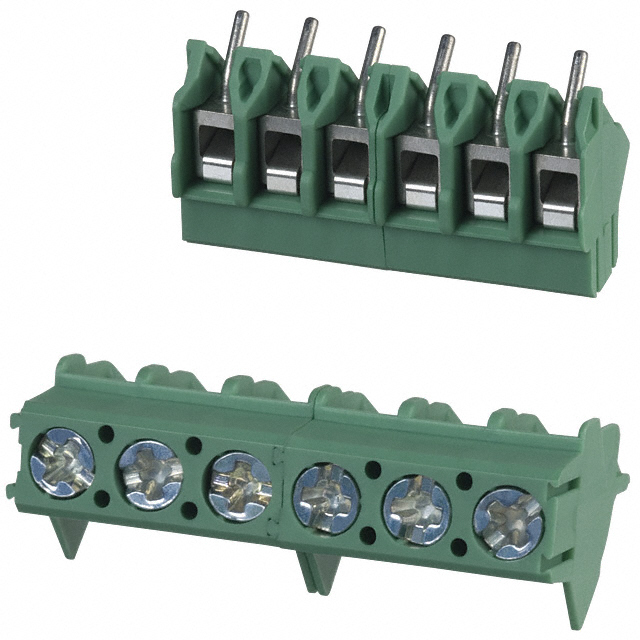

 Phoenix Contact | M2.6 | Polyamide (PA) Nylon | 0.4 Nm | 0.35 Nm | 3.5 Lb-In | 3.1 Lb-In | 6 | 15 A | 26 AWG | 12 AWG | Through Hole | Green | 135 ° | 45 ° | 300 VDC | 5 mm | 0.197 in | 1 | Interlocking (Side) | Screw |
