FTRA6971 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

5G PHANTOM NGP 698-7125MHZ - WHI

Part	Termination	Number of Bands	RF Family/Standard	Frequency Group	Gain	Frequency Range	Antenna Type	Ingress Protection	Applications	VSWR	Mounting Type	Height (Max) [z]	Height (Max) [z]	Height (Max) [z]	Frequency (Center/Band)	Power - Max [Max]

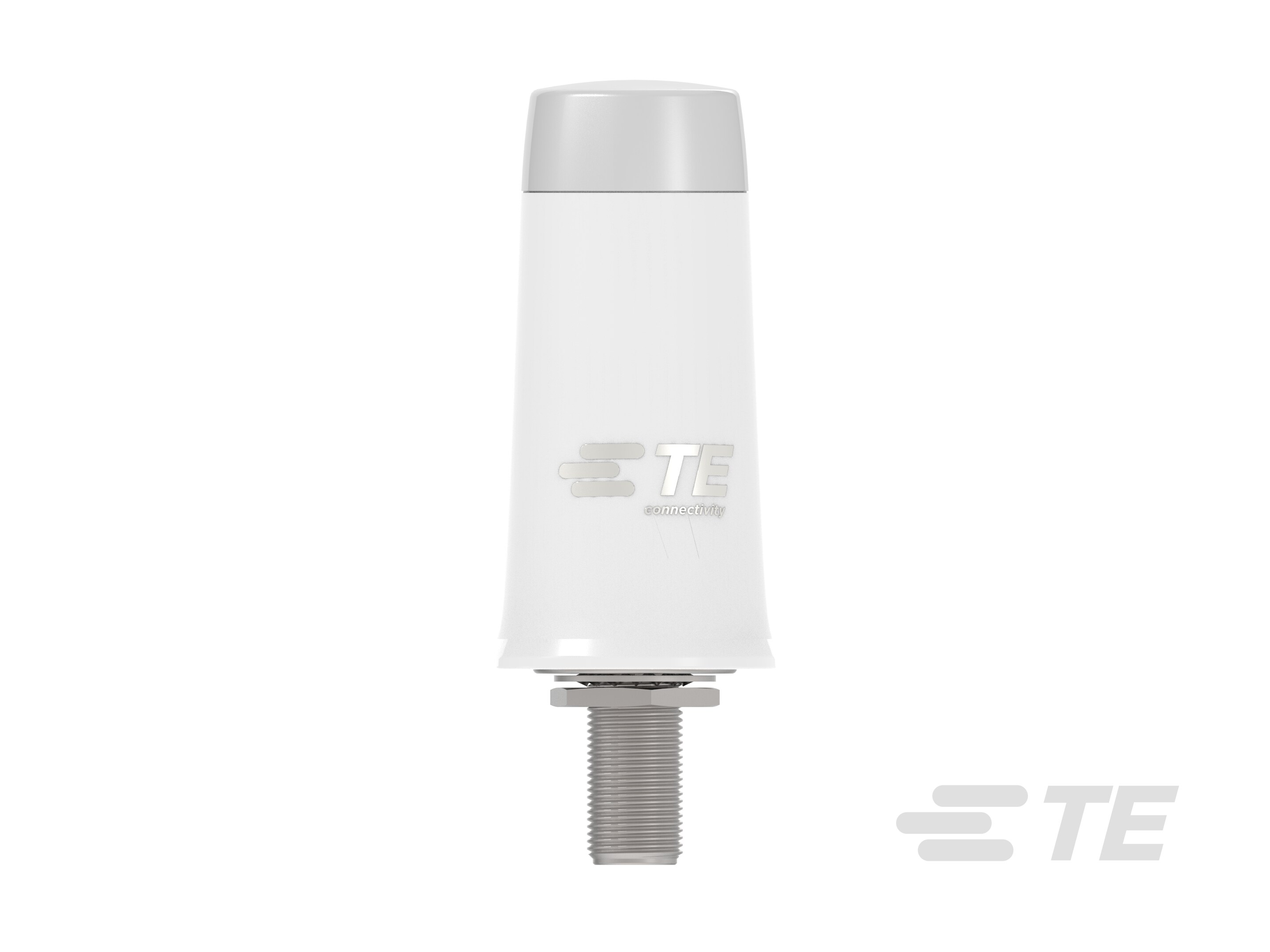

TE Connectivity AMP Connectors FTRA6971M6PWN-001	N Type Female	7	Cellular	Wide Band	0.4 dBi 1.1 dBi 2.7 dBi 5.7 dBi 6.6 dBi 7.4 dB 8.1 dB	1.427 GHz 1.695 GHz 3.3 GHz 4.4 GHz 6 GHz 6.5 GHz 698 MHz	Dome	IP67	5G	2 2.5 3.5	Panel Mount	3.799 in	96.5 mm

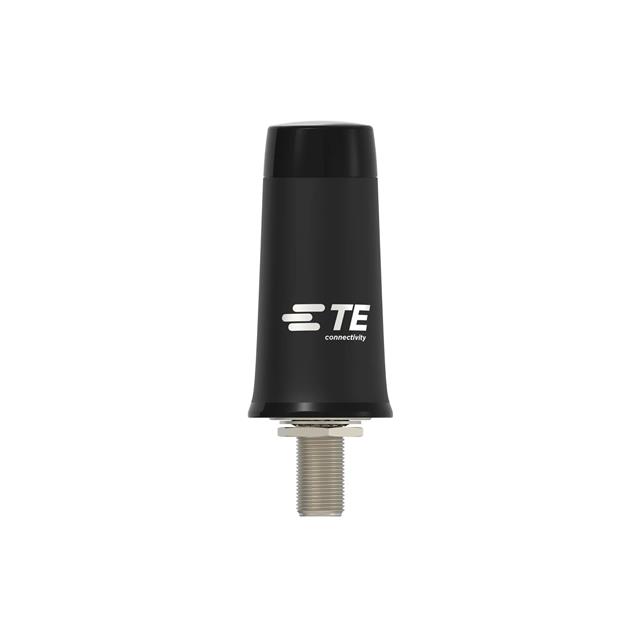

TE Connectivity AMP Connectors FTRA6971M6PBN-001	N Type Female	7	Cellular	Wide Band	0.4 dBi 1.1 dBi 2.7 dBi 5.7 dBi 6.6 dBi 7.4 dB 8.1 dB	1.427 GHz 1.695 GHz 3.3 GHz 4.4 GHz 6 GHz 6.5 GHz 698 MHz	Dome	IP67	5G	2 2.5 3.5	Panel Mount	3.799 in	96.5 mm
TE Connectivity AMP Connectors FTRA6971M6PBN-001	N Type Female	7	Cellular	Wide Band	0.4 dBi 1.1 dBi 2.7 dBi 5.7 dBi 6.6 dBi 7.4 dB 8.1 dB	1.427 GHz 1.695 GHz 3.3 GHz 4.4 GHz 6 GHz 6.5 GHz 698 MHz	Dome	IP67	5G	2 2.5 3.5	Panel Mount	3.799 in	96.5 mm
TE Connectivity AMP Connectors FTRA6971M5PW-001	N Type Female	6	Cellular	Wide Band	4 dBi 4.5 dBic 5.5 dBi		Dome	IP67	5G	1.5 2 2.7	Panel Mount	84 mm		3.307 in	1.561 GHz 2.1975 GHz 3.75 GHz 5.2 GHz 6.5625 GHz 829 MHz	100 W
TE Connectivity AMP Connectors FTRA6971M5PW-001	N Type Female	6	Cellular	Wide Band	4 dBi 4.5 dBic 5.5 dBi		Dome	IP67	5G	1.5 2 2.7	Panel Mount	84 mm		3.307 in	1.561 GHz 2.1975 GHz 3.75 GHz 5.2 GHz 6.5625 GHz 829 MHz	100 W
TE Connectivity AMP Connectors FTRA6971M5PB-001	N Type Female	6	Cellular	Wide Band	4 dBi 4.5 dBic 5.5 dBi		Dome	IP67	5G	1.5 2 2.7	Panel Mount	84 mm		3.307 in	1.561 GHz 2.1975 GHz 3.75 GHz 5.2 GHz 6.5625 GHz 829 MHz	100 W
TE Connectivity AMP Connectors FTRA6971M5PB-001	N Type Female	6	Cellular	Wide Band	4 dBi 4.5 dBic 5.5 dBi		Dome	IP67	5G	1.5 2 2.7	Panel Mount	84 mm		3.307 in	1.561 GHz 2.1975 GHz 3.75 GHz 5.2 GHz 6.5625 GHz 829 MHz	100 W
TE Connectivity AMP Connectors FTRA6971M6PWN-001	N Type Female	7	Cellular	Wide Band	0.4 dBi 1.1 dBi 2.7 dBi 5.7 dBi 6.6 dBi 7.4 dB 8.1 dB	1.427 GHz 1.695 GHz 3.3 GHz 4.4 GHz 6 GHz 6.5 GHz 698 MHz	Dome	IP67	5G	2 2.5 3.5	Panel Mount	3.799 in	96.5 mm
