S29CD016 Series

Manufacturer: INFINEON

Catalog

IC FLASH 16MBIT PAR DIE

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Interface	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Memory Format	Memory Size	Access Time	Clock Frequency	Memory Organization	Memory Type	Technology	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]
INFINEON S29CD016J1JDGH014	1.65 V	2.75 V	Parallel	Die	-40 ¯C	145 °C	Die	Surface Mount	FLASH	2 MB	54 ns	40 MHz	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns

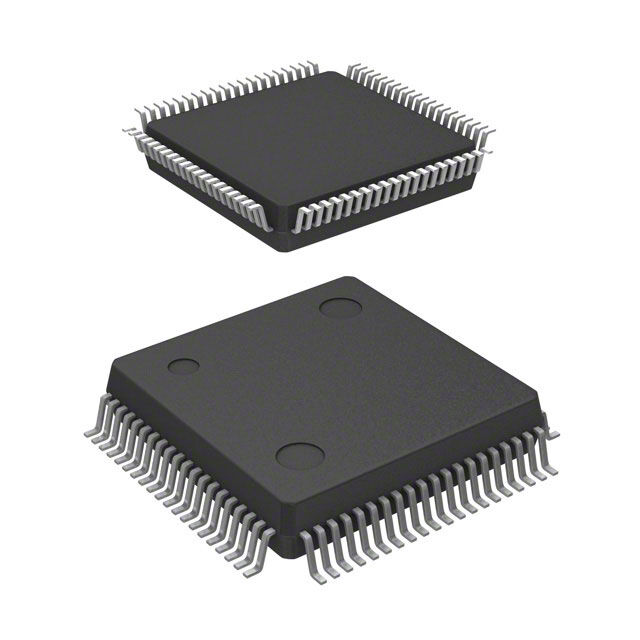

INFINEON S29CD016J0PQAM013	1.65 V	2.75 V	Parallel	80-PQFP (14x20)	-40 °C	125 °C	80-BQFP	Surface Mount	FLASH	2 MB	54 ns	66 MHz	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns
INFINEON S29CD016J0JQFM110	1.65 V	2.75 V	Parallel	80-PQFP (14x20)	-40 °C	125 °C	80-BQFP	Surface Mount	FLASH	2 MB	54 ns	40 MHz	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns
INFINEON S29CD016J0PQFM110	1.65 V	2.75 V	Parallel	80-PQFP (14x20)	-40 °C	125 °C	80-BQFP	Surface Mount	FLASH	2 MB	54 ns	66 MHz	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns
INFINEON S29CD016J0MQAM010	1.65 V	2.75 V	Parallel	80-PQFP (14x20)	-40 °C	125 °C	80-BQFP	Surface Mount	FLASH	2 MB	54 ns	56 MHz	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns
INFINEON S29CD016J0MDGH014	1.65 V	2.75 V	Parallel	Die	-40 ¯C	145 °C	Die	Surface Mount	FLASH	2 MB	54 ns	56 MHz	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns
INFINEON S29CD016J0PQFM113	1.65 V	2.75 V	Parallel	80-PQFP (14x20)	-40 °C	125 °C	80-BQFP	Surface Mount	FLASH	2 MB	54 ns	66 MHz	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns
INFINEON S29CD016J0MQFM030	1.65 V	2.75 V	Parallel	80-PQFP (14x20)	-40 °C	125 °C	80-BQFP	Surface Mount	FLASH	2 MB	54 ns	56 MHz	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns
INFINEON S29CD016J0MFAM113	1.65 V	2.75 V	Parallel	80-FBGA (13x11)	-40 °C	125 °C	80-LBGA	Surface Mount	FLASH	2 MB	54 ns	56 MHz	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns
INFINEON S29CD016J1JQFM010	1.65 V	2.75 V	Parallel	80-PQFP (14x20)	-40 °C	125 °C	80-BQFP	Surface Mount	FLASH	2 MB	54 ns	40 MHz	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns
