TX24-100 Series

Catalog

CONN RCPT 100POS VERT GOLD

Part	Mounting Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mated Stacking Heights	Connector Type	Height Above Board [z]	Height Above Board [z]	Number of Positions	Number of Rows [custom]	Features

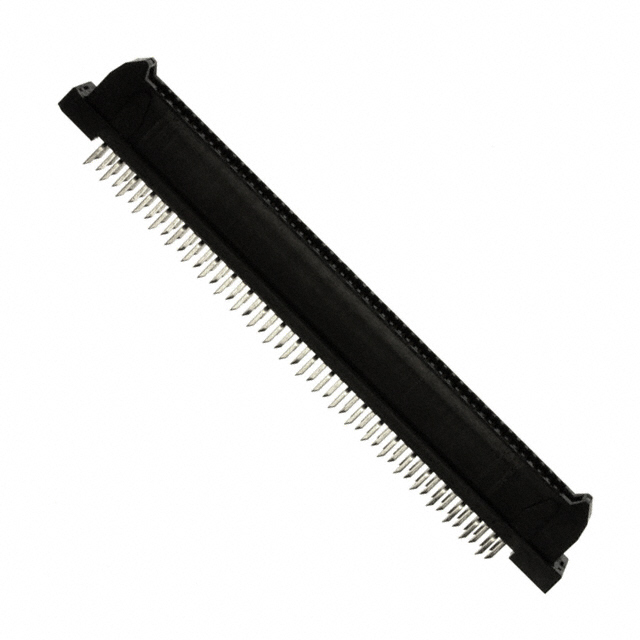

JAE Electronics TX24-100R-6ST-N1E	Through Hole	0.05 in	1.27 mm	0.1 Ám	4 Áin	Gold	12 mm 14 mm 18 mm	Receptacle Outer Shroud Contacts	0.406 in	10.3 mm	100	2

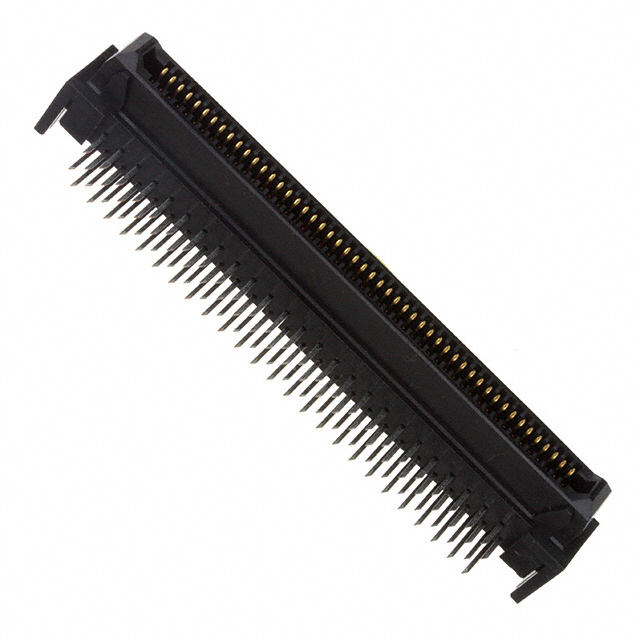

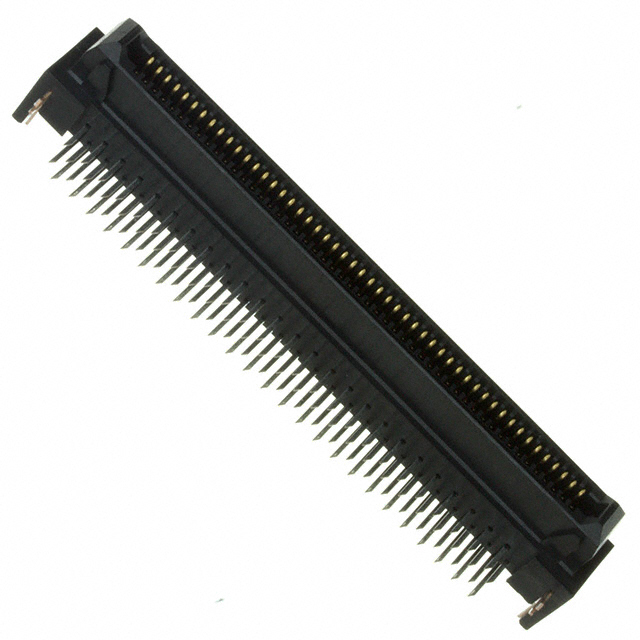

JAE Electronics TX24-100R-LT-H1E	Right Angle Through Hole	0.05 in	1.27 mm	0.1 Ám	4 Áin	Gold		Receptacle Outer Shroud Contacts	0.354 in	9 mm	100	2	Board Lock

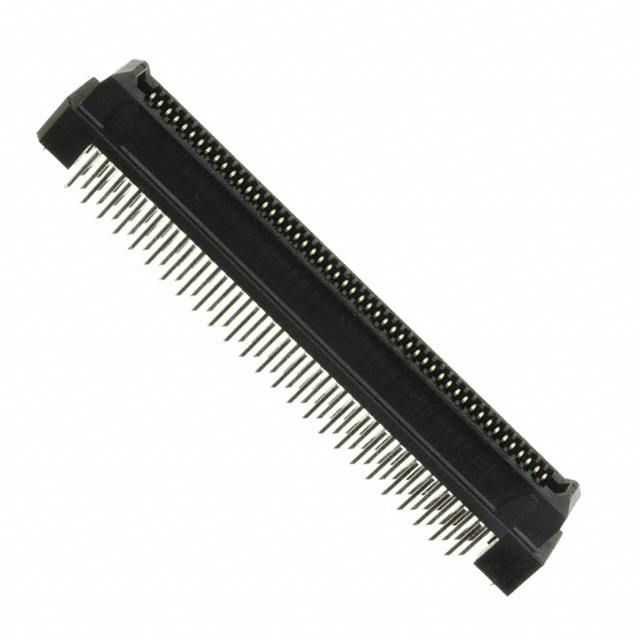

JAE Electronics TX24-100R-10ST-H1E	Through Hole	0.05 in	1.27 mm	0.1 Ám	4 Áin	Gold	16 mm 18 mm 22 mm	Receptacle Outer Shroud Contacts	0.563 in	14.3 mm	100	2	Board Lock

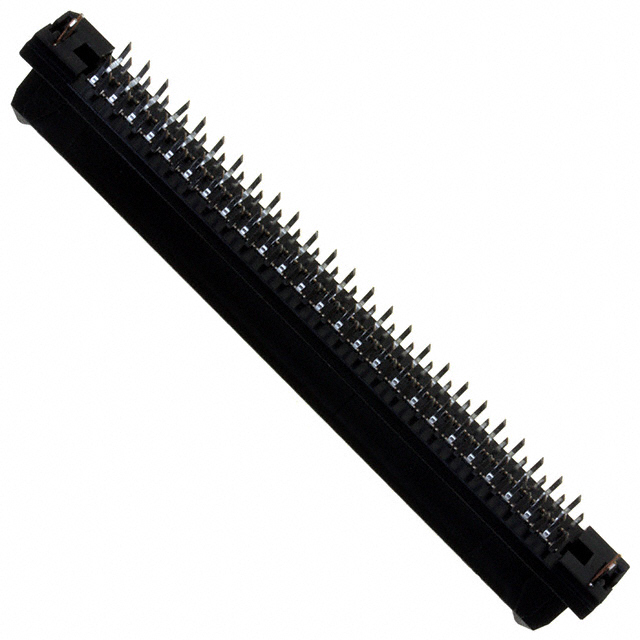

JAE Electronics TX24-100R-6ST-H1E	Through Hole	0.05 in	1.27 mm	0.1 Ám	4 Áin	Gold	12 mm 14 mm 18 mm	Receptacle Outer Shroud Contacts	0.406 in	10.3 mm	100	2	Board Lock

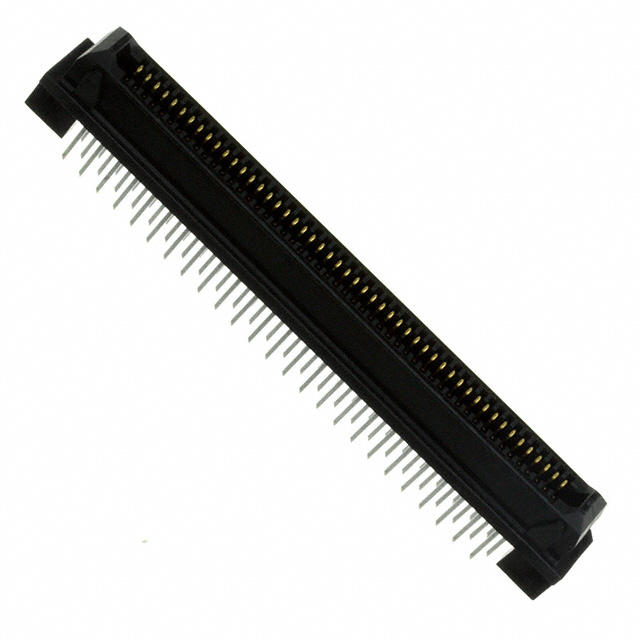

JAE Electronics TX24-100R-10ST-N1E	Through Hole	0.05 in	1.27 mm	0.1 Ám	4 Áin	Gold	16 mm 18 mm 22 mm	Receptacle Outer Shroud Contacts	0.563 in	14.3 mm	100	2

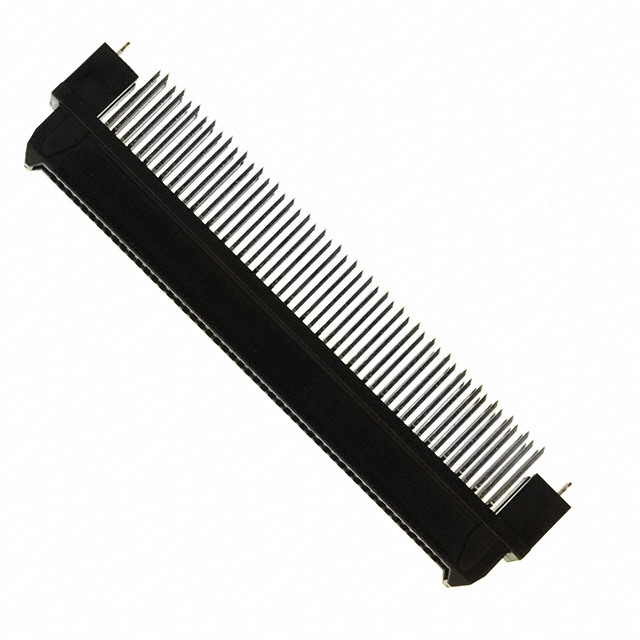

JAE Electronics TX24-100R-12ST-H1E	Through Hole	0.05 in	1.27 mm	0.1 Ám	4 Áin	Gold	18 mm 20 mm 24 mm	Receptacle Outer Shroud Contacts	0.642 in	16.3 mm	100	2	Board Lock
JAE Electronics TX24-100R-LT-N1E	Right Angle Through Hole	0.05 in	1.27 mm	0.1 Ám	4 Áin	Gold		Receptacle Outer Shroud Contacts	0.354 in	9 mm	100	2

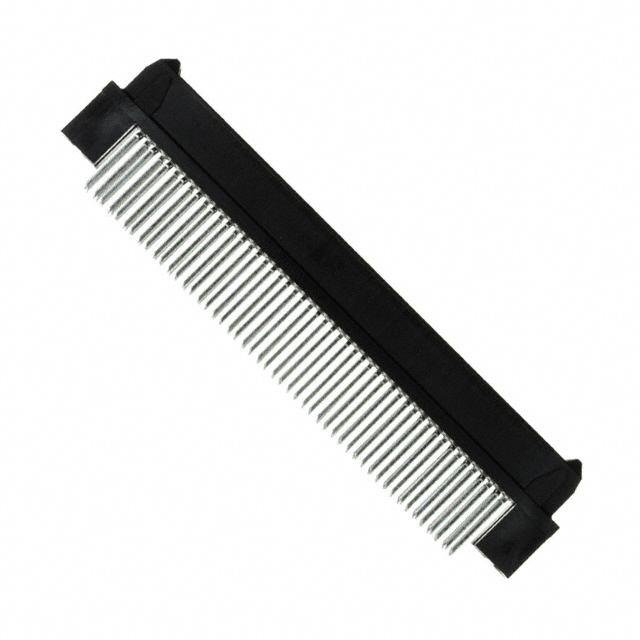

JAE Electronics TX24-100R-12ST-N1E	Through Hole	0.05 in	1.27 mm	0.1 Ám	4 Áin	Gold	18 mm 20 mm 24 mm	Receptacle Outer Shroud Contacts	0.642 in	16.3 mm	100	2
