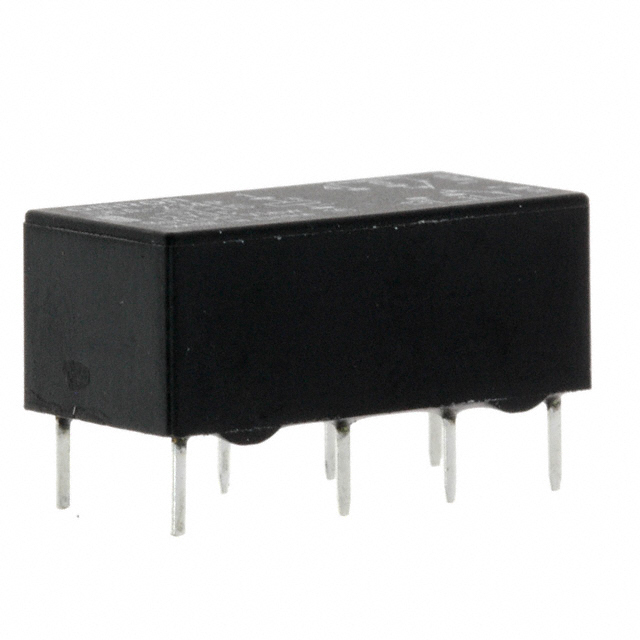

G6A-274 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 2A 12V
| Part | Operate Time | Must Operate Voltage | Coil Type | Contact Rating (Current) | Coil Voltage | Must Release Voltage | Termination Style | Load - Max Switching | Contact Form | Mounting Type | Release Time | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Relay Type | Switching Voltage | Coil Resistance | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 5 ms | 9.6 VDC | Non Latching | 2 A | 12 VDC | 1.2 VDC | PC Pin | 440 W 500 VA | DPDT (2 Form C) | Through Hole | 3 ms | Gold (Au) Silver (Ag) | -40 °C | 70 °C | General Purpose | 220 VDC 250 VAC | 960 Ohms | |
Omron Electronics Inc-EMC Div | 5 ms | 4.2 VDC | Non Latching | 2 A | 0.6 VDC | PC Pin | 440 W 500 VA | DPDT (2 Form C) | Through Hole | 3 ms | Gold (Au) Silver (Ag) | -40 °C | 70 °C | General Purpose | 220 VDC 250 VAC | 180 Ohms | 33.3 mA | |
Omron Electronics Inc-EMC Div | 5 ms | 8.4 VDC | Non Latching | 2 A | 12 VDC | 1.2 VDC | PC Pin | 440 W 500 VA | DPDT (2 Form C) | Through Hole | 3 ms | Gold (Au) Silver (Ag) | -40 °C | 70 °C | General Purpose | 220 VDC 250 VAC | 360 Ohms | 33.3 mA |
Omron Electronics Inc-EMC Div | 5 ms | Non Latching | 2 A | 12 VDC | 1.2 VDC | PC Pin | 440 W 500 VA | DPDT (2 Form C) | Through Hole | 3 ms | Gold (Au) Silver (Ag) | -40 °C | 70 °C | General Purpose | 220 VDC 250 VAC | |||
 Omron Electronics Inc-EMC Div | 5 ms | 33.6 VDC | Non Latching | 2 A | 48 VDC | 4.8 VDC | PC Pin | 440 W 500 VA | DPDT (2 Form C) | Through Hole | 3 ms | Gold (Au) Silver (Ag) | -40 °C | 70 °C | General Purpose | 220 VDC 250 VAC | 5.76 kOhms | 8.3 mA |
Omron Electronics Inc-EMC Div | 5 ms | 7.2 VDC | Non Latching | 2 A | 9 VDC | 0.9 VDC | PC Pin | 440 W 500 VA | DPDT (2 Form C) | Through Hole | 3 ms | Gold (Au) Silver (Ag) | -40 °C | 70 °C | General Purpose | 220 VDC 250 VAC | 16.7 mA | |
Omron Electronics Inc-EMC Div | 5 ms | 33.6 VDC | Non Latching | 2 A | 48 VDC | 4.8 VDC | PC Pin | 440 W 500 VA | DPDT (2 Form C) | Through Hole | 3 ms | Gold (Au) Silver (Ag) | -40 °C | 70 °C | General Purpose | 220 VDC 250 VAC | 9.75 kOhms | 4.9 mA |
Omron Electronics Inc-EMC Div | 5 ms | Non Latching | 2 A | 24 VDC | 2.4 VDC | PC Pin | 440 W 500 VA | DPDT (2 Form C) | Through Hole | 3 ms | Gold (Au) Silver (Ag) | -40 °C | 70 °C | General Purpose | 220 VDC 250 VAC | |||
Omron Electronics Inc-EMC Div | 5 ms | 3.5 VDC | Non Latching | 2 A | 5 VDC | 0.5 VDC | PC Pin | 440 W 500 VA | DPDT (2 Form C) | Through Hole | 3 ms | Gold (Au) Silver (Ag) | -40 °C | 70 °C | General Purpose | 220 VDC 250 VAC | 62.5 Ohms | 80 mA |
Omron Electronics Inc-EMC Div | 5 ms | 38.4 VDC | Non Latching | 2 A | 48 VDC | 4.8 VDC | PC Pin | 440 W 500 VA | DPDT (2 Form C) | Through Hole | 3 ms | Gold (Au) Silver (Ag) | -40 °C | 70 °C | General Purpose | 220 VDC 250 VAC | 15 kOhms | 3.2 mA |
