PSA.00.250 Series

Manufacturer: LEMO

Catalog

CONN RCPT STR 50 OHM SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Body Material	Dielectric Material	Voltage Rating	Center Contact Plating	Mating Cycles	Includes	Connector Style	Housing Color	Cable Group	Ingress Protection	Impedance	Mounting Feature	Center Contact Material	Mounting Type	Connector Type	Shield Termination	Contact Termination	Fastening Type	Number of Ports
LEMO PSA.00.250.NTLC27	-55 C	260 °C	Nickel	Brass	Polytetrafluoroethylene (PTFE)	700 VDC	Gold	5000	1 Connector 1 Lockwasher 1 Nut	NIM-CAMAC CD/N 549	Silver	179B 187A 188A 316 RG-174	IP50 - Dust Protected	50 Ohms	Bulkhead - Rear Side Nut	Bronze	Panel Mount	Receptacle Female Socket	Clamp	Solder	Push-Pull
LEMO PSA.00.250.CTLC31	-55 C	260 °C	Chrome	Brass	Polytetrafluoroethylene (PTFE)	700 VDC	Gold	5000	1 Connector 1 Lockwasher 1 Nut	NIM-CAMAC CD/N 549	Silver	RG-174A	IP50 - Dust Protected	50 Ohms	Bulkhead - Rear Side Nut	Bronze	Panel Mount	Receptacle Female Socket	Clamp	Solder	Push-Pull	1
LEMO PSA.00.250.CTAC22	-55 C	260 °C	Chrome	Brass	Polytetrafluoroethylene (PTFE)	700 VDC	Gold	5000	1 Connector 1 Lockwasher 1 Nut	NIM-CAMAC CD/N 549	Silver	196A RG-178B	IP50 - Dust Protected	50 Ohms	Bulkhead - Rear Side Nut	Brass	Panel Mount	Receptacle Male Pin	Clamp	Solder	Push-Pull
LEMO PSA.00.250.CTLC29Z	-55 C	260 °C	Chrome	Brass	Polytetrafluoroethylene (PTFE)	700 VDC	Gold	5000	1 Connector 1 Lockwasher 1 Nut	NIM-CAMAC CD/N 549	Silver	RG-316	IP50 - Dust Protected	50 Ohms	Bulkhead - Rear Side Nut	Bronze	Panel Mount	Receptacle Female Socket	Clamp	Solder	Push-Pull

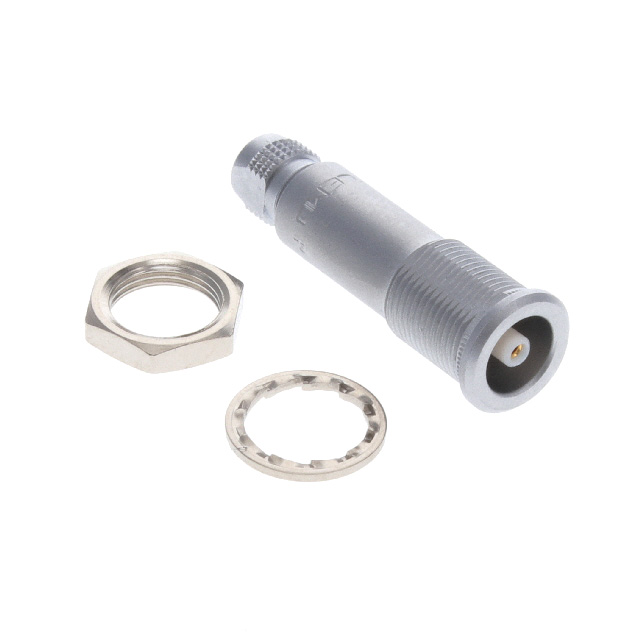

LEMO PSA.00.250.CTLC29	-55 C	260 °C	Chrome	Brass	Polytetrafluoroethylene (PTFE)	700 VDC	Gold	5000	1 Connector 1 Lockwasher 1 Nut	NIM-CAMAC CD/N 549	Silver	RG-316	IP50 - Dust Protected	50 Ohms	Bulkhead - Rear Side Nut	Bronze	Panel Mount	Receptacle Female Socket	Clamp	Solder	Push-Pull	1
LEMO PSA.00.250.CTLC22	-55 C	260 °C	Chrome	Brass	Polytetrafluoroethylene (PTFE)	700 VDC	Gold	5000	1 Connector 1 Lockwasher 1 Nut	NIM-CAMAC CD/N 549	Silver	196A RG-178B	IP50 - Dust Protected	50 Ohms	Bulkhead - Rear Side Nut	Bronze	Panel Mount	Receptacle Female Socket	Clamp	Solder	Push-Pull	1
LEMO PSA.00.250.ZLL	-55 C	260 °C			Polyetheretherketone (PEEK)	700 VDC	Gold	5000	1 Connector 1 Lockwasher 1 Nut	NIM-CAMAC CD/N 549			IP50 - Dust Protected	50 Ohms	Bulkhead - Rear Side Nut	Bronze	Panel Mount	Receptacle Female Socket		Solder	Push-Pull	1
LEMO PSA.00.250.ZTL	-55 C	260 °C			Polytetrafluoroethylene (PTFE)	700 VDC	Gold	5000	1 Connector 1 Lockwasher 1 Nut	NIM-CAMAC CD/N 549			IP50 - Dust Protected	50 Ohms	Bulkhead - Rear Side Nut	Bronze	Panel Mount	Receptacle Female Socket		Solder	Push-Pull	1
LEMO PSA.00.250.NTLC22	-55 C	260 °C	Nickel	Brass	Polytetrafluoroethylene (PTFE)	700 VDC	Gold	5000	1 Connector 1 Lockwasher 1 Nut	NIM-CAMAC CD/N 549	Silver	196A RG-178B	IP50 - Dust Protected	50 Ohms	Bulkhead - Rear Side Nut	Bronze	Panel Mount	Receptacle Female Socket	Clamp	Solder	Push-Pull

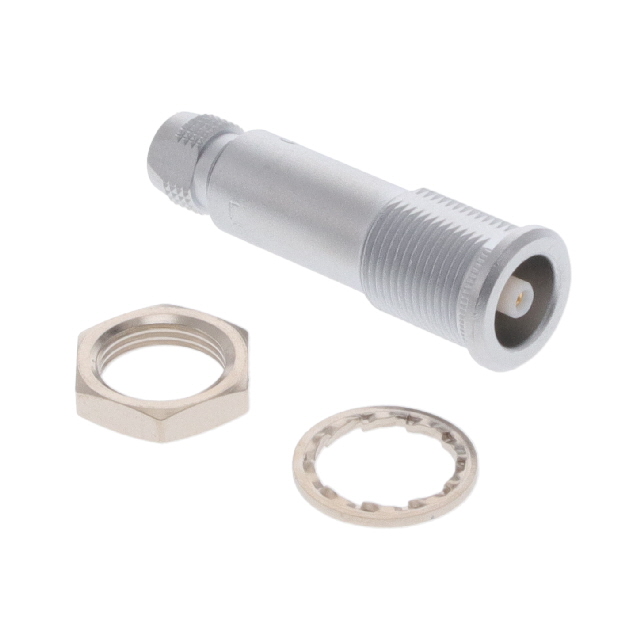

LEMO PSA.00.250.CTLC27	-55 C	260 °C	Chrome	Brass	Polytetrafluoroethylene (PTFE)	700 VDC	Gold	5000	1 Connector 1 Lockwasher 1 Nut	NIM-CAMAC CD/N 549	Silver	179B 187A 188A 316 RG-174	IP50 - Dust Protected	50 Ohms	Bulkhead - Rear Side Nut	Bronze	Panel Mount	Receptacle Female Socket	Clamp	Solder	Push-Pull	1
