PCA-2FA Series

Manufacturer: Adam Tech

Catalog

CONN FFC FPC BOTTOM 24POS 1MM RA

Part	Current Rating (Amps)	Actuator Color	Housing Color	Height Above Board	Height Above Board [z]	Contact Material	Locking Feature	Housing Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Pitch	Pitch	FFC, FCB Thickness	Material Flammability Rating	Flat Flex Type	Connector/Contact Type	Termination	Cable End Type	Contact Finish	Features	Actuator Material

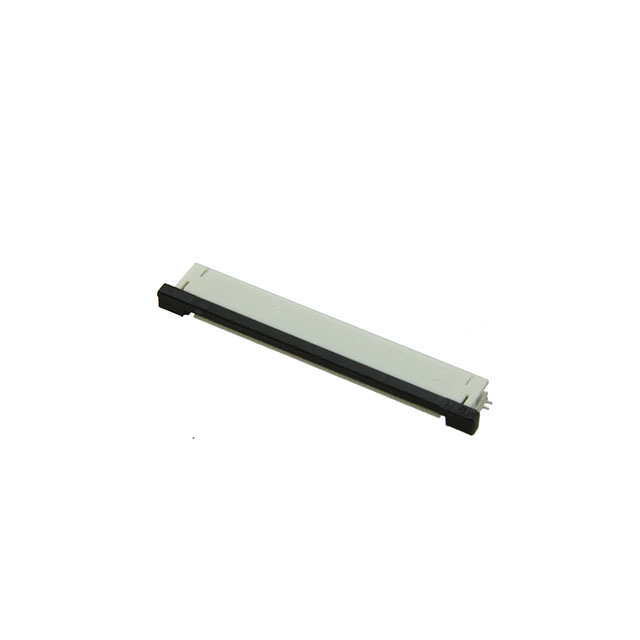

Adam Tech PCA-2FA-24-HL-3	0.5 A	Black	Natural	2.3 mm	0.091 "	Phosphor Bronze	Slide Lock	Thermoplastic	Right Angle Surface Mount	85 °C	-25 °C	24	1 mm	0.039 in	0.3 mm	UL94 V-0	FFC FPC	Contacts Bottom	Solder	Straight	Tin	Solder Retention Zero Insertion Force (ZIF)	Thermoplastic

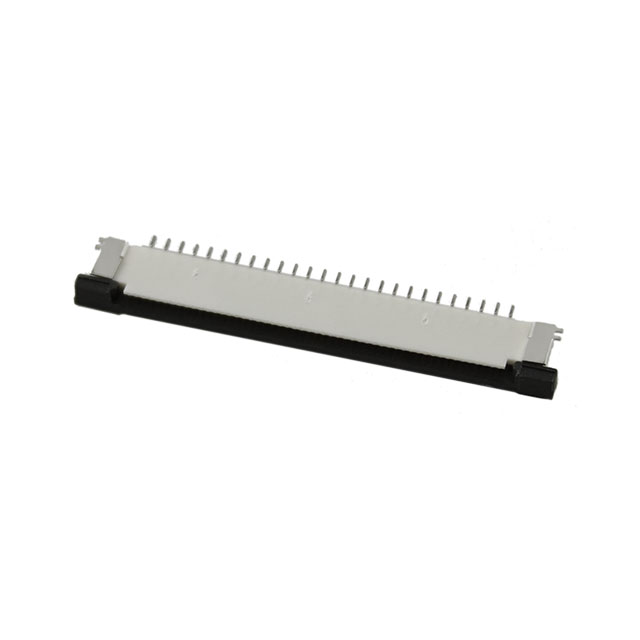

Adam Tech PCA-2FA-26-HL-3	0.5 A	Black	Natural	2.3 mm	0.091 "	Phosphor Bronze	Slide Lock	Thermoplastic	Right Angle Surface Mount	85 °C	-25 °C	26	1 mm	0.039 in	0.3 mm	UL94 V-0	FFC FPC	Contacts Bottom	Solder	Straight	Tin	Solder Retention Zero Insertion Force (ZIF)	Thermoplastic
