MCD Series

Catalog

WIRE-TO-BOARD CONNECTOR, THROUGH HOLE, HEADER, 10, 3.81 MM, TIN PLATED CONTACTS ROHS COMPLIANT: YES

Part	Mounting Type	Contact Mating Finish	Pitch	Pitch	Header Orientation	Current - IEC	Number of Levels	Current - UL	Color	Number of Positions	Voltage - IEC	Termination Style	Positions Per Level	Voltage - UL	Type	Contact Tail Length	Contact Tail Length	Insulation Height	Insulation Height	Material Flammability Rating	Housing Material	Features	Insulation Height [z]	Positions Per Level [custom]
Phoenix Contact 1843156	Through Hole	Tin	3.81 mm	0.15 in	90° Right Angle	8 A	2	8 A	Green	20	320 V	Solder	10	300 V	Header Male Pins Shrouded (4 Side)

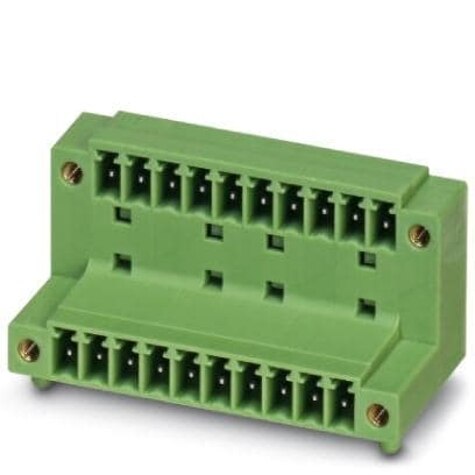

Phoenix Contact 1830198	Through Hole	Tin	3.81 mm	0.15 in	90° Right Angle	8 A	2	8 A	Green	22	320 V	Solder	11	300 V	Header Male Pins Shrouded (4 Side)	0.138 in	3.5 mm	22.71 mm	0.894 in	UL94 V-0	Polyamide (PA) Nylon	Board Guide Mating Flange

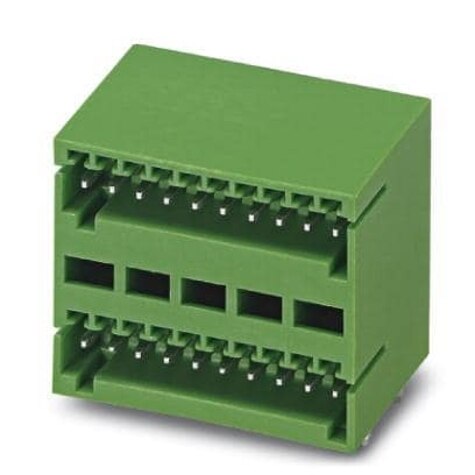

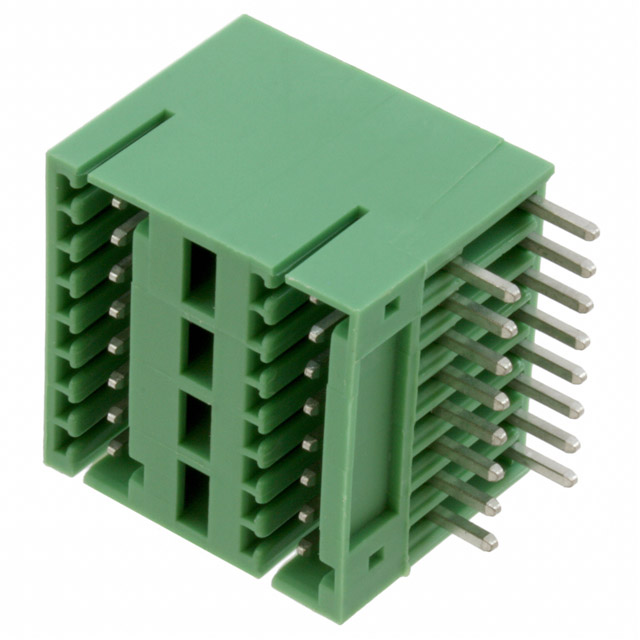

Phoenix Contact 1894862	Through Hole	Tin	2.5 mm	0.098 in	90° Right Angle	4 A	2	4 A	Green	16	320 V	Solder	8	125 V	Header Male Pins Shrouded (4 Side)	0.15 in	3.81 mm	21.89 mm		UL94 V-0	Polyamide (PA) Nylon		0.862 in
Phoenix Contact 1843088	Through Hole	Tin	3.81 mm	0.15 in	90° Right Angle	8 A	2	8 A	Green	6	320 V	Solder	3	300 V	Header Male Pins Shrouded (4 Side)
Phoenix Contact 1732658	Through Hole	Tin	3.81 mm	0.15 in	90° Right Angle	8 A	2	8 A	Black	28	160 V	Solder	14	300 V	Header Male Pins Shrouded (4 Side)	0.138 in	3.5 mm	22.71 mm	0.894 in			Board Guide Mating Flange

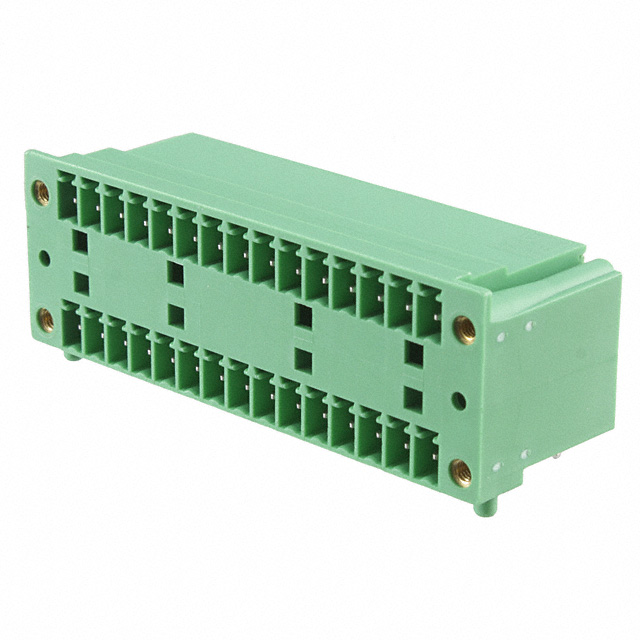

Phoenix Contact 1843059	Through Hole	Tin	3.81 mm	0.15 in	90° Right Angle	8 A	2	8 A	Green	30	320 V	Solder	15	300 V	Header Male Pins Shrouded (4 Side)	0.138 in	3.5 mm	22.71 mm	0.894 in	UL94 V-0	Polyamide (PA) Nylon	Board Guide Mating Flange
Phoenix Contact 1894820	Through Hole	Tin	2.5 mm	0.098 in	90° Right Angle	4 A	2	4 A	Green	8	320 V	Solder	4	125 V	Header Male Pins Shrouded (4 Side)

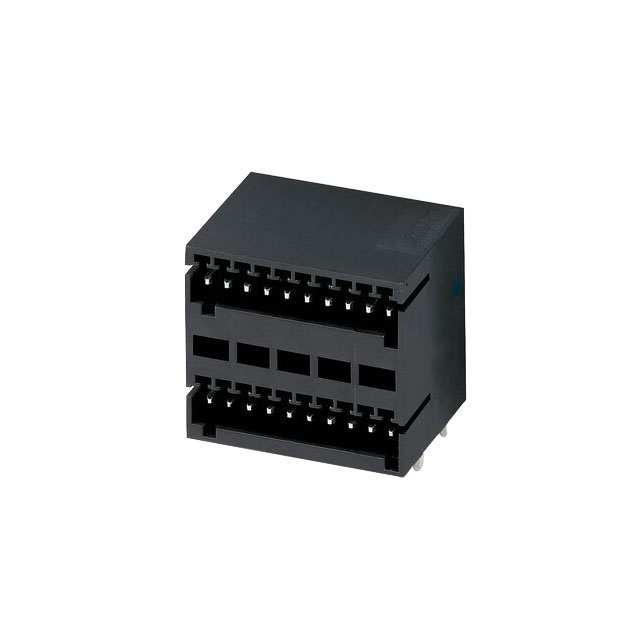

Phoenix Contact 1955141	Through Hole	Tin	2.5 mm	0.098 in	90° Right Angle	4 A	2		Black	24	160 V	Solder	12		Header Male Pins Shrouded (4 Side)	0.15 in	3.81 mm	21.89 mm		UL94 V-0	Polyamide (PA) Nylon		0.862 in
Phoenix Contact 1829976	Through Hole	Tin	3.81 mm	0.15 in	90° Right Angle	8 A	2	8 A	Green	8	320 V	Solder	4	300 V	Header Male Pins Shrouded (4 Side)	0.138 in	3.5 mm	22.71 mm	0.894 in	UL94 V-0	Polyamide (PA) Nylon
Phoenix Contact 1843127	Through Hole	Tin	3.81 mm	0.15 in	90° Right Angle	8 A	2	8 A	Green	14	320 V	Solder		300 V	Header Male Pins Shrouded (4 Side)									7
