1604044 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
RECTANGULAR CONNECTOR, AMP POWER 175 SERIES, 2 CONTACTS, PLUG, RECEPTACLE, CRIMP, 1 ROW
| Part | Connector Style | Color | Voltage Rating | Fastening Type | Material - Insulation | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Mounting Type | Contact Material | Current Rating (Amps) | Contact Finish | Number of Positions | Connector Type | Wire Gauge | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

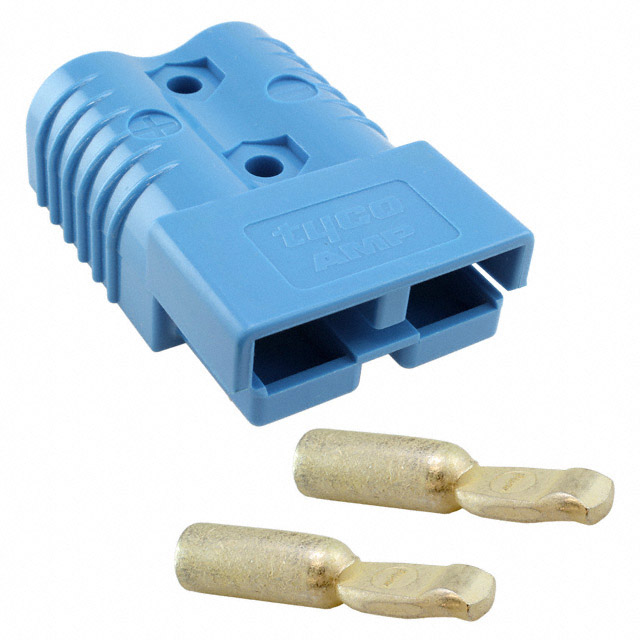

 TE Connectivity Raychem Cable Protection | 2 Poles | Blue | 600 V | Spring Retention | Polycarbonate | PC | -20 C | 105 ░C | Crimp | Free Hanging (In-Line) | Copper Alloy | 175 A | Silver | 2 | Non-Gendered | 4 AWG | 1 |

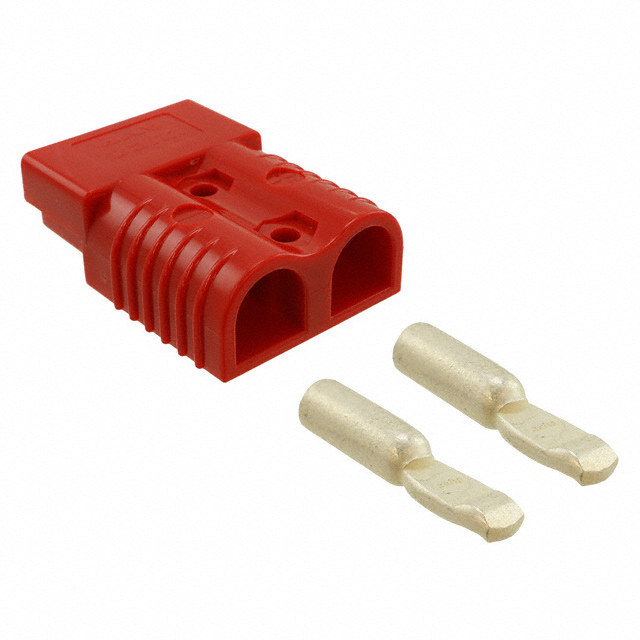

 TE Connectivity Raychem Cable Protection | 2 Poles | Red | 600 V | Spring Retention | Polycarbonate | PC | -20 C | 105 ░C | Crimp | Free Hanging (In-Line) | Copper Alloy | 175 A | Silver | 2 | Non-Gendered | 4 AWG | 1 |
