M52 Series
Manufacturer: Harwin Inc.
Beta
⌘K

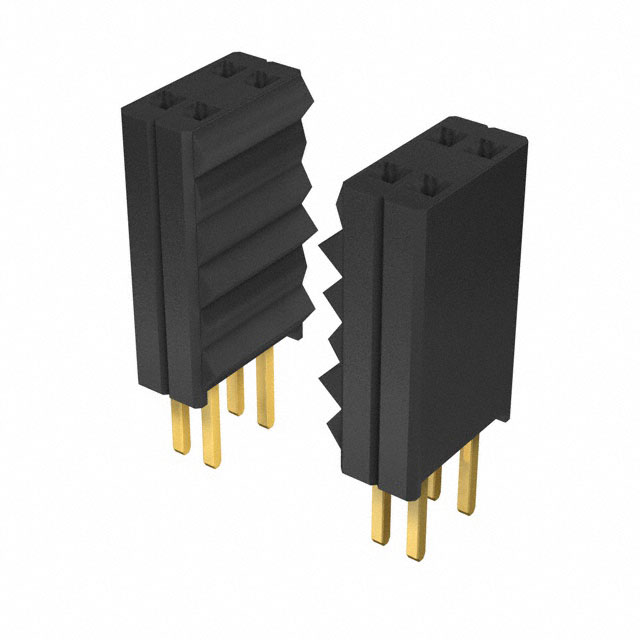

20+20 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES
| Part | Number of Rows [custom] | Insulation Color | Contact Type | Fastening Type | Connector Type | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Termination | Mounting Type | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Height | Insulation Height | Number of Positions | Material Flammability Rating | Contact Length - Post [custom] | Contact Length - Post | Insulation Material | Applications | Contact Shape | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 2 | Black | Forked | Push-Pull | Receptacle | 1.27 mm | 0.05 in | All | Solder | Through Hole | Gold | -40 C | 105 ░C | 0.1 in | 2.54 mm | 0.335 " | 8.51 mm | 40 | UL94 V-0 | 0.11 in | 2.79 mm | ||||
 Harwin Inc. | |||||||||||||||||||||||||
 Harwin Inc. | 2 | Black | Forked | Push-Pull | Receptacle | 1.27 mm | 0.05 in | All | Solder | Through Hole | Gold | -40 C | 105 ░C | 0.1 in | 2.54 mm | 0.335 " | 8.51 mm | 20 | UL94 V-0 | 0.11 in | 2.79 mm | Nylon 9T Polyamide (PA9T) | General Purpose Medical Telecommunications | Rectangular | Phosphor Bronze |
