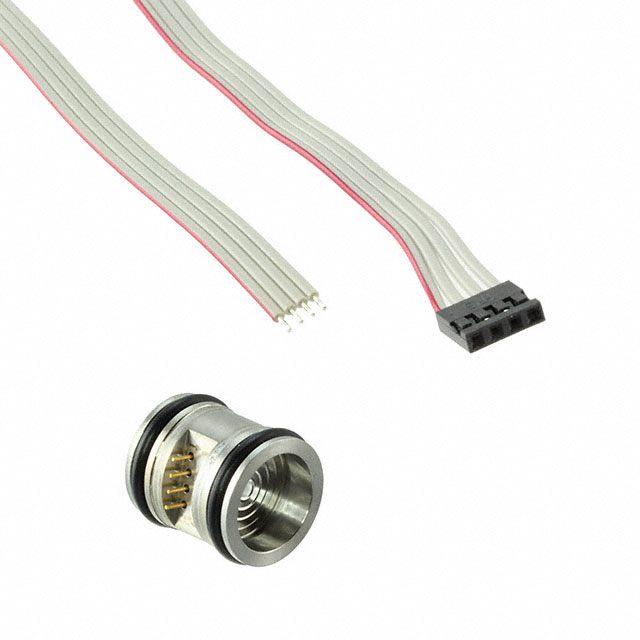

MEAS DP86 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

50 PSID MV DIFFERENTIAL PRESSURE SENSOR

Part	Pressure Type	Port Style	Accuracy	Output Type	Operating Pressure	Operating Pressure	Maximum Pressure	Maximum Pressure	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Output [Max]	Output	Output [Min]	Output	Maximum Pressure [Max]	Maximum Pressure [Max]	Output
TE Connectivity AMP Connectors DP86-050D	Differential	No Port	0.1 %	Wheatstone Bridge	344.74 kPa	50 PSI	150 PSI	1034.21 kPa	Industrial Automation	125 °C	-40 C	Module	Wire Leads	5 V	9.5 V	100 mV	5 V	0 mV
TE Connectivity AMP Connectors DP86-005D	Differential	No Port	0.2 %	Wheatstone Bridge	34.47 kPa	5 PSI	15 PSI	103.42 kPa	Industrial Automation	125 °C	-40 C	Module	Wire Leads	5 V	9.5 V	97.5 mV		0 mV	5 V
TE Connectivity AMP Connectors DP86-300D	Differential	No Port	0.1 %	Wheatstone Bridge	2068.43 kPa	300 PSI	900 PSI	6205.28 kPa	Industrial Automation	125 °C	-40 C	Module	Wire Leads	5 V	9.5 V	100 mV	5 V	0 mV
TE Connectivity AMP Connectors DP86-001D	Differential	No Port	0.3 %	Wheatstone Bridge	6.89 kPa	1 PSI			Industrial Automation	85 °C	-40 C	Module	Wire Leads	5 V	12 V	75 mV		45 mV		10 PSI	68.95 kPa	5V
TE Connectivity AMP Connectors DP86-015D	Differential	No Port	0.1 %	Wheatstone Bridge	103.42 kPa	15 PSI	45 PSI	310.26 kPa	Industrial Automation	125 °C	-40 C	Module	Wire Leads	5 V	9.5 V	190 mV		0.1 V
TE Connectivity AMP Connectors DP86-030D	Differential	No Port	0.1 %	Wheatstone Bridge	206.84 kPa	30 PSI		620.53 kPa	Industrial Automation	125 °C	-40 C	Module	Wire Leads	5 V	9.5 V	100 mV	5 V	0 mV		90 PSI
TE Connectivity AMP Connectors DP86-100D	Differential	No Port	0.1 %	Wheatstone Bridge	689.48 kPa	100 PSI			Industrial Automation	125 °C	-40 C	Module	Wire Leads	5 V	9.5 V	100 mV	5 V	0 mV		300 PSI	2068.43 kPa

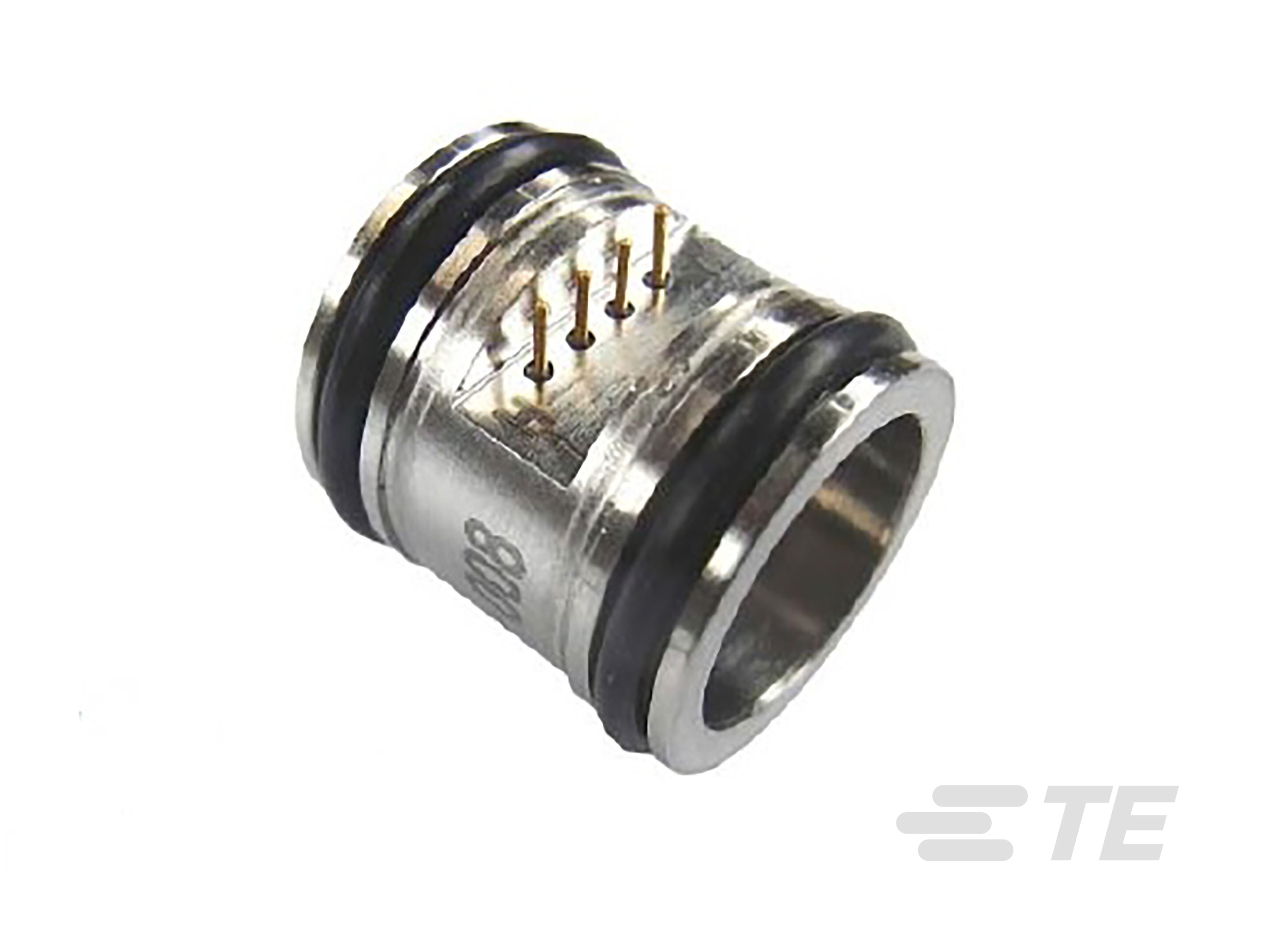

TE Connectivity AMP Connectors DP86-500D	Differential	No Port	0.1 %	Wheatstone Bridge	3447.38 kPa	500 PSI		10342.14 kPa	Industrial Automation	125 °C	-40 C	Module	Wire Leads	5 V	9.5 V	100 mV	5 V	0 mV		1500 PSI
