CPWN Series
Manufacturer: Vishay Dale
Beta
⌘K

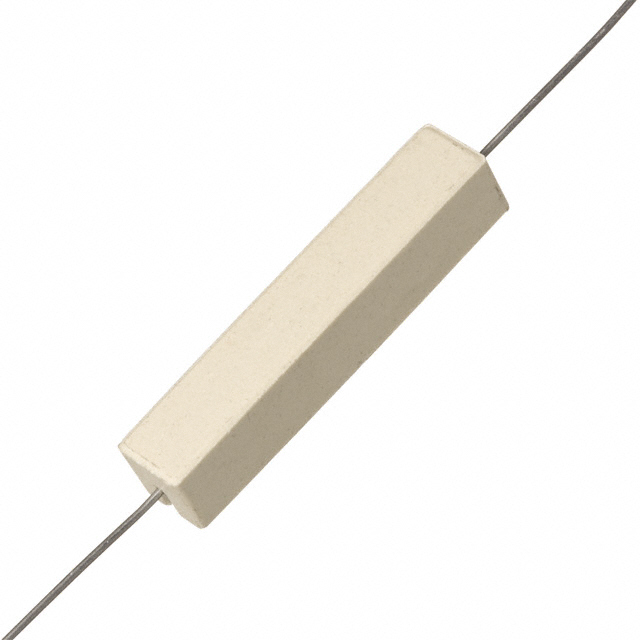

WIREWOUND RESISTORS - THROUGH HOLE CPWN-10 35 5% B31
| Part | Size / Dimension Width | Size / Dimension Length | Features | Operating Temperature (Max) | Operating Temperature (Min) | Power (Watts) | Package / Case | Temperature Coefficient | Resistance | Tolerance | Number of Terminations | Package Name | Composition |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | 0.375 in | 1.875 in | Flame Proof Non-Inductive Pulse Withstanding Safety | 275 °C | -65 °C | 10 W | Axial | 30 ppm/¯C | 35 Ohm | 5 % | 2 | Axial | Wirewound |
 Vishay Dale | 0.375 in | 1.875 in | Flame Proof Non-Inductive Pulse Withstanding Safety | 275 °C | -65 °C | 10 W | Axial | 30 ppm/¯C | 360 Ohm | 5 % | 2 | Axial | Wirewound |
Vishay Dale | 0.5 in | 1.875 in | Flame Proof Non-Inductive Pulse Withstanding Safety | 275 °C | -65 °C | 15 W | Axial | 30 ppm/¯C | 15 Ohm | 2 % | 2 | Axial | Wirewound |
Vishay Dale | 0.375 in | 1.875 in | Flame Proof Non-Inductive Pulse Withstanding Safety | 275 °C | -65 °C | 10 W | Axial | 30 ppm/¯C | 820 Ohm | 5 % | 2 | Axial | Wirewound |
Vishay Dale | 0.5 in | 2.5 in | Flame Proof Non-Inductive Pulse Withstanding Safety | 275 °C | -65 °C | 20 W | Axial | 30 ppm/¯C | 100 Ohms | 5 % | 2 | Axial | Wirewound |
