PT06P Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLUG FMALE 3P GOLD SLDR CUP

Part	Shell Material	Termination	Color	Features	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Shell Size - Insert Length	Shell Size - Insert Width	Insert Material	Primary Material	Shielding	Orientation	Shell Finish	Contact Finish - Mating	Fastening Type	Number of Positions	Mounting Type	Qualification	Applications	Contact Material	Backshell Material	Plating	Backshell Material, Plating
Amphenol Aerospace Operations PT06P-8-3SX	Aluminum	Solder Cup	Olive Drab	Coupling Nut Potted	125 °C	-55 °C	Female Sockets Plug	8 mm	3 mm	Neoprene	Metal	Unshielded	X	Cadmium Olive Drab Chromate	Gold	Bayonet Lock	3	Free Hanging (In-Line)	MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy
Amphenol Aerospace Operations PT06P12-3S-027	Aluminum	Solder Cup	Black		125 °C	-55 °C	Female Sockets Plug	12 mm	3 mm	Neoprene	Metal	Unshielded	N (Normal)	Black Zinc Cobalt	Gold	Bayonet Lock	3	Free Hanging (In-Line)	MIL-DTL-26482 Series I	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Copper Alloy	Aluminum	Black Zinc Cobalt

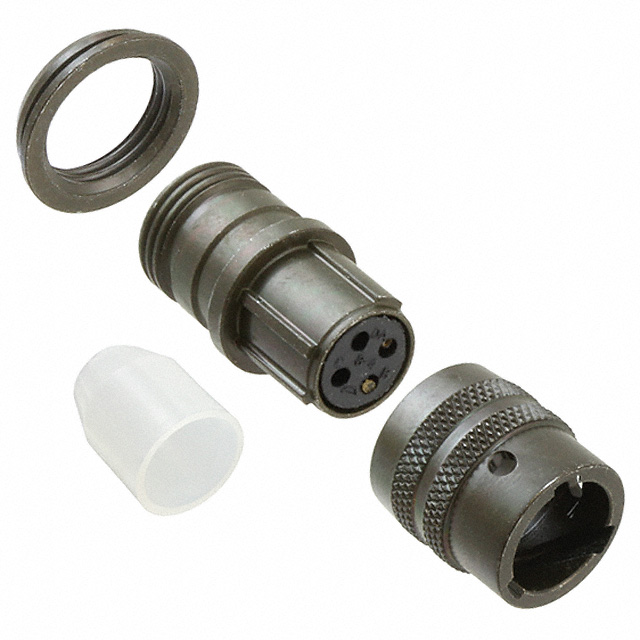

Amphenol Aerospace Operations PT06P-8-4S	Aluminum	Solder Cup	Olive Drab	Coupling Nut Potted	125 °C	-55 °C	Female Sockets Plug	8 mm	4 mm	Neoprene	Metal	Unshielded	N (Normal)	Cadmium Olive Drab Chromate	Gold	Bayonet Lock	4	Free Hanging (In-Line)	MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy			Aluminum Olive Drab Cadmium
Amphenol Aerospace Operations PT06P10-2P	Aluminum	Solder Cup	Olive Drab		125 °C	-55 °C	Male Pins Plug	10 mm	2 mm	Neoprene	Metal	Unshielded	N (Normal)	Cadmium Olive Drab Chromate	Gold	Bayonet Lock	2	Free Hanging (In-Line)	MIL-DTL-26482 Series I	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Copper Alloy			Aluminum Olive Drab Cadmium
Amphenol Aerospace Operations PT06P-8-4SW	Aluminum	Solder Cup	Olive Drab	Coupling Nut Potted	125 °C	-55 °C	Female Sockets Plug	8 mm	4 mm	Neoprene	Metal	Unshielded	W	Cadmium Olive Drab Chromate	Gold	Bayonet Lock	4	Free Hanging (In-Line)	MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy
