7101 Series

Catalog

REED RELAY, SPST-NO, THROUGH HOLE, 1.6 KOHM, 500 MA

Part	Coil Resistance	Contact Form	Operate Time	Features	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Switching Voltage [Max]	Contact Rating (Current)	Termination Style	Must Release Voltage	Mounting Type	Coil Type	Must Operate Voltage	Coil Current
COTO TECHNOLOGY 7101-12-1011	1.6 kOhms	SPST-NO (1 Form A)	1 ms	Diode Electrostatic Shield	0.1 ms	85 °C	-20 ░C	12 VDC	200 VDC 200 VAC	0.5 A	PC Pin	1 VDC	Through Hole	Non Latching	9 VDC	7.5 mA
COTO TECHNOLOGY 7101-12-1110	1.6 kOhms	SPST-NO (1 Form A)	1 ms	Electrostatic Shield	0.1 ms	85 °C	-20 ░C	12 VDC	200 VDC 200 VAC	0.5 A	PC Pin	1 VDC	Through Hole	Non Latching	9 VDC	7.5 mA
COTO TECHNOLOGY 7101-24-1010	4.2 kOhms	SPST-NO (1 Form A)	1 ms	Electrostatic Shield	0.1 ms	85 °C	-20 ░C	24 VDC	200 VDC 200 VAC	0.5 A	PC Pin	2 VDC	Through Hole	Non Latching	18 VDC	5.7 mA

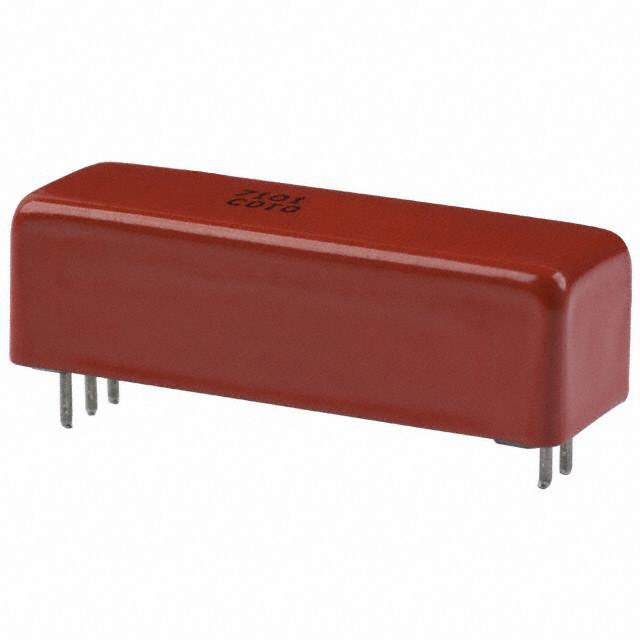

COTO TECHNOLOGY 7101-12-1010	1.6 kOhms	SPST-NO (1 Form A)	1 ms	Electrostatic Shield	0.1 ms	85 °C	-20 ░C	12 VDC	200 VDC 200 VAC	0.5 A	PC Pin	1 VDC	Through Hole	Non Latching	9 VDC	7.5 mA
COTO TECHNOLOGY 7101-24-1100	4.2 kOhms	SPST-NO (1 Form A)	1 ms		0.1 ms	85 °C	-20 ░C	24 VDC	200 VDC 200 VAC	0.5 A	PC Pin	2 VDC	Through Hole	Non Latching	18 VDC	5.7 mA
COTO TECHNOLOGY 7101-12-1001	1.6 kOhms	SPST-NO (1 Form A)	1 ms	Diode	0.1 ms	85 °C	-20 ░C	12 VDC	200 VDC 200 VAC	0.5 A	PC Pin	1 VDC	Through Hole	Non Latching	9 VDC	7.5 mA
COTO TECHNOLOGY 7101-05-1110	300 Ohms	SPST-NO (1 Form A)	1 ms	Electrostatic Shield	0.1 ms	85 °C	-20 ░C	5 VDC	200 VDC 200 VAC	0.5 A	PC Pin	0.4 VDC	Through Hole	Non Latching	3.75 VDC	16.7 mA
COTO TECHNOLOGY 7101-12-1000	1.6 kOhms	SPST-NO (1 Form A)	1 ms		0.1 ms	85 °C	-20 ░C	12 VDC	200 VDC 200 VAC	0.5 A	PC Pin	1 VDC	Through Hole	Non Latching	9 VDC	7.5 mA

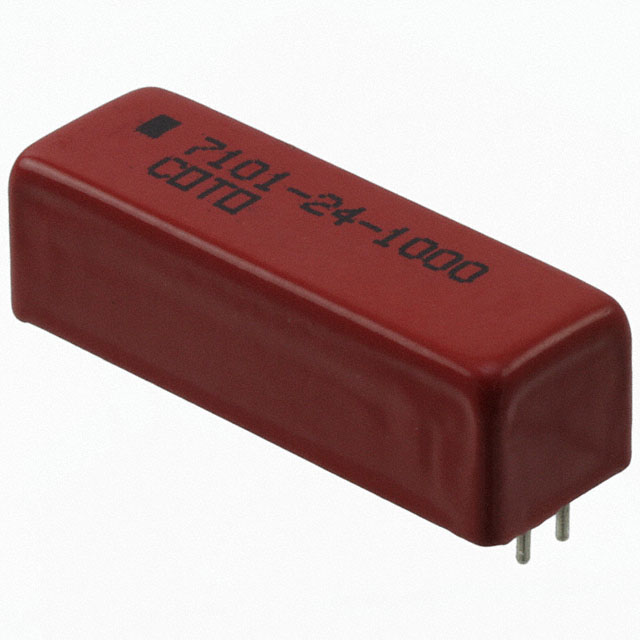

COTO TECHNOLOGY 7101-24-1000	4.2 kOhms	SPST-NO (1 Form A)	1 ms		0.1 ms	85 °C	-20 ░C	24 VDC	200 VDC 200 VAC	0.5 A	PC Pin	2 VDC	Through Hole	Non Latching	18 VDC	5.7 mA

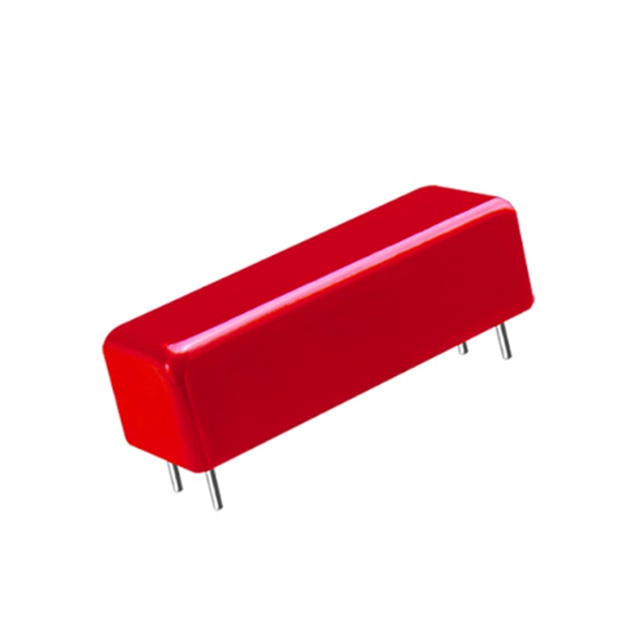

COTO TECHNOLOGY 7101-12-1100	1.6 kOhms	SPST-NO (1 Form A)	1 ms		0.1 ms	85 °C	-20 ░C	12 VDC	200 VDC 200 VAC	0.5 A	PC Pin	1 VDC	Through Hole	Non Latching	9 VDC	7.5 mA
