UT001 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

Catalog

CONN RCPT HSNG MALE 4POS PNL MNT

...

Part	Contact Shape	Ingress Protection Description	Ingress Protection IP Rating	Contact Type	Fastening Type	Housing Color	Insert Material	Shell Size - Insert Width	Shell Size - Insert Length	Mounting Feature	Type	Note	Connector Type	Material Flammability Rating	Shell Finish	Number of Positions	Mounting Type	Shielding	Shell Material	Contact Size	Orientation	Operating Temperature (Min)	Operating Temperature (Max)	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Ingress Protection	Position Types	Shell Size - Insert

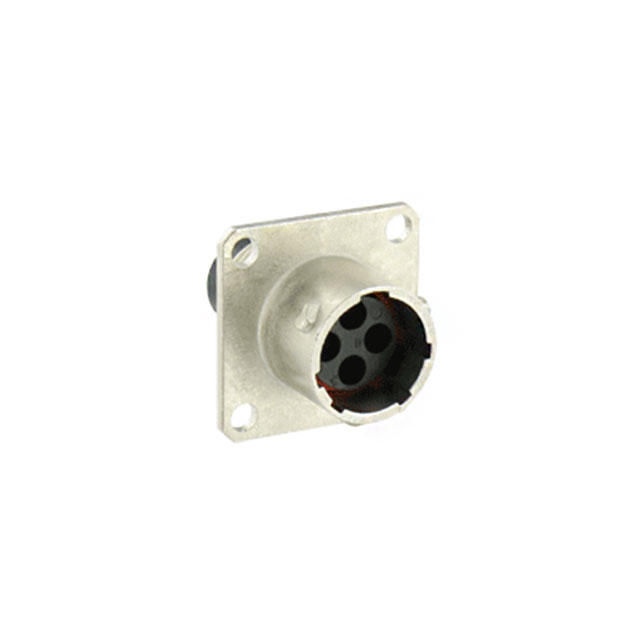

Amphenol Aerospace Operations UT00104PH6	Circular	Dust Tight Water Resistant Waterproof	IP68 IP69K	Crimp Solder	Bayonet Lock	Silver	Nylon 6/6 PA66 Polyamide	4 mm	10 mm	Flange	For Male Pins	Contacts Not Included	Receptacle Housing	UL94 V-0	Nickel	4	Panel Mount	Shielded	Halogen Free Zinc Alloy	16 S	N (Normal)	-40 °C	105 °C
Amphenol Aerospace Operations UT001619SHT	Circular			Crimp	Bayonet Lock	Silver	Glass Filled Thermoplastic			Flange	For Female Sockets	Contacts Not Included	Receptacle Housing	UL94 V-0	Tin	19	Panel Mount	Shielded	Aluminum Alloy	16 S	N (Normal)	-55 °C	125 °C	19	16 S	Environment Resistant

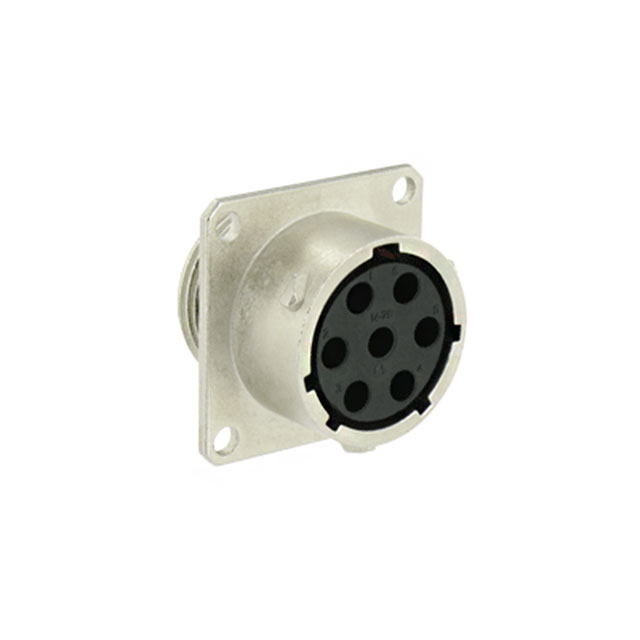

Amphenol Aerospace Operations UT00147SH	Circular	Dust Tight Waterproof	IP67	Crimp Solder	Bayonet Lock	Silver	Nylon 6/6 PA66 Polyamide	7 mm	14 mm	Flange	For Female Sockets	Contacts Not Included	Receptacle Housing	UL94 V-0	Nickel	7	Panel Mount	Shielded	Halogen Free Zinc Alloy	16 S	N (Normal)	-40 °C	105 °C				PE

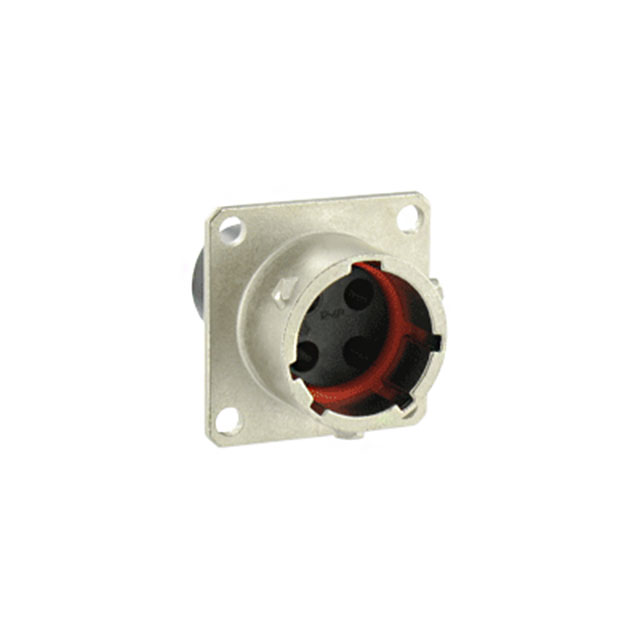

Amphenol Aerospace Operations UT00124PH6	Circular	Dust Tight Water Resistant Waterproof	IP68 IP69K	Crimp Solder	Bayonet Lock	Silver	Nylon 6/6 PA66 Polyamide	4 mm	12 mm	Flange	For Male Pins	Contacts Not Included	Receptacle Housing	UL94 V-0	Nickel	4	Panel Mount	Shielded	Halogen Free Zinc Alloy	16 S	N (Normal)	-40 °C	105 °C				PE
Amphenol Aerospace Operations UT001619PXH	Circular	Dust Tight Waterproof	IP67	Crimp Solder	Bayonet Lock	Silver	Nylon 6/6 PA66 Polyamide			Flange	For Male Pins	Contacts Not Included	Receptacle Housing	UL94 V-0	Nickel	19	Panel Mount	Shielded	Halogen Free Zinc Alloy	16 S	X	-40 °C	105 °C	19	16 S
Amphenol Aerospace Operations UT001619PZH	Circular	Dust Tight Waterproof	IP67	Crimp Solder	Bayonet Lock	Silver	Nylon 6/6 PA66 Polyamide			Flange	For Male Pins	Contacts Not Included	Receptacle Housing	UL94 V-0	Nickel	19	Panel Mount	Shielded	Halogen Free Zinc Alloy	16 S	Z	-40 °C	105 °C	19	16 S
Amphenol Aerospace Operations UT001412SWH	Circular	Dust Tight Waterproof	IP67	Crimp Solder	Bayonet Lock	Silver	Nylon 6/6 PA66 Polyamide	12 mm	14 mm	Flange	For Female Sockets	Contacts Not Included	Receptacle Housing	UL94 V-0	Nickel	12	Panel Mount	Shielded	Halogen Free Zinc Alloy	16 S	W	-40 °C	105 °C
Amphenol Aerospace Operations UT00128PH	Circular	Dust Tight Waterproof	IP67	Crimp Solder	Bayonet Lock	Silver	Nylon 6/6 PA66 Polyamide	8 mm	12 mm	Flange	For Male Pins	Contacts Not Included	Receptacle Housing	UL94 V-0	Nickel	8	Panel Mount	Shielded	Halogen Free Zinc Alloy	16 S	N (Normal)	-40 °C	105 °C
Amphenol Aerospace Operations UT00124SH	Circular	Dust Tight Waterproof	IP67	Crimp Solder	Bayonet Lock	Silver	Nylon 6/6 PA66 Polyamide	4 mm	12 mm	Flange	For Female Sockets	Contacts Not Included	Receptacle Housing	UL94 V-0	Nickel	4	Panel Mount	Shielded	Halogen Free Zinc Alloy	16 S	N (Normal)	-40 °C	105 °C				PE

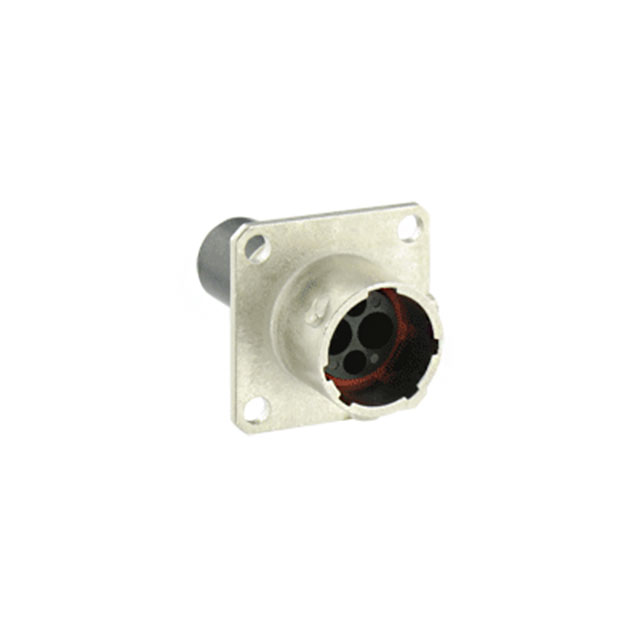

Amphenol Aerospace Operations UT00102W2PH	Circular	Dust Tight Waterproof	IP67	Crimp Solder	Bayonet Lock	Silver	Nylon 6/6 PA66 Polyamide			Flange	For Male Pins	Contacts Not Included	Receptacle Housing	UL94 V-0	Nickel	4	Panel Mount	Shielded	Halogen Free Zinc Alloy	12 20	N (Normal)	-40 °C	105 °C					10-2W2
