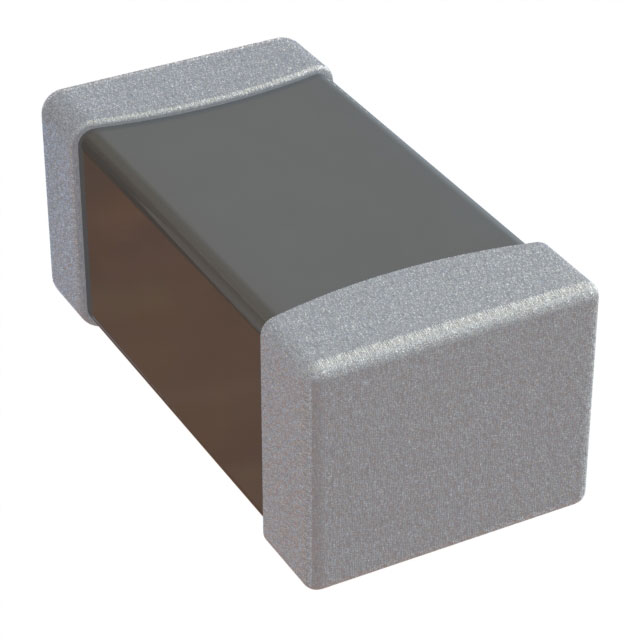

CQ Series

Manufacturer: YAGEO

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT 50 V 8.2PF C0G 0201 TOL 0.1PF

Part	Capacitance	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Thickness (Max)	Thickness (Max) [Max]	Tolerance	Voltage - Rated	Temperature Coefficient	Thickness (Max) [Max] [z]	Size / Dimension [y]	Thickness (Max) [Max]

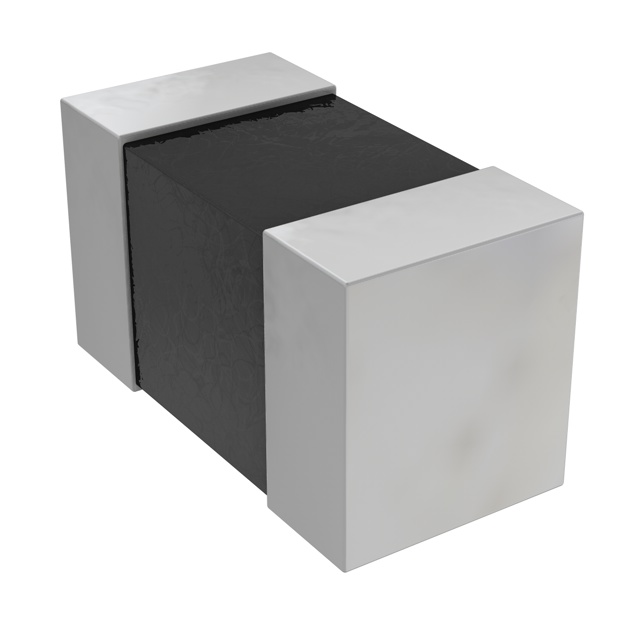

YAGEO CQ0201BRNPO9BN8R2	8.2 pF	High Q	MLCC Surface Mount	-55 C	125 °C	0603 Metric	0201	0.012 in	0.024 in	0.3 mm	0.6 mm	General Purpose	0.33 mm	0.013 "	0.1 pF	50 VDC	C0G NP0
YAGEO CQ0603BRNPO9BNR60	0.6 pF	High Q	MLCC Surface Mount	-55 C	125 °C	1608 Metric	0603		1.6 mm	0.031 in	0.063 "	General Purpose	0.9 mm		0.1 pF	50 VDC	C0G NP0	0.035 in	0.8 mm
YAGEO CQ0603CRNPO9BN6R8	6.8 pF	High Q	MLCC Surface Mount	-55 C	125 °C	1608 Metric	0603		1.6 mm	0.031 in	0.063 "	General Purpose	0.9 mm		0.25 pF	50 VDC	C0G NP0	0.035 in	0.8 mm
YAGEO CQ0201ARNPO9BN1R3	1.3 pF	High Q	MLCC Surface Mount	-55 C	125 °C	0603 Metric	0201	0.012 in	0.024 in	0.3 mm	0.6 mm	General Purpose	0.33 mm	0.013 "	0.05 pF	50 VDC	C0G NP0
YAGEO CQ0402BRNPO9BN1R8	1.8 pF	High Q	MLCC Surface Mount	-55 C	125 °C		0402 (1005 Metric)	0.5 mm	1 mm	0.02 in	0.039 "	General Purpose	0.55 mm	0.022 in	0.1 pF	50 VDC	C0G NP0
YAGEO CQ0402CRNPO9BN5R1	5.1 pF	High Q	MLCC Surface Mount	-55 C	125 °C		0402 (1005 Metric)	0.5 mm	1 mm	0.02 in	0.039 "	General Purpose	0.55 mm	0.022 in	0.25 pF	50 VDC	C0G NP0
YAGEO CQ0201BRNPO8BN5R0	5 pF	High Q	MLCC Surface Mount	-55 C	125 °C	0603 Metric	0201	0.012 in	0.024 in	0.3 mm	0.6 mm	General Purpose	0.33 mm	0.013 "	0.1 pF	25 VDC	C0G NP0
YAGEO CQ0201BRNPO8BN2R2	2.2 pF	High Q	MLCC Surface Mount	-55 C	125 °C	0603 Metric	0201	0.012 in	0.024 in	0.3 mm	0.6 mm	General Purpose	0.33 mm	0.013 "	0.1 pF	25 VDC	C0G NP0
YAGEO CQ0402BRNPO9BNR20	0.2 pF	High Q	MLCC Surface Mount	-55 C	125 °C		0402 (1005 Metric)	0.5 mm	1 mm	0.02 in	0.039 "	General Purpose	0.55 mm	0.022 in	0.1 pF	50 VDC	C0G NP0
YAGEO CQ0100BRNPO8BN5R0	5 pF	High Q	MLCC Surface Mount	-55 C	125 °C		01005 (0402 Metric)	0.2 mm	0.4 mm	0.008 in	0.016 in	General Purpose		0.009 "	0.1 pF	25 VDC	C0G NP0			0.22 mm
