83000 Series

Catalog

HOOK-UP STRND 30AWG YELLOW

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Jacket Color	Cable Type	Features	Qualification	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Length [x]	Length [x]	Wire Gauge	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Length	Length	Operating Temperature
Belden Inc. 83000 004100	0.25 mm	0.01 in	Tetrafluoroethylene (TFE)	Yellow	Hook-Up	High Temperature	MIL-W-16878/4	38	7	UL Style 1213	100 ft	30.5 m	30 AWG	600 V	0.032 in	0.81 mm	Copper Silver Coated
Belden Inc. 83000 0051000	0.25 mm	0.01 in	Tetrafluoroethylene (TFE)	Green	Hook-Up	High Temperature	MIL-W-16878/4	38	7	UL Style 1213			30 AWG	600 V	0.032 in	0.81 mm	Copper Silver Coated	304.8 m	1000 ft
Belden Inc. 83000 009100	0.25 mm	0.01 in	Tetrafluoroethylene (TFE)	White	Hook-Up	High Temperature	MIL-W-16878/4	38	7	UL Style 1213	100 ft	30.5 m	30 AWG	600 V	0.032 in	0.81 mm	Copper Silver Coated			200 °C
Belden Inc. 83000 006100	0.25 mm	0.01 in	Tetrafluoroethylene (TFE)	Blue	Hook-Up	High Temperature	MIL-W-16878/4	38	7	UL Style 1213	100 ft	30.5 m	30 AWG	600 V	0.032 in	0.81 mm	Copper Silver Coated			200 °C
Belden Inc. 83000 0041000	0.25 mm	0.01 in	Tetrafluoroethylene (TFE)	Yellow	Hook-Up	High Temperature	MIL-W-16878/4	38	7	UL Style 1213			30 AWG	600 V	0.032 in	0.81 mm	Copper Silver Coated	304.8 m	1000 ft
Belden Inc. 83000 0021000	0.25 mm	0.01 in	Tetrafluoroethylene (TFE)	Red	Hook-Up	High Temperature	MIL-W-16878/4	38	7	UL Style 1213			30 AWG	600 V	0.032 in	0.81 mm	Copper Silver Coated	304.8 m	1000 ft
Belden Inc. 83000 0061000	0.25 mm	0.01 in	Tetrafluoroethylene (TFE)	Blue	Hook-Up	High Temperature	MIL-W-16878/4	38	7	UL Style 1213			30 AWG	600 V	0.032 in	0.81 mm	Copper Silver Coated	304.8 m	1000 ft

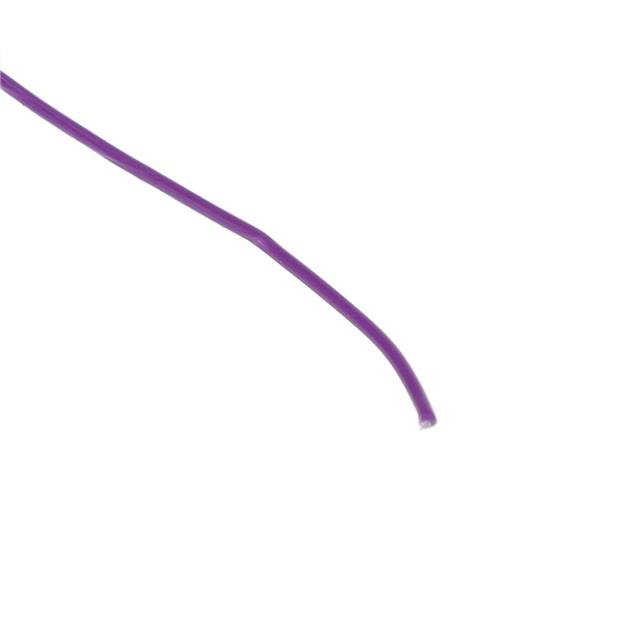

Belden Inc. 83000 007100	0.25 mm	0.01 in	Tetrafluoroethylene (TFE)	Violet	Hook-Up	High Temperature	MIL-W-16878/4	38	7	UL Style 1213	100 ft	30.5 m	30 AWG	600 V	0.032 in	0.81 mm	Copper Silver Coated
Belden Inc. 83000 005100	0.25 mm	0.01 in	Tetrafluoroethylene (TFE)	Green	Hook-Up	High Temperature	MIL-W-16878/4	38	7	UL Style 1213	100 ft	30.5 m	30 AWG	600 V	0.032 in	0.81 mm	Copper Silver Coated			200 °C
