104060 Series
Manufacturer: Molex
Beta
⌘K

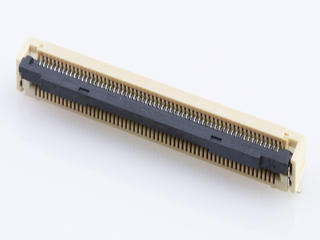

0.50MM PITCH EASY-ON FFC/FPC CONNECTOR, SURFACE MOUNT, ZIF, EASY-ON FRONT FLIP, DOUBLE BOTTOM CONTACT, 2.50MM HEIGHT, ACCEPTS FFC/FPC WITH EAR-TABS, 60 CIRCUITS
| Part | Actuator Color | Housing Color | Current Rating (Amps) | Height Above Board [z] | Height Above Board [z] | FFC, FCB Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Material Flammability Rating | Pitch | Pitch | Connector/Contact Type | Housing Material | Actuator Material | Number of Positions | Cable End Type | Locking Feature | Mounting Type | Contact Finish | Termination | Flat Flex Type | Features | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Black | Beige | 500 mA | 0.098 in | 2.5 mm | 0.3 mm | 85 °C | -20 ░C | 50 V | UL94 V-0 | 0.02 " | 0.5 mm | Contacts Bottom | Glass Filled Liquid Crystal Polymer (LCP) | Polybutylene Terephthalate (PBT) Glass Filled | 60 | Tabbed | Flip Lock | Right Angle Surface Mount | Gold | Solder | FFC FPC | Solder Retention Zero Insertion Force (ZIF) | Phosphor Bronze |
