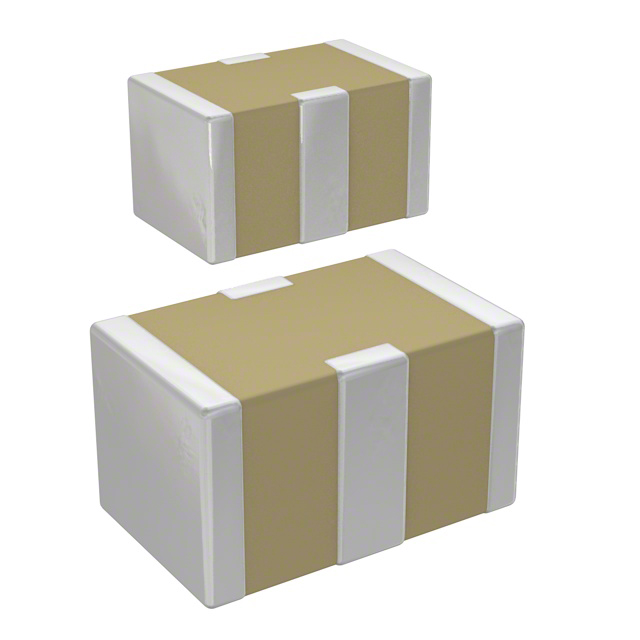

W2H Series

Catalog

FEED THROUGH CAPACITORS 50V 1000PF X7R

Part	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Current	Voltage - Rated	Tolerance [Max]	Tolerance [Min]	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Mounting Type	DC Resistance (DCR) (Max) [Max]
KYOCERA AVX W2H15C1028AT1F	4 PC Pad	0805 (2012 Metric)	-55 C	125 °C	1.14 mm	0.045 in	1 A	50 VDC	50 %	-20 %	0.001 µF	0.049 " 1.25 mm	0.079 in 2.01 mm	X7R	Surface Mount	150 mOhm
KYOCERA AVX W2H15C2238AT1A	4 PC Pad	0805 (2012 Metric)	-55 C	125 °C	1.14 mm	0.045 in	1 A	50 VDC	50 %	-20 %	0.022 µF	0.049 " 1.25 mm	0.079 in 2.01 mm	X7R	Surface Mount	150 mOhm
