9007 Series

Catalog

RELAY REED SPST 500MA 5V

Part	Coil Resistance	Coil Current	Contact Form	Termination Style	Contact Rating (Current)	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Features	Must Release Voltage	Mounting Type	Release Time	Switching Voltage [Max]	Coil Type	Must Operate Voltage
COTO TECHNOLOGY 9007-05-01	500 Ohms	10 mA	SPST-NO (1 Form A)	PC Pin	0.5 A	500 µs	85 °C	-20 ░C	5 VDC	Diode	0.4 VDC	Through Hole	0.2 ms	200 VDC 200 VAC	Non Latching	3.75 VDC
COTO TECHNOLOGY 9007-12-10	1 kOhms	12 mA	SPST-NO (1 Form A)	PC Pin	0.5 A	500 µs	85 °C	-20 ░C	12 VDC	EMI Shielded	1 VDC	Through Hole	0.2 ms	200 VDC 200 VAC	Non Latching	9 VDC

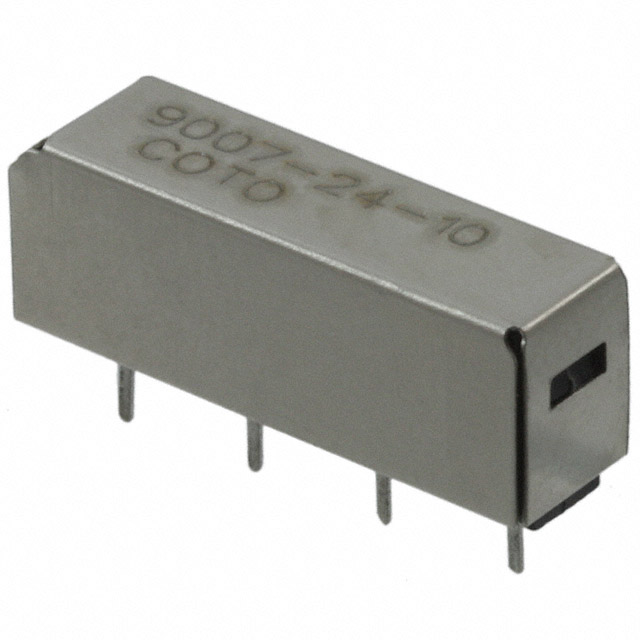

COTO TECHNOLOGY 9007-24-10	2 kOhms	12 mA	SPST-NO (1 Form A)	PC Pin	0.5 A	500 µs	85 °C	-20 ░C	24 VDC	EMI Shielded	2 VDC	Through Hole	0.2 ms	200 VDC 200 VAC	Non Latching	18 VDC
COTO TECHNOLOGY 9007-12-40	2 kOhms	6 mA	SPST-NO (1 Form A)	PC Pin	0.5 A	500 µs	85 °C	-20 ░C	12 VDC	EMI Shielded	1 VDC	Through Hole	0.2 ms	200 VDC 200 VAC	Non Latching	9 VDC
COTO TECHNOLOGY 9007-05-00	500 Ohms	10 mA	SPST-NO (1 Form A)	PC Pin	0.5 A	500 µs	85 °C	-20 ░C	5 VDC		0.4 VDC	Through Hole	0.2 ms	200 VDC 200 VAC	Non Latching	3.75 VDC
COTO TECHNOLOGY 9007-05-40	1 kOhms	5 mA	SPST-NO (1 Form A)	PC Pin	0.5 A	500 µs	85 °C	-20 ░C	5 VDC	EMI Shielded	0.4 VDC	Through Hole	0.2 ms	200 VDC 200 VAC	Non Latching	3.75 VDC

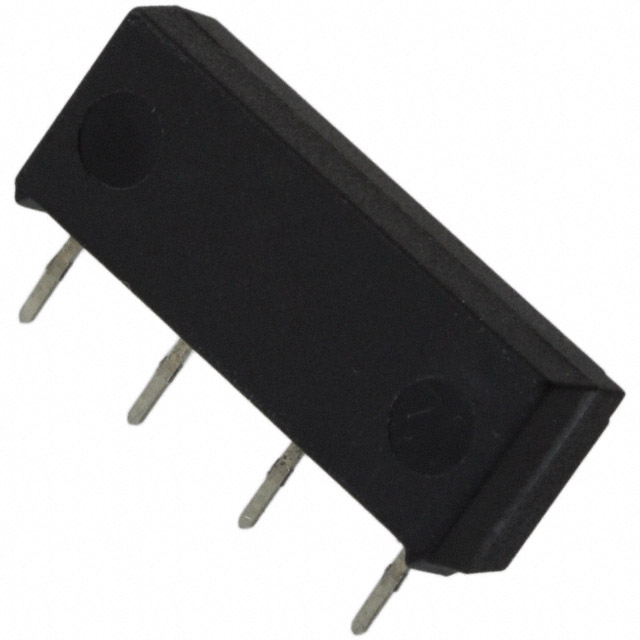

COTO TECHNOLOGY 9007-24-01	2 kOhms	12 mA	SPST-NO (1 Form A)	PC Pin	0.5 A	500 µs	85 °C	-20 ░C	24 VDC	Diode	2 VDC	Through Hole	0.2 ms	200 VDC 200 VAC	Non Latching	18 VDC
COTO TECHNOLOGY 9007-12-00	1 kOhms	12 mA	SPST-NO (1 Form A)	PC Pin	0.5 A	500 µs	85 °C	-20 ░C	12 VDC		1 VDC	Through Hole	0.2 ms	200 VDC 200 VAC	Non Latching	9 VDC
COTO TECHNOLOGY 9007-05-11	500 Ohms	10 mA	SPST-NO (1 Form A)	PC Pin	0.5 A	500 µs	85 °C	-20 ░C	5 VDC	Diode EMI Shielded	0.4 VDC	Through Hole	0.2 ms	200 VDC 200 VAC	Non Latching	3.75 VDC
COTO TECHNOLOGY 9007-05-10	500 Ohms	10 mA	SPST-NO (1 Form A)	PC Pin	0.5 A	500 µs	85 °C	-20 ░C	5 VDC	EMI Shielded	0.4 VDC	Through Hole	0.2 ms	200 VDC 200 VAC	Non Latching	3.75 VDC
