OTX-315 Series

Catalog

REMOTE MS 315MHZ OOK AM 8BTN HH TX FCC

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Applications	Frequency	Interface	Interface	Function	Modulation or Protocol	Features	Data Rate (Max) [Max]

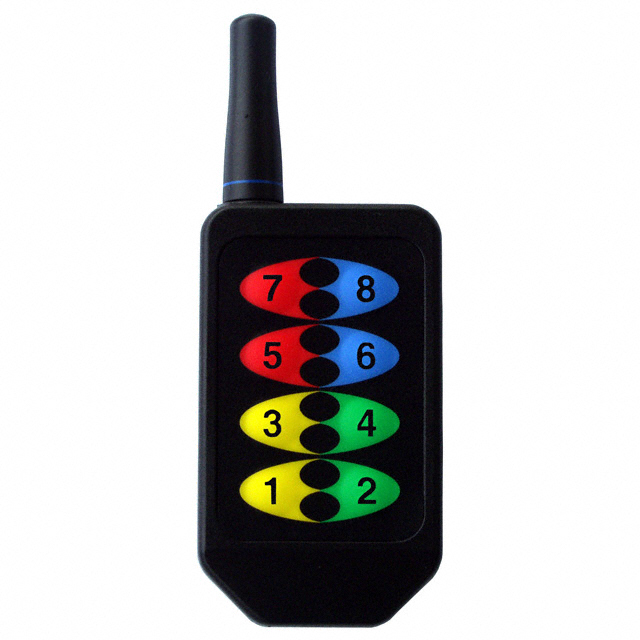

TE Connectivity AMP Connectors OTX-315-HH-LR8-MS	3.6 V	2.1 V	1000 ft. Operating Distance 8 Buttons	General Remote Control Home Automation RKE	315 MHz	Handheld	8 Button	Transmitter	ASK OOK
TE Connectivity AMP Connectors OTX-315-HH-KF3-MS			3 Buttons	Home Automation Keyless Entry Wireless Audio/Video	315 MHz	Handheld 3 Button		Transmitter		1000 ft.	9.6 kbps

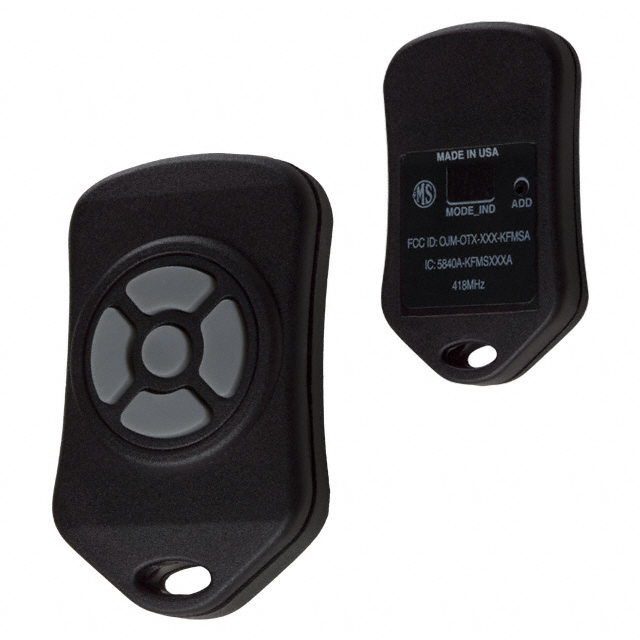

TE Connectivity AMP Connectors OTX-315-HH-KF5-MS	3.6 V	2.1 V	5 Buttons	Home Automation Keyless Entry Wireless Audio/Video	315 MHz	Handheld	5 Button	Transmitter		1000 ft.	9.6 kbps
TE Connectivity AMP Connectors OTX-315-HH-KF1-MS	3.6 V	2.1 V	1 Button	Home Automation Keyless Entry Wireless Audio/Video	315 MHz	Handheld	1 Button	Transmitter		1000 ft.	9.6 kbps

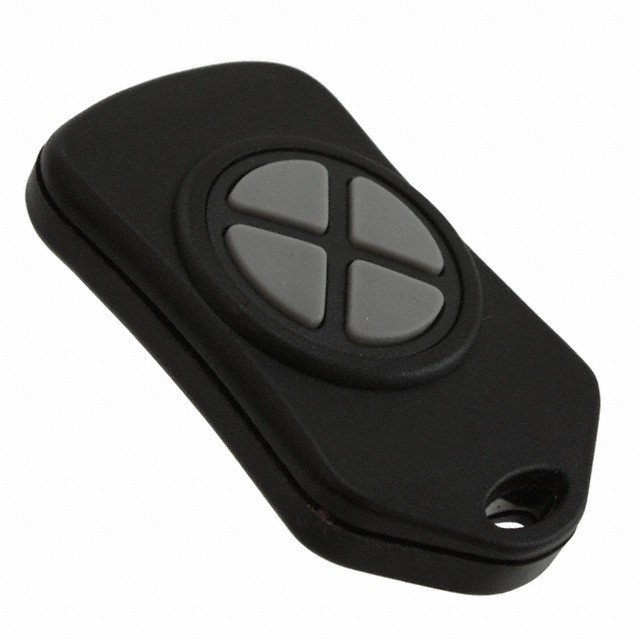

TE Connectivity AMP Connectors OTX-315-HH-KF4-MS	3.6 V	2.1 V	4 Buttons	Home Automation Keyless Entry Wireless Audio/Video	315 MHz	Handheld 4 Button		Transmitter		1000 ft.	9.6 kbps

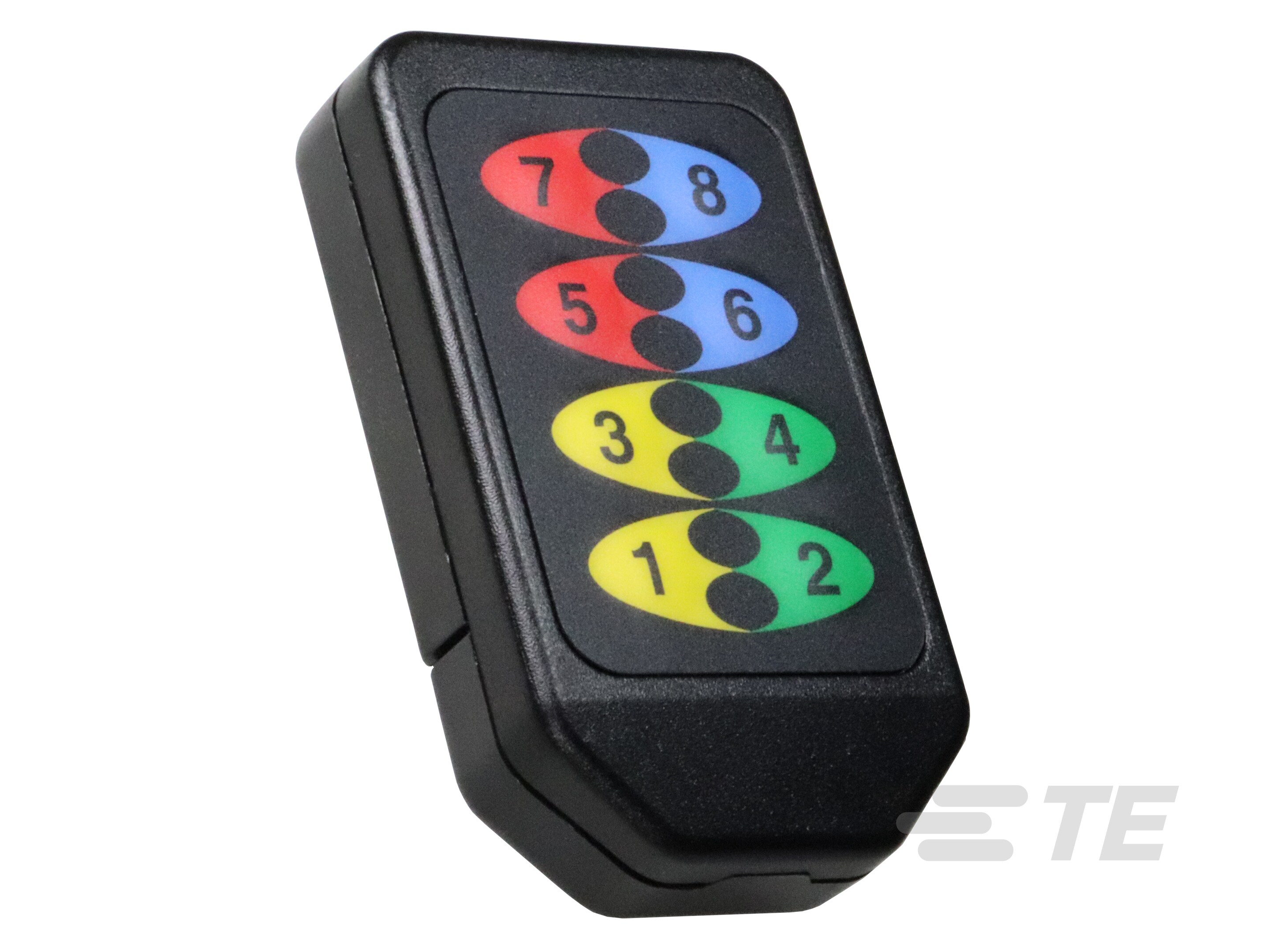

TE Connectivity AMP Connectors OTX-315-HH-CP8-MS	3.6 V	2.1 V	8 Buttons	General Remote Control Home Automation RKE	315 MHz	Handheld	8 Button	Transmitter	ASK OOK	750 ft.
