TC Series

Catalog

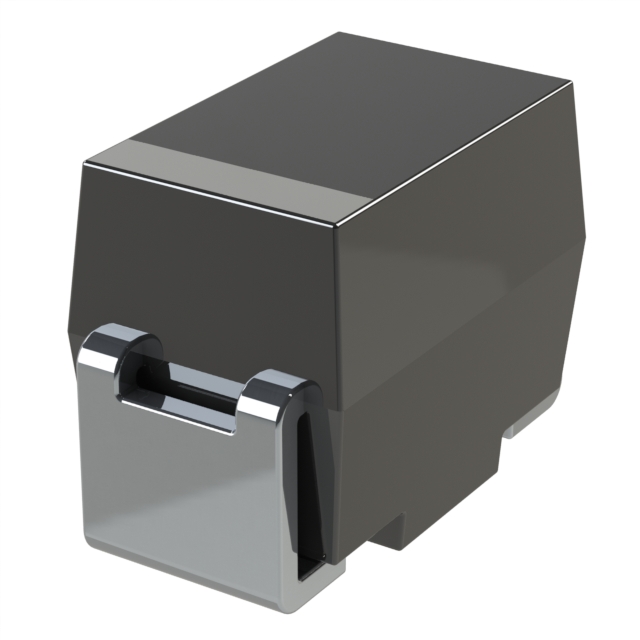

TANTALUM CAPACITORS - SOLID SMD 10 VDC 3.3 UF 1206 2 0 % ESR=4.9 MOHMS

Part	Voltage - Rated	Manufacturer Size Code	Package / Case	ESR (Equivalent Series Resistance)	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Type	Mounting Type	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KYOCERA AVX TCA1A335M8R	10 V	A	1206 (3216 Metric)	4.9 Ohm	3.3 µF	1.8 mm	0.071 in	-55 C	125 °C	0.063 "	0.126 "	3.2 mm	1.6 mm	20 %	Molded	Surface Mount	General Purpose
KYOCERA AVX TCP0J226M8R	6.3 VDC	P	0805		22 µF			-55 C	125 °C	0.049 "	0.079 in	2 mm	1.25 mm	20 %	Molded	Surface Mount	General Purpose	1.2 mm	0.047 "
KYOCERA AVX TCP0G106M8R	4 V	P	0805	9.3 Ohm	10 µF			-55 C	125 °C	0.049 "	0.079 in	2 mm	1.25 mm	20 %	Molded	Surface Mount	General Purpose	1.2 mm	0.047 "
