CGS ER Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

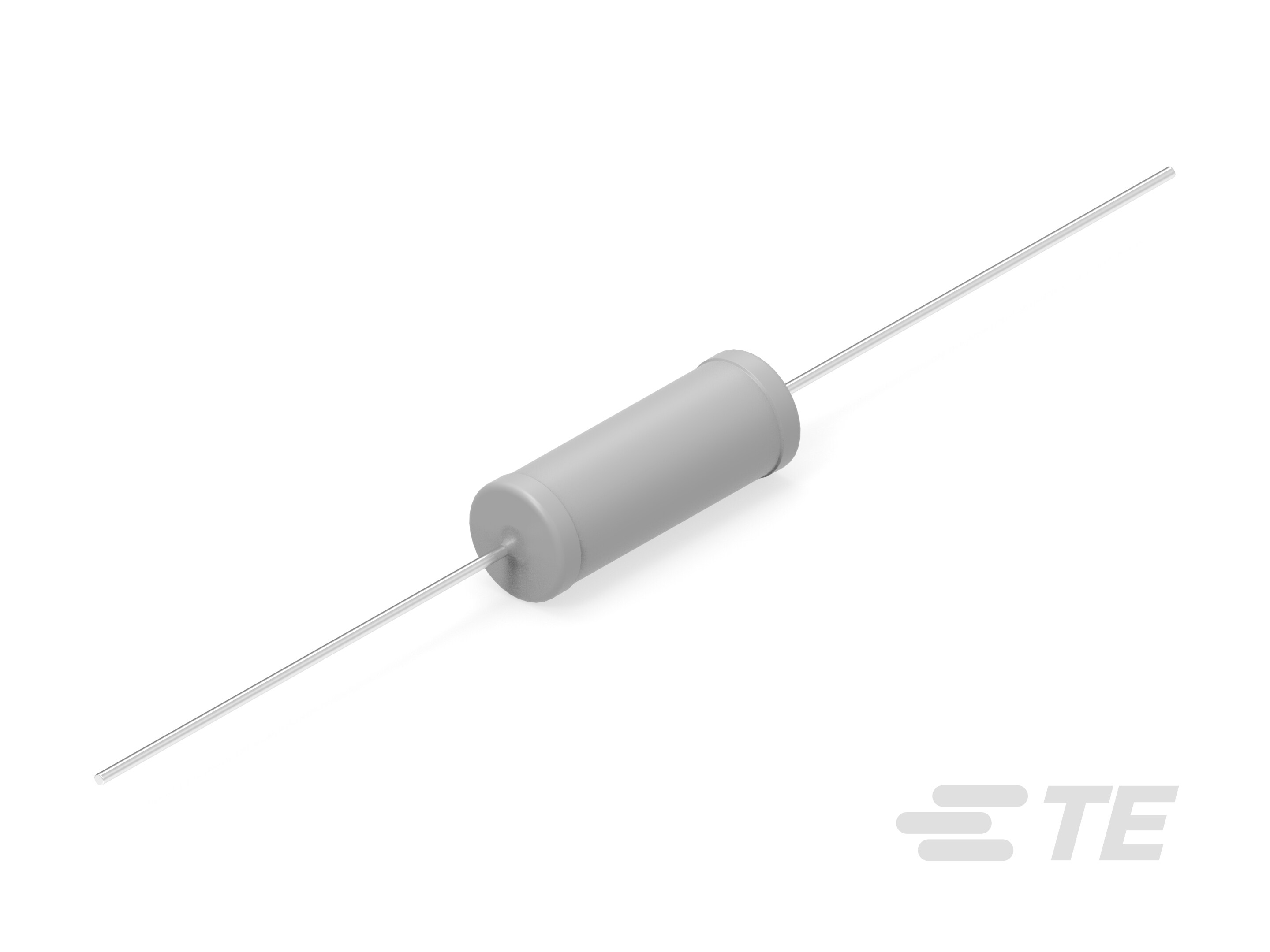

WIREWOUND RESISTORS - THROUGH HOLE ER74 R15 5% AMMO PK

...

Part	Supplier Device Package	Tolerance	Number of Terminations [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Resistance	Power (Watts)	Composition	Package / Case	Temperature Coefficient [Max]	Temperature Coefficient [Min]
TE Connectivity AMP Connectors ER74R15JT	Axial	5 %	2	200 °C	-55 C	200 ppm/°C	6 mm	13.5 mm	0.531 in	0.236 in	0.15 Ohms	3 W	Wirewound	Axial
TE Connectivity AMP Connectors ER583R9JT	Axial	5 %	2	200 °C	-55 C		8 mm	22.2 mm	0.874 "	0.315 in	3.9 Ohms	7 W	Wirewound	Axial	60 ppm/°C	0
TE Connectivity AMP Connectors ER58R05JT	Axial	5 %	2	200 °C	-55 C	200 ppm/°C	8 mm	22.2 mm	0.874 "	0.315 in	0.05 Ohms	7 W	Wirewound	Axial
TE Connectivity AMP Connectors ER74R47FT	Axial	1 %	2	200 °C	-55 C	200 ppm/°C	6 mm	13.5 mm	0.531 in	0.236 in	470 mOhms	3 W	Wirewound	Axial
TE Connectivity AMP Connectors ER74R047JT	Axial	5 %	2	200 °C	-55 C	200 ppm/°C	6 mm	13.5 mm	0.531 in	0.236 in	47 mOhms	3 W	Wirewound	Axial
TE Connectivity AMP Connectors ER74R47JT	Axial	5 %	2	200 °C	-55 C	200 ppm/°C	6 mm	13.5 mm	0.531 in	0.236 in	470 mOhms	3 W	Wirewound	Axial
TE Connectivity AMP Connectors ER74R03JT	Axial	5 %	2	200 °C	-55 C	200 ppm/°C	6 mm	13.5 mm	0.531 in	0.236 in	0.03 Ohms	3 W	Wirewound	Axial
TE Connectivity AMP Connectors ER744R7JT	Axial	5 %	2	200 °C	-55 C		6 mm	13.5 mm	0.531 in	0.236 in	4.7 Ohms	3 W	Wirewound	Axial	60 ppm/°C	0
TE Connectivity AMP Connectors ER74R22KT	Axial	10 %	2	200 °C	-55 C	200 ppm/°C	6 mm	13.5 mm	0.531 in	0.236 in	220 mOhms	3 W	Wirewound	Axial
TE Connectivity AMP Connectors ER5822RJT	Axial	5 %	2	200 °C	-55 C		8 mm	22.2 mm	0.874 "	0.315 in	22 Ohms	7 W	Wirewound	Axial	60 ppm/°C	0
