A3UL-TBW Series

Manufacturer: Omron Automation and Safety

Catalog

SWITCH PUSHBUTTON SPDT 0.1A 30V

Part	Electrical Life	Mechanical Life	Circuit	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Type	Ingress Protection	Mounting Type	Illumination Type, Color	Current Rating (Amps)	Actuator Marking	Color - Actuator/Cap	Switch Function	Illumination Voltage (Nominal)

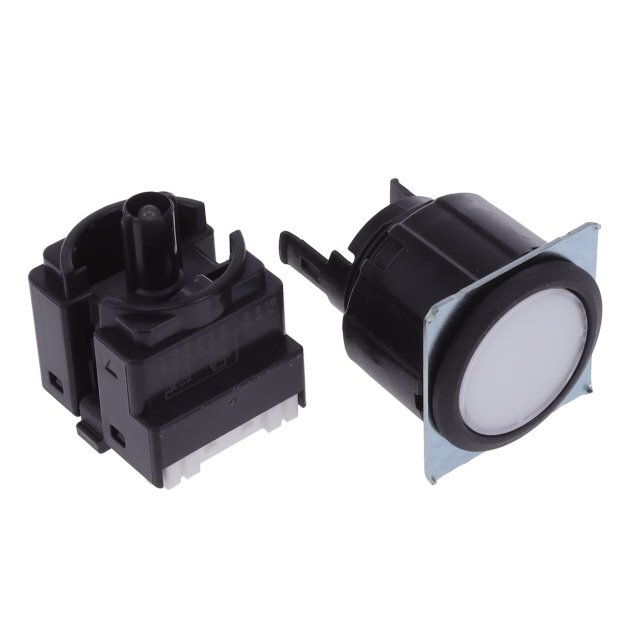

Omron Automation and Safety A3UL-TBW-1A1C-M	200000 Cycles	1000000 Cycles	SPDT	25.2 mm	30 V	Button Flush Round	55 °C	-20 ░C	Connector	Illuminated Standard	IP40	Panel Mount Front	LED White	100 mA	No Marking	Clear	On-Mom	5 VDC
Omron Automation and Safety A3UL-TBW-2A2C-M	200000 Cycles	1000000 Cycles	DPDT	25.2 mm	30 V	Button Flush Round	55 °C	-20 ░C	Connector	Illuminated Standard	IP40	Panel Mount Front	LED White	100 mA	No Marking	Clear	On-Mom	12 VDC
Omron Automation and Safety A3UL-TBW-2A1C-5M	200000 Cycles	1000000 Cycles	SPDT	25.2 mm	30 V	Button Flush Round	55 °C	-20 ░C	Connector	Illuminated Standard	IP65	Panel Mount Front	LED White	100 mA	No Marking	Clear	On-Mom	12 VDC

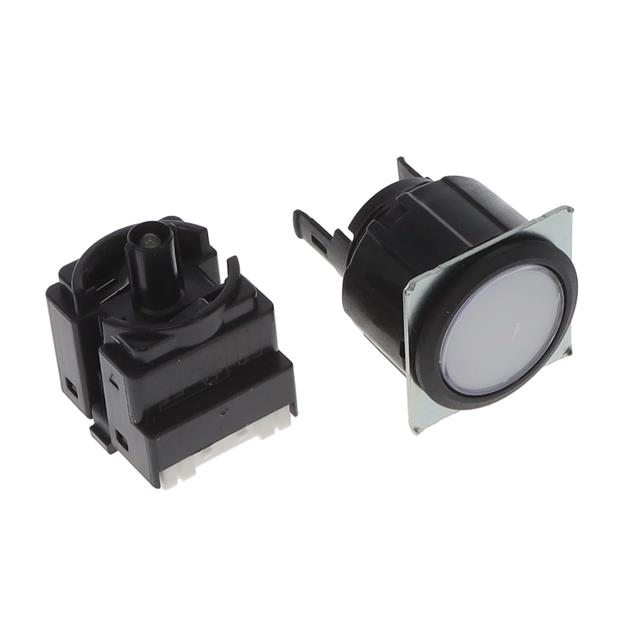

Omron Automation and Safety A3UL-TBW-1A2C-5M	200000 Cycles	1000000 Cycles	DPDT	25.2 mm	30 V	Button Flush Round	55 °C	-20 ░C	Connector	Illuminated Standard	IP65	Panel Mount Front	LED White	100 mA	No Marking	Clear	On-Mom	5 VDC
Omron Automation and Safety A3UL-TBW-2A2C-5M	200000 Cycles	1000000 Cycles	DPDT	25.2 mm	30 V	Button Flush Round	55 °C	-20 ░C	Connector	Illuminated Standard	IP65	Panel Mount Front	LED White	100 mA	No Marking	Clear	On-Mom	12 VDC
Omron Automation and Safety A3UL-TBW-2A1C-M	200000 Cycles	1000000 Cycles	SPDT	25.2 mm	30 V	Button Flush Round	55 °C	-20 ░C	Connector	Illuminated Standard	IP40	Panel Mount Front	LED White	100 mA	No Marking	Clear	On-Mom	12 VDC
Omron Automation and Safety A3UL-TBW-1A1C-5M	200000 Cycles	1000000 Cycles	SPDT	25.2 mm	30 V	Button Flush Round	55 °C	-20 ░C	Connector	Illuminated Standard	IP65	Panel Mount Front	LED White	100 mA	No Marking	Clear	On-Mom	5 VDC
Omron Automation and Safety A3UL-TBW-1A2C-M	200000 Cycles	1000000 Cycles	DPDT	25.2 mm	30 V	Button Flush Round	55 °C	-20 ░C	Connector	Illuminated Standard	IP40	Panel Mount Front	LED White	100 mA	No Marking	Clear	On-Mom	5 VDC
