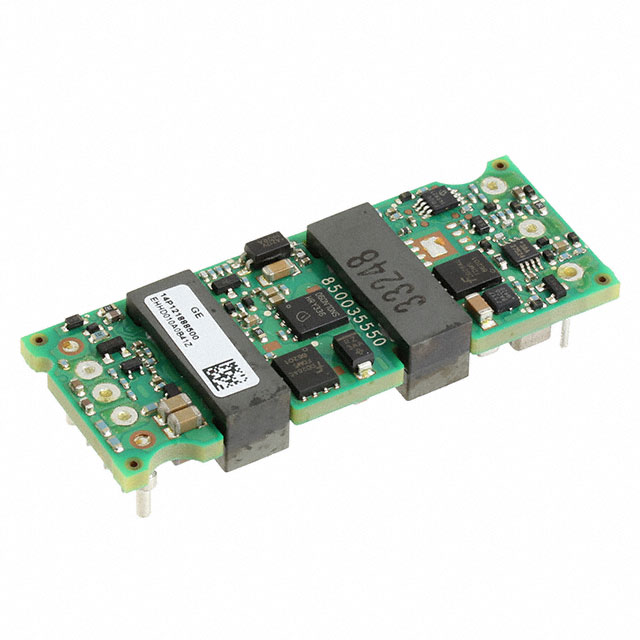

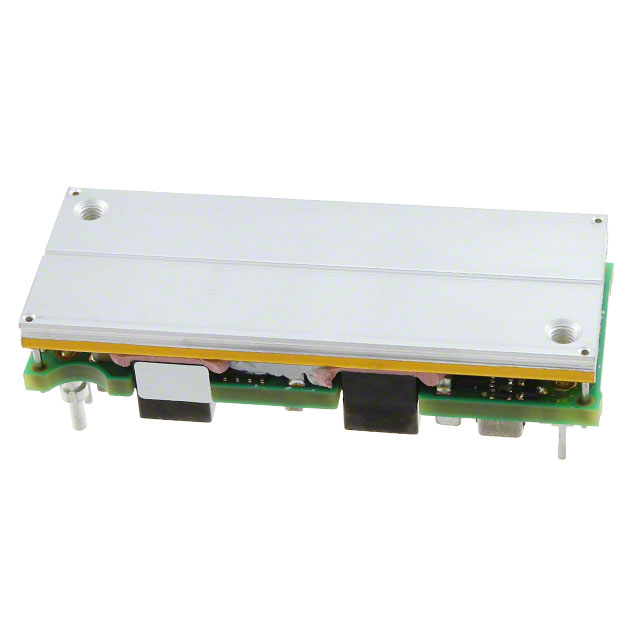

EHHD010 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 12V 120W
| Part | Voltage - Input (Max) [Max] | Package / Case | Efficiency | Mounting Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Power (Watts) | Voltage - Input (Min) [Min] | Type | Control Features | Number of Outputs | Voltage - Output 1 | Applications | Voltage - Isolation | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | 75 V | 8-DIP Module 1/8 Brick | 93 % | Through Hole | OCP OTP OVP Remote On/Off UVLO | 85 °C | -40 C | 2.3 in | 58.4 mm | 0.35 in | 22.9 mm | 8.9 mm | 0.9 in | 120 W | 18 V | Isolated Module | Active Low Enable | 1 | 12 V | ITE (Commercial) | 2250 VDC | 10 A | |||
 OmniOn Power™ | 75 V | 8-DIP Module 1/8 Brick | 93 % | Through Hole | OCP OTP OVP Remote On/Off UVLO | 85 °C | -40 C | 2.3 in | 58.4 mm | 0.5 in | 0.9 in | 120 W | 18 V | Isolated Module | Active Low Enable | 1 | 12 V | ITE (Commercial) | 2250 VDC | 10 A | 22.9 mm | 12.7 mm | |||
 OmniOn Power™ | 75 V | Eighth Brick | 93 % | Through Hole | OCP OTP OVP Remote On/Off UVLO | 105 C | -40 °C | 2.3 in | 58.4 mm | 0.5 in | 0.9 in | 120 W | 18 V | Isolated Module | 1 | 12 V | ITE (Commercial) | 2250 VDC | 10 A | 22.8 mm | 12.7 mm | Eighth Brick | |||
 OmniOn Power™ | 75 V | 8-DIP Module 1/8 Brick | 93 % | Through Hole | OCP OTP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | 2.3 in | 58.4 mm | 0.35 in | 22.9 mm | 8.9 mm | 0.9 in | 120 W | 18 V | Isolated Module | Active Low Enable | 1 | 12 V | ITE (Commercial) | 2250 VDC | 10 A | |||
 OmniOn Power™ | 75 V | Eighth Brick | 93 % | Through Hole | OCP OTP OVP Remote On/Off UVLO | 105 C | -40 °C | 2.3 in | 58.4 mm | 0.5 in | 0.9 in | 120 W | 18 V | Isolated Module | 1 | 12 V | ITE (Commercial) | 2250 VDC | 10 A | 22.8 mm | 12.7 mm | Eighth Brick | |||
OmniOn Power™ | 75 V | Eighth Brick | 93 % | Through Hole | OCP OTP OVP Remote On/Off UVLO | 105 C | -40 °C | 2.3 in | 58.4 mm | 0.5 in | 0.9 in | 120 W | 18 V | Isolated Module | 1 | 12 V | ITE (Commercial) | 2250 VDC | 10 A | 22.8 mm | 12.7 mm | Eighth Brick | |||
OmniOn Power™ | 75 V | Eighth Brick | 93 % | Through Hole | OCP OTP OVP Remote On/Off UVLO | 105 C | -40 °C | 2.3 in | 58.4 mm | 0.5 in | 0.9 in | 120 W | 18 V | Isolated Module | 1 | 12 V | ITE (Commercial) | 2250 VDC | 10 A | 22.8 mm | 12.7 mm | Eighth Brick | |||
OmniOn Power™ | 75 V | 8-DIP Module 1/8 Brick | 93 % | Through Hole | OCP OTP OVP Remote On/Off UVLO | 85 °C | -40 C | 2.3 in | 58.4 mm | 0.5 in | 0.9 in | 120 W | 18 V | Isolated Module | Active Low Enable | 1 | 12 V | ITE (Commercial) | 2250 VDC | 10 A | 22.9 mm | 12.7 mm | |||
OmniOn Power™ | 75 V | 8-DIP Module 1/8 Brick | 93 % | Through Hole | OCP OTP OVP Remote On/Off UVLO | 85 °C | -40 C | 2.3 in | 58.4 mm | 0.35 in | 22.9 mm | 8.9 mm | 0.9 in | 120 W | 18 V | Isolated Module | Active Low Enable | 1 | 12 V | ITE (Commercial) | 2250 VDC | 10 A | |||
OmniOn Power™ | 75 V | 8-DIP Module 1/8 Brick | 93 % | Through Hole | OCP OTP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | 2.3 in | 58.4 mm | 0.35 in | 22.9 mm | 8.9 mm | 0.9 in | 120 W | 18 V | Isolated Module | Active Low Enable | 1 | 12 V | ITE (Commercial) | 2250 VDC | 10 A |
