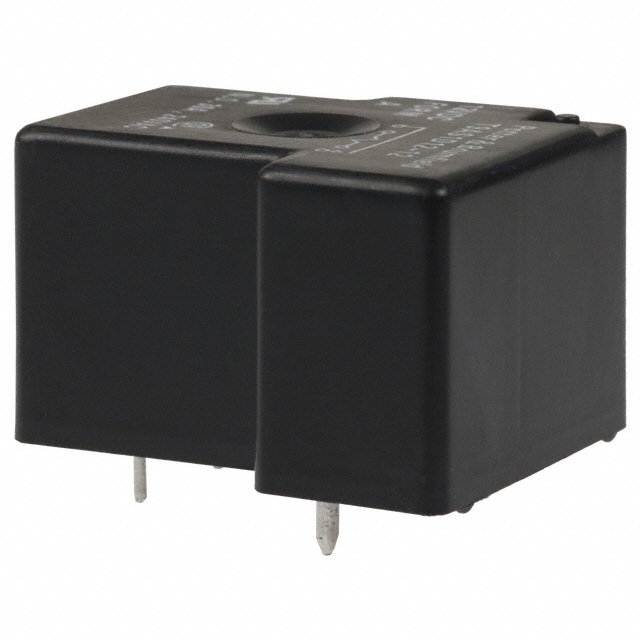

T9AS5 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPDT 20A 5V
| Part | Coil Resistance | Coil Voltage | Must Operate Voltage | Contact Rating (Current) | Mounting Type | Coil Current | Contact Form | Operate Time | Coil Insulation | Contact Material | Load - Max Switching | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Switching Voltage [Max] | Must Release Voltage | Seal Rating | Release Time | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 25 Ohms | 5 VDC | 3.75 VDC | 20 A | Through Hole | 200 mA | SPDT (1 Form C) | 15 ms | Class F | Silver Tin Oxide Indium Oxide (AgSnOInO) | 5540 VA | PC Pin Quick Connect - 0.250" (6.3mm) | -55 C | 85 °C | Non Latching | 277 VAC | 0.5 VDC | Sealed - Fully | 15 ms | General Purpose |
TE Connectivity AMP Connectors | 22 VDC | 16.5 VDC | 20 A | Through Hole | SPDT (1 Form C) | 15 ms | Class F | Silver Cadmium Oxide (AgCdO) | 5540 VA | PC Pin Quick Connect - 0.250" (6.3mm) | -55 C | 85 °C | Non Latching | 277 VAC | 2.2 VDC | Sealed - Fully | 15 ms | General Purpose | ||
TE Connectivity AMP Connectors | 324 Ohms | 18 VDC | 13.5 VDC | 20 A | Through Hole | SPDT (1 Form C) | 15 ms | Class F | 5540 VA | PC Pin | -55 C | 85 °C | Non Latching | 277 VAC | 1.8 VDC | Sealed - Fully | 15 ms | General Purpose | ||
 TE Connectivity AMP Connectors | 25 Ohms | 5 VDC | 3.75 VDC | 20 A | Through Hole | 200 mA | SPDT (1 Form C) | 15 ms | Class F | Silver Tin Oxide Indium Oxide (AgSnOInO) | 5540 VA | PC Pin | -55 C | 85 °C | Non Latching | 277 VAC | 0.5 VDC | Sealed - Fully | 15 ms | General Purpose |
TE Connectivity AMP Connectors | 144 Ohms | 12 VDC | 9 VDC | 20 A | Through Hole | 83.3 mA | SPDT (1 Form C) | 15 ms | Class F | Silver Tin Oxide Indium Oxide (AgSnOInO) | 5540 VA | PC Pin Quick Connect - 0.250" (6.3mm) | -55 C | 85 °C | Non Latching | 277 VAC | 1.2 VDC | Sealed - Fully | 15 ms | General Purpose |
TE Connectivity AMP Connectors | 576 Ohms | 24 VDC | 18 VDC | 20 A | Through Hole | 41.7 mA | SPDT (1 Form C) | 15 ms | Class F | Silver Tin Oxide Indium Oxide (AgSnOInO) | 5540 VA | PC Pin Quick Connect - 0.250" (6.3mm) | -55 C | 85 °C | Non Latching | 277 VAC | 2.4 VDC | Sealed - Fully | 15 ms | General Purpose |
 TE Connectivity AMP Connectors | 484 Ohms | 22 VDC | 16.5 VDC | 20 A | Through Hole | 45.5 mA | SPDT (1 Form C) | 15 ms | Class F | Silver Cadmium Oxide (AgCdO) | 5540 VA | PC Pin | -55 C | 85 °C | Non Latching | 277 VAC | 2.2 VDC | Sealed - Fully | 15 ms | General Purpose |
