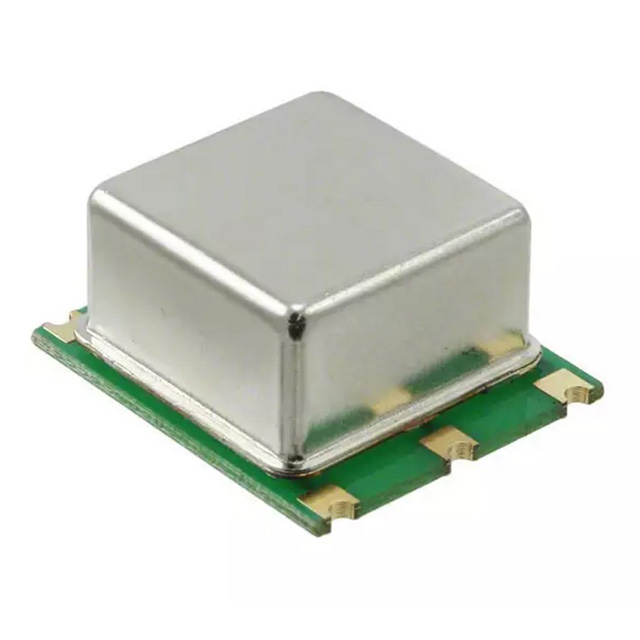

ECOC-2522 Series

Manufacturer: ECS Inc.

Catalog

OCXO OSCILLATORS 12.8MHZ 5V 10PPB -20C +70C

Part	Output	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency	Base Resonator [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Frequency Stability	Package / Case	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Voltage - Supply
ECS Inc. ECOC-2522-12.800-5GS	Sine Wave	1 in	0.87 in	25.4 mm	22.1 mm	12.8 MHz	Crystal	-20 ░C	70 °C	10 ppb	6-SMD No Lead 5 Leads	25.4	5-SMD	22.1	Surface Mount	12.4 mm	0.488 in	OCXO
ECS Inc. ECOC-2522-38.400-3HS	Sine Wave	1 in	0.87 in	25.4 mm	22.1 mm	38.4 MHz	Crystal	-40 C	75 ░C	30 ppb	6-SMD No Lead 5 Leads	25.4	5-SMD	22.1	Surface Mount	12.4 mm	0.488 in	OCXO	3.3 V
ECS Inc. ECOC-2522-16.384-3FS	Sine Wave	1 in	0.87 in	25.4 mm	22.1 mm	16.384 MHz	Crystal	0 °C	50 °C	5 ppb	6-SMD No Lead 5 Leads	25.4	5-SMD	22.1	Surface Mount	12.4 mm	0.488 in	OCXO	3.3 V
ECS Inc. ECOC-2522-20.000-5GC	CMOS	1 in	0.87 in	25.4 mm	22.1 mm	20 MHz	Crystal	-20 ░C	70 °C	10 ppb	6-SMD No Lead 5 Leads	25.4	5-SMD	22.1	Surface Mount	12.4 mm	0.488 in	OCXO
ECS Inc. ECOC-2522-100.000-3FS	Sine Wave	1 in	0.87 in	25.4 mm	22.1 mm	100 MHz	Crystal	0 °C	50 °C	5 ppb	6-SMD No Lead 5 Leads	25.4	5-SMD	22.1	Surface Mount	12.4 mm	0.488 in	OCXO	3.3 V
ECS Inc. ECOC-2522-20.000-3FC	CMOS	1 in	0.87 in	25.4 mm	22.1 mm	20 MHz	Crystal	0 °C	50 °C	5 ppb	6-SMD No Lead 5 Leads	25.4	5-SMD	22.1	Surface Mount	12.4 mm	0.488 in	OCXO	3.3 V
ECS Inc. ECOC-2522-16.384-3FC	CMOS	1 in	0.87 in	25.4 mm	22.1 mm	16.384 MHz	Crystal	0 °C	50 °C	5 ppb	6-SMD No Lead 5 Leads	25.4	5-SMD	22.1	Surface Mount	12.4 mm	0.488 in	OCXO	3.3 V
ECS Inc. ECOC-2522-13.000-5FS	Sine Wave	1 in	0.87 in	25.4 mm	22.1 mm	13 MHz	Crystal	0 °C	50 °C	5 ppb	6-SMD No Lead 5 Leads	25.4	5-SMD	22.1	Surface Mount	12.4 mm	0.488 in	OCXO
ECS Inc. ECOC-2522-40.000-3FS	Sine Wave	1 in	0.87 in	25.4 mm	22.1 mm	40 MHz	Crystal	0 °C	50 °C	5 ppb	6-SMD No Lead 5 Leads	25.4	5-SMD	22.1	Surface Mount	12.4 mm	0.488 in	OCXO	3.3 V
ECS Inc. ECOC-2522-38.400-3FS	Sine Wave	1 in	0.87 in	25.4 mm	22.1 mm	38.4 MHz	Crystal	0 °C	50 °C	5 ppb	6-SMD No Lead 5 Leads	25.4	5-SMD	22.1	Surface Mount	12.4 mm	0.488 in	OCXO	3.3 V
