JS0304PP Series

Catalog

SWITCH PIANO DIP SPST 0.025A 24V

Part	Length	Length	Electrical Life	Mechanical Life	Body Material	Actuator Type	Number of Positions	Washable	Termination Style	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Current Rating (Amps)	Voltage Rating	Circuit	Actuator Level	Contact Material	Mounting Type
NKK Switches JS0304PP4	0.446 in	11.33 mm	2000 Steps	2000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	Piano	4		PC Pin	0.362 in	9.2 mm	2.54 mm	0.1 "	-25 °C	70 °C	Gold	25 mA	24 VDC	SPST	Raised	Phosphor Bronze	Right Angle Through Hole

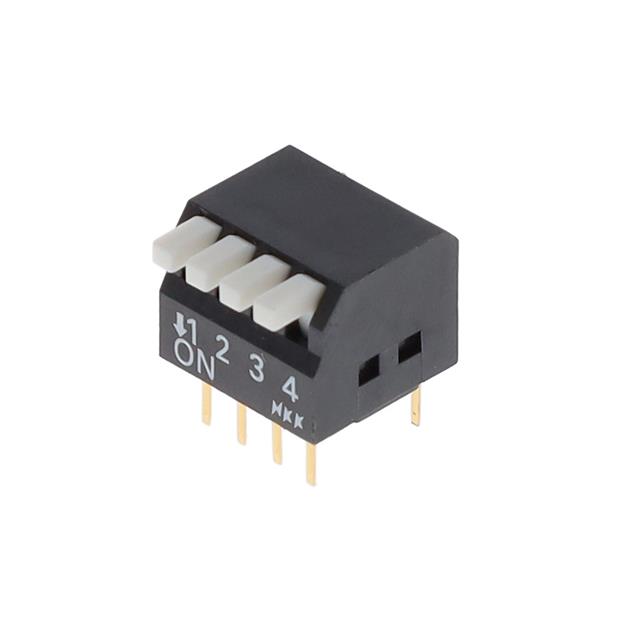

NKK Switches JS0304PP4-S	0.446 in	11.33 mm	2000 Steps	2000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	Piano	4		PC Pin	0.362 in	9.2 mm	2.54 mm	0.1 "	-25 °C	70 °C	Gold	25 mA	24 VDC	SPST	Raised	Phosphor Bronze	Right Angle Through Hole
